- GIGABYTE
Preț
€178 35 / 348 82 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.gigabyte.com/se/Motherboard/B860M-GAMING-X-WIFI6E-rev-1x
Socket
Intel® B860 Express Chipset
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
CPU's supported
LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

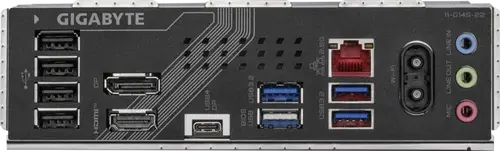

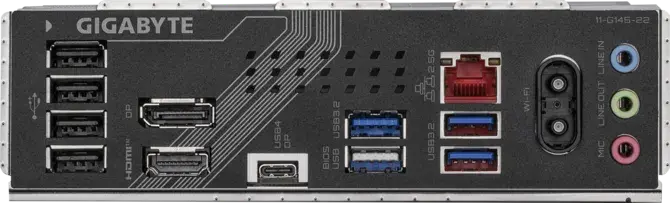

Back Panel Connectors:
1 x HDMI port
1 x DisplayPort
1 x USB4® USB Type-C® port (DisplayPort)
3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Wi-Fi 6E (802.11ax), Tri-Band (2.4 / 5 / 6 GHz), 160 MHz
Bluetooth
Bluetooth 5.3
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX
OS
Support for Windows 11 64-bit
Dimensions
24.4cm x 24.4cm
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | Intel® B860 Express Chipset |
| Vendor_url | https://www.gigabyte.com/se/Motherboard/B860M-GAMING-X-WIFI6E-rev-1x |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| CPU's supported | L3 cache varies with CPU |
| CPU's supported | (Go to GIGABYTE's website for the latest CPU support list.) |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | Support for DDR5 9200(O.C)/ 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules |
| Form Factor | Micro ATX |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| Dimensions | 24.4cm x 24.4cm |
| Wireless | Wi-Fi 6E (802.11ax), Tri-Band (2.4 / 5 / 6 GHz), 160 MHz |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | Support for up to triple-display at the same time |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| Graphics | * Support for DisplayPort 2.1 version. |
| Graphics | - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 4 x SATA 6Gb/s connectors |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) |
| Bluetooth | BLUETOOTH 5.3 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x system fan/water cooling pump header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x Q-Flash Plus button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x system fan header |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x CPU fan/water cooling pump header |
| Connectors | 3 x addressable RGB Gen2 LED strip headers |
| Connectors | 1 x DisplayPort |
| Connectors | 1 x HDMI port |
| Connectors | 2 x antenna connectors (2T2R) |
| Connectors | Back Panel Connectors: |
| Connectors | 3 x USB 3.2 Gen 1 ports |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| Connectors | 5 x USB 2.0/1.1 ports |
| Connectors | 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only) |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) |
| Connectors | 1 x 8-pin ATX 12V power connectors |
| Connectors | 1 x USB4® USB Type-C® port (DisplayPort) |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
| USB | Chipset+2 USB 2.0 Hubs: |
| USB | - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| USB | - 1 x USB4® USB Type-C® port on the back panel |
| USB | - 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers) |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

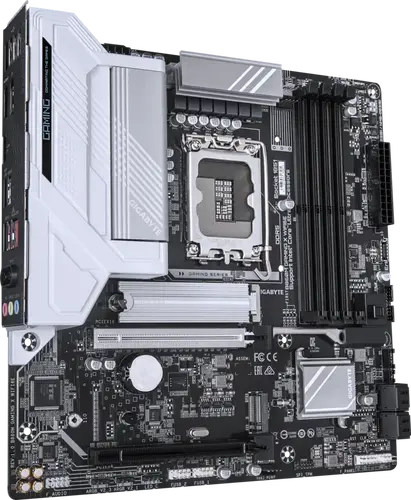

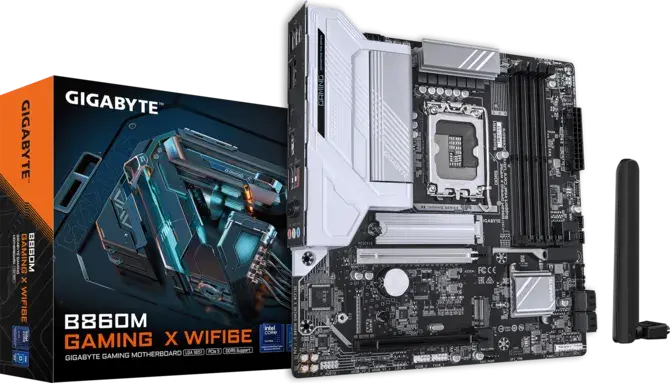

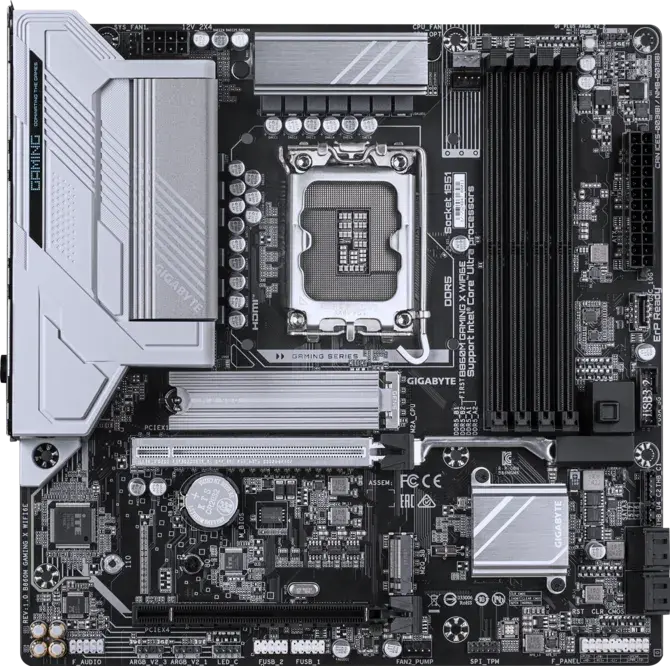

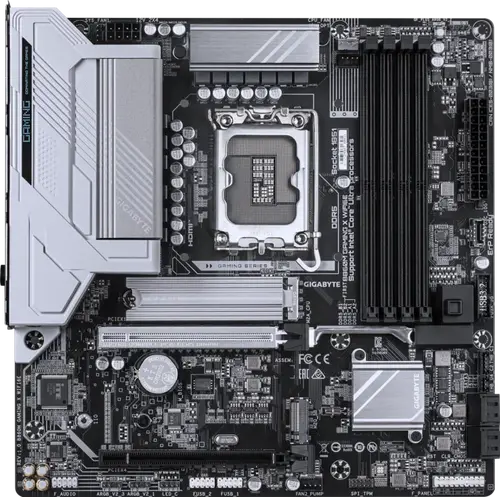

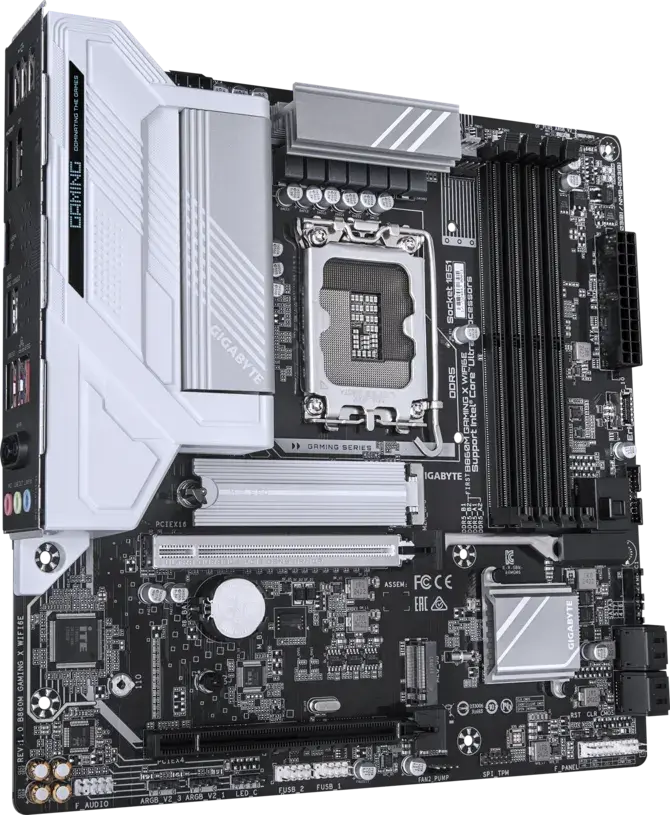

GIGABYTE B860M GAMING X WIFI6E – компактна геймърска дънна платка за Intel Core Ultra с Wi-Fi 6E
GIGABYTE B860M GAMING X WIFI6E е стабилна основа за геймърски компютър с процесор Intel Core Ultra (Series 2) на сокет LGA 1851. Платката е с чипсет Intel B860 и поддържа бърза DDR5 памет, 2.5 Gbps мрежа и Wi-Fi 6E. Във формат microATX тя се побира в компактни кутии и оставя място за бъдещи ъпгрейди.
Ключови предимства
- Готова за Intel Core Ultra 200S – Сокетът LGA 1851 и чипсетът Intel B860 поддържат най-новите настолни процесори на Intel, така че можете да сглобите модерна и ефективна система.
- Поддръжка на DDR5 – Четири DIMM слота побират до 256 GB DDR5 RAM. Това е предостатъчно за игри, създаване на съдържание и работа с много програми едновременно.
- Безжична връзка Wi-Fi 6E – Честотата 6 GHz дава по-голям капацитет и по-малко смущения от по-старите Wi-Fi стандарти, така че можете да играете онлайн плавно и без кабел.
- 2.5 Gbps LAN – Кабелната мрежа е по-бърза от стандартния гигабитов Ethernet. Така големите файлове се изтеглят бързо, а закъснението в онлайн игрите остава ниско.
- Компактен формат microATX – Платката се побира в малки и средни кутии и е отличен избор за геймърски компютър, който не заема много място.
- Надеждност от GIGABYTE – Серията GAMING е проектирана за стабилно захранване и лесна настройка чрез BIOS и софтуера на GIGABYTE.
Технически спецификации
| Характеристика | Стойност |
|---|---|
| Производител | GIGABYTE |
| Модел | B860M GAMING X WIFI6E |
| Сокет | Intel LGA 1851 |
| Поддържани процесори | Настолни процесори Intel Core Ultra (Series 2) |
| Чипсет | Intel B860 |
| Форм фактор | microATX (mATX) |
| Тип памет | DDR5 |
| Слотове за памет | 4 x DIMM |
| Максимална памет | 256 GB |
| Безжична мрежа | Wi-Fi 6E |
| LAN | 2.5 Gbps Ethernet |
| EAN | 4719331867133 |
Какво има в кутията
- Дънна платка GIGABYTE B860M GAMING X WIFI6E
- Wi-Fi антена
- SATA кабел(и)
- Винт(ове) за M.2
- Кратко ръководство за инсталация
