- ASUS
- Nou
Preț
€216 84 / 424 10 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/csm/prime-b850-plus-csm/?utm_source=chatgpt.com
Part number / Product code
90MB1LC0-M0EAY0
Model
PRIME B850-PLUS-CSM
Socket
AMD AM5
Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Supports up to AMD 170W CPU
Chipset
AMD B850
Expansion slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Memory type
4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

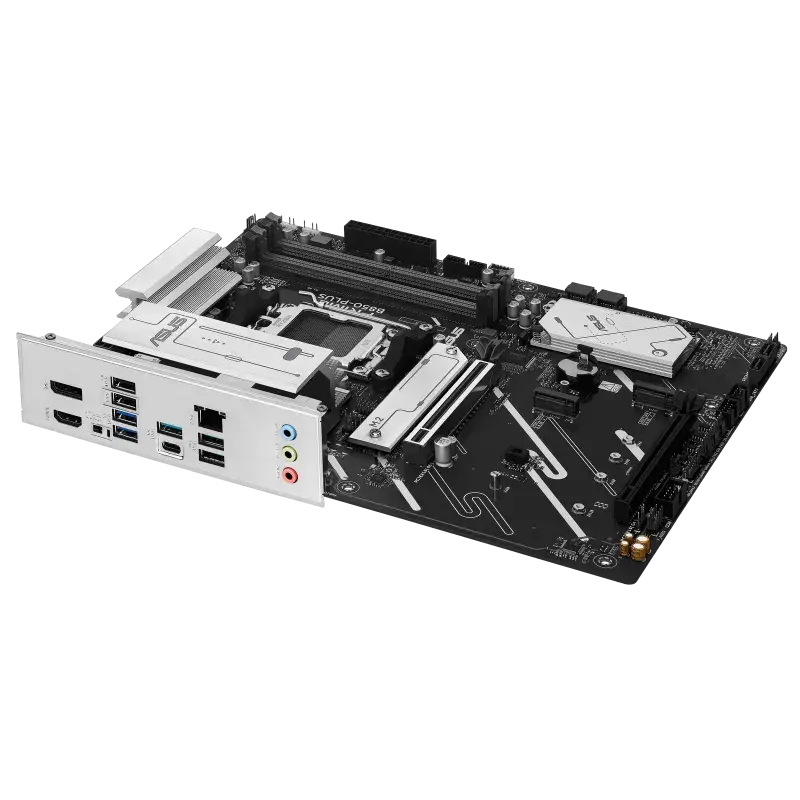

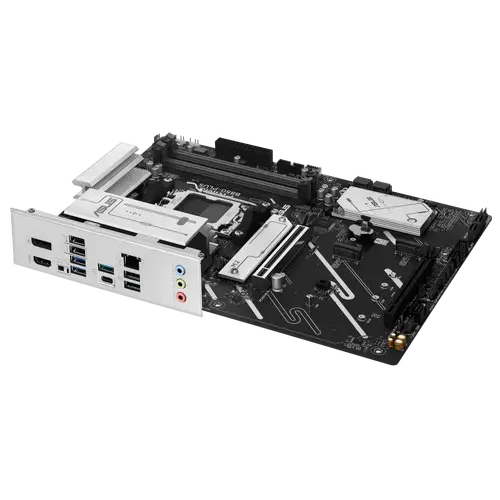

Rear panel I/O
1 x USB 10Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
USB
Rear USB (Total 8 ports)
4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt™ (USB4®) header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Lan
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
OS
Windows® 11, Windows® 10 64-bit
Other
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Dimensions
30.5 cm x 24.4 cm
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Socket | AMD AM5 |
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/csm/prime-b850-plus-csm/?utm_source=chatgpt.com |
| Chipset | AMD B850 |
| OS | Windows® 11, Windows® 10 64-bit |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| CPU's supported | Supports up to AMD 170W CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Memory type | ASUS Enhanced Memory Profile (AEMP) |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM |
| Form Factor | ATX |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 2 x USB 2.0 ports (2 x Type-A) |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x BIOS FlashBack™ button |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 2 x USB 5Gbps ports (2 x Type-A) |
| Rear panel I/O | 3 x USB 10Gbps ports (3 x Type-A) |
| Rear panel I/O | 1 x USB 10Gbps port (1 x USB Type-C®) |
| LAN | ASUS LANGuard |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Model | PRIME B850-PLUS-CSM |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Expansion Slots | AMD Ryzen™ 8000 Series Desktop Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| Expansion Slots | AMD B850 Chipset |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (support x4 mode) |
| Dimensions | 30.5 cm x 24.4 cm |
| Graphics | 1 x DisplayPort** |
| Graphics | * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
| Graphics | *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Graphics | 1 x HDMI™ port*** |
| Graphics | ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. |
| Other | ASUS 5X PROTECTION III |
| Other | - DIGI+ VRM |
| Other | - LANGuard |
| Other | - Overvoltage Protection |
| Other | - SafeSlot |
| Other | - Stainless-Steel Back I/O |
| Other | ASUS Q-Design |
| Other | - Q-DIMM |
| Other | - Q-LED Core |
| Other | - Q-Slot |
| Other | ASUS EZ DIY |
| Other | ASUS Thermal Solution |
| Other | Aura Sync |
| Other | - Addressable RGB Gen 2 headers |
| Other | - Q-Dashboard |
| Other | - Flexible M.2 heatsink |
| Other | - VRM heatsink design |
| Other | - BIOS FlashBack™ button |
| Other | - BIOS FlashBack™ LED |
| Other | - Pre-mounted I/O shield |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | * Specifications vary by CPU types. |
| Storage | AMD RAIDXpert2 Technology |
| Storage | Ryzen™ 9000 Series Processors: RAID 0/1/5/10 |
| Storage | Ryzen™ 8000 Series Processors: RAID 0/1 |
| Storage | Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* |
| Storage | AMD B850 Chipset |
| Storage | M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x chassis intrusion header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x 10-1 pin System Panel header |
| Connectors | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | 1 x SPI TPM header (14-1 pin) |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 1 x Thunderbolt™ (USB4®) header |
| Connectors | 1 x USB 5Gbps connector (supports USB Type-C® ) |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 3 x M.2 slots (Key M) |
| Connectors | 4 x 4-pin Chassis Fan headers |
| Connectors | 1 x Front Panel Audio header (F_AUDIO) |
| Connectors | 1 x 8-pin +12V CPU Power connectors |
| Connectors | 1 x 4-pin +12V CPU Power connectors |
| Connectors | 3 x Addressable RGB Gen 2 headers |
| USB | 2 x USB 2.0 ports (2 x Type-A) |
| USB | Front USB (Total 7 ports) |
| USB | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB | * USB Type-C® power delivery output: max. 5V/3A |
| USB | Rear USB (Total 8 ports) |
| USB | 2 x USB 5Gbps ports (2 x Type-A) |
| USB | 1 x USB 5Gbps connector (supports USB Type-C®) |
| USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| USB | 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C®) |
| Part number / Product code | 90MB1LC0-M0EAY0 |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Chipset | AMD B850 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| M.2 Slots (count) | 3 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
ASUS PRIME B850-PLUS-CSM – надеждна AM5 платформа за бизнеса и ежедневни конфигурации
ASUS PRIME B850-PLUS-CSM е ATX дънна платка с чипсет AMD B850 за процесори AMD Ryzen със сокет AM5. Поддържа DDR5 памет, PCIe 5.0 и 2.5 Gb Ethernet. Тъй като е от серията Corporate Stable Model (CSM), се предлага по-дълго време и работи с инструментите на ASUS за управление на бизнес системи. Затова е подходяща за офис компютри, системни интегратори и работни станции, които трябва да служат дълги години.
Ключови предимства
- Платформа AMD AM5 – Поддържа настолните процесори AMD Ryzen от серии 7000, 8000 и 9000 и ви позволява да надграждате бъдещи поколения на същия сокет.
- Бърза DDR5 памет – Четири слота за двуканална DDR5 памет с поддръжка на AMD EXPO. Високата пропускателна способност помага при многозадачност и тежки приложения.
- Поддръжка на PCIe 5.0 – Готова е за най-новите видеокарти и NVMe дискове.
- Три M.2 слота – Място за няколко бързи NVMe SSD устройства, като един от слотовете е PCIe 5.0 за най-бързите дискове.
- 2.5 Gb Ethernet – Кабелна мрежа, два и половина пъти по-бърза от стандартния гигабитов LAN.
- Corporate Stable Model – По-дълга наличност, стабилна конфигурация и поддръжка на ASUS Control Center Express за отдалечено управление. Удобно е за фирми, които инсталират много еднакви компютри.
- Лесен монтаж – Решения на ASUS като закрепване на M.2 и освобождаване на PCIe слота без инструменти правят сглобяването и надграждането бързо и лесно.
Технически спецификации
| Характеристика | Стойност |
|---|---|
| Производител | ASUS |
| Модел | PRIME B850-PLUS-CSM |
| Партиден номер | 90MB1LC0-M0EAY0 |
| Сокет | AMD AM5 |
| Чипсет | AMD B850 |
| Поддържани процесори | AMD Ryzen серии 7000 / 8000 / 9000 за настолни компютри |
| Форм фактор | ATX |
| Тип памет | DDR5, двуканална, с поддръжка на AMD EXPO |
| Слотове за памет | 4 x DIMM |
| Разширения | PCIe 5.0 x16 слот за видеокарта |
| M.2 слотове | 3 (вкл. 1 x PCIe 5.0) |
| Мрежа | 2.5 Gb Ethernet |
| Безжична връзка | Няма (версия без Wi-Fi) |
| Видеоизходи | HDMI, DisplayPort (за процесори с вградена графика) |
| Серия | ASUS PRIME – Corporate Stable Model (CSM) |
| EAN | 4711387982037 |
Какво има в кутията
- Дънна платка ASUS PRIME B850-PLUS-CSM
- Документация / ръководство за бърз старт
- Аксесоари за монтаж (SATA кабели, елементи за закрепване на M.2)
Abonați-vă la newsletterul nostru
Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Metodă de plată
- Card de credit/debit
- Transfer bancar
