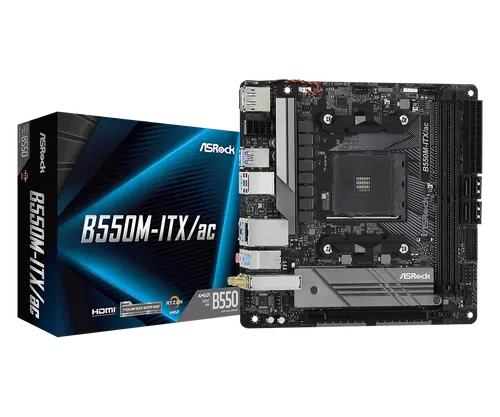

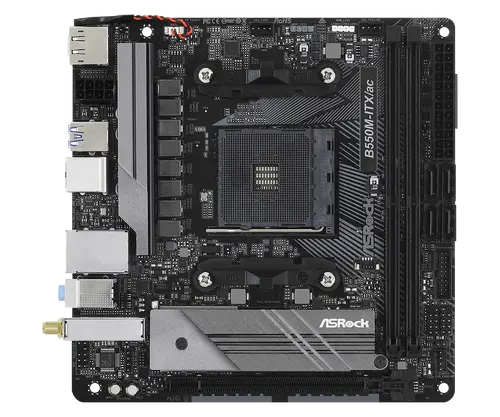

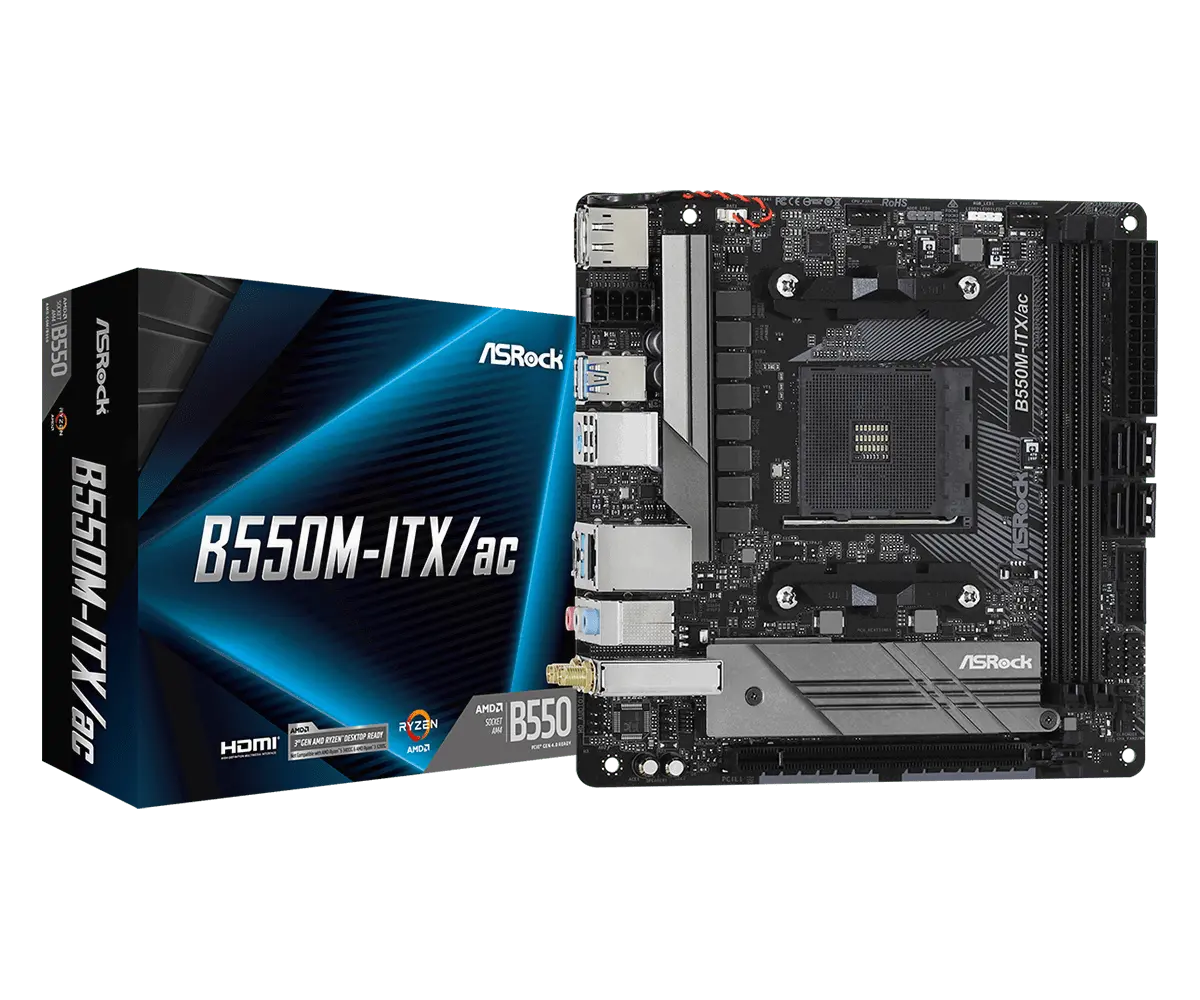

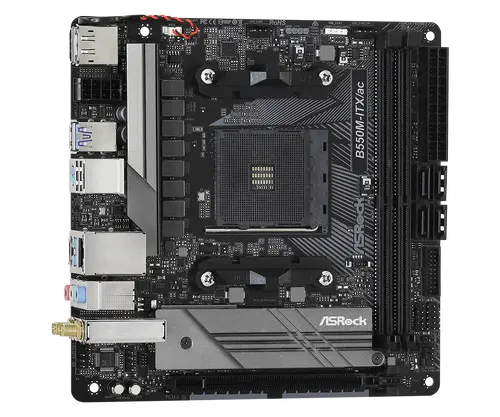

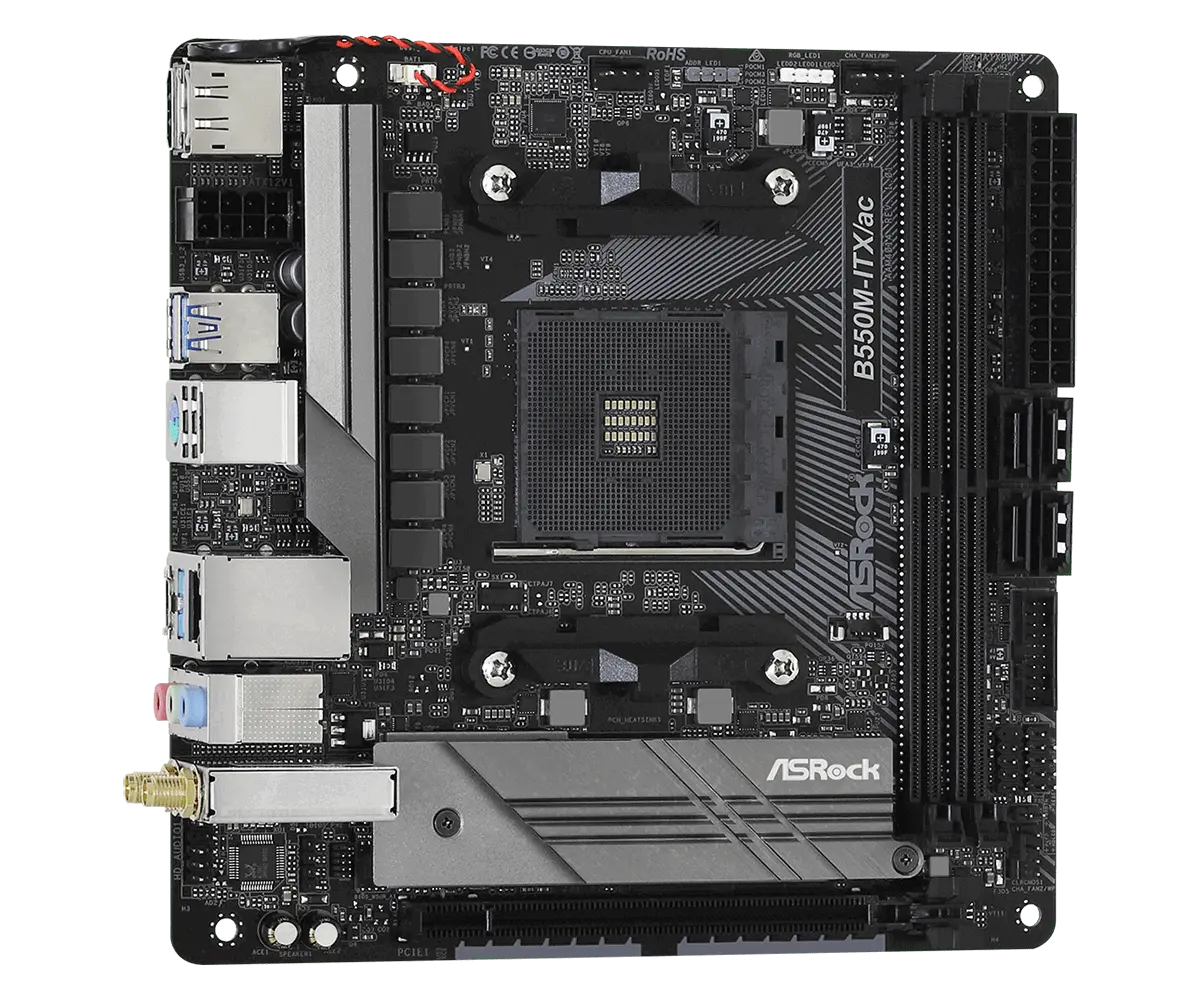

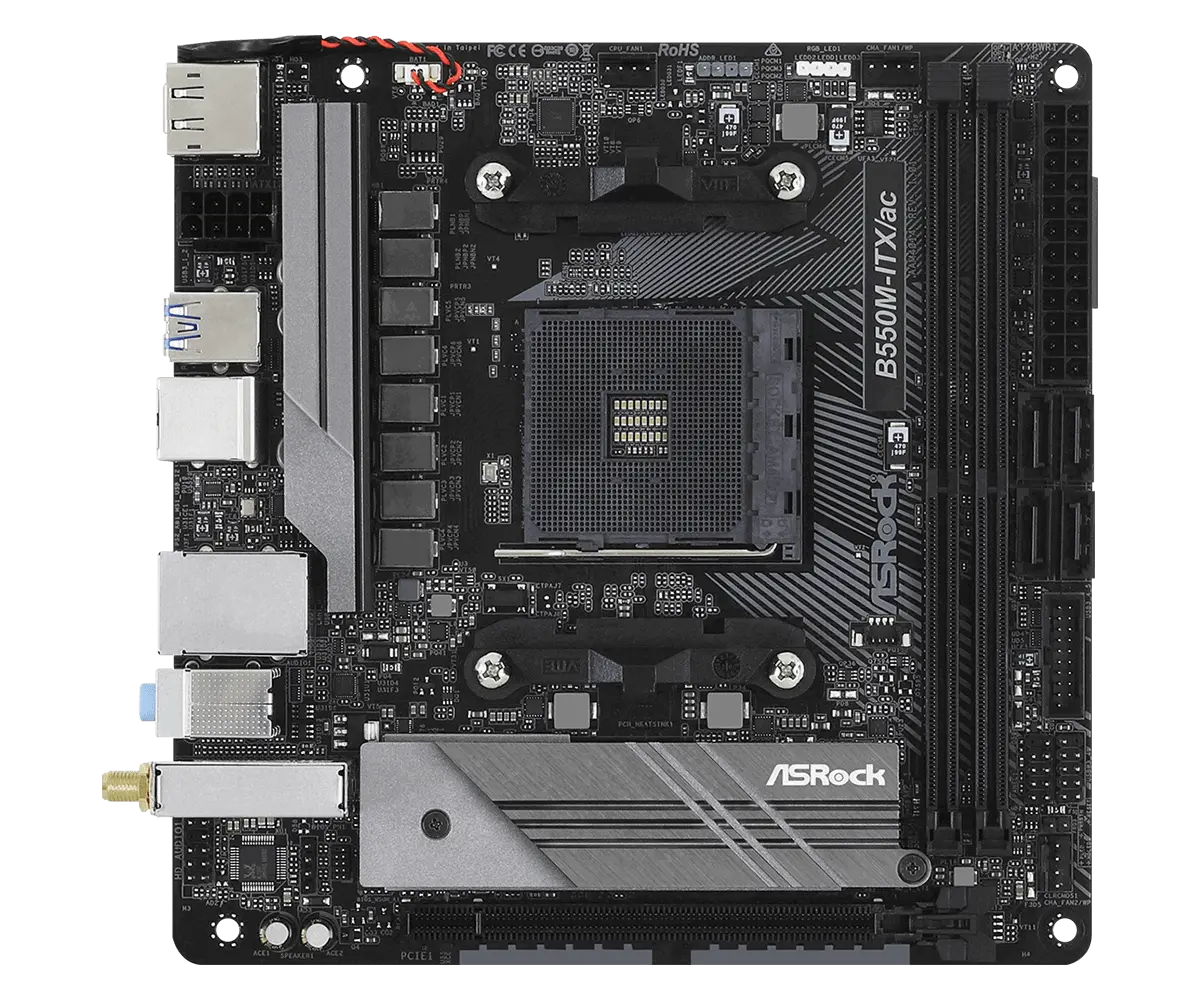

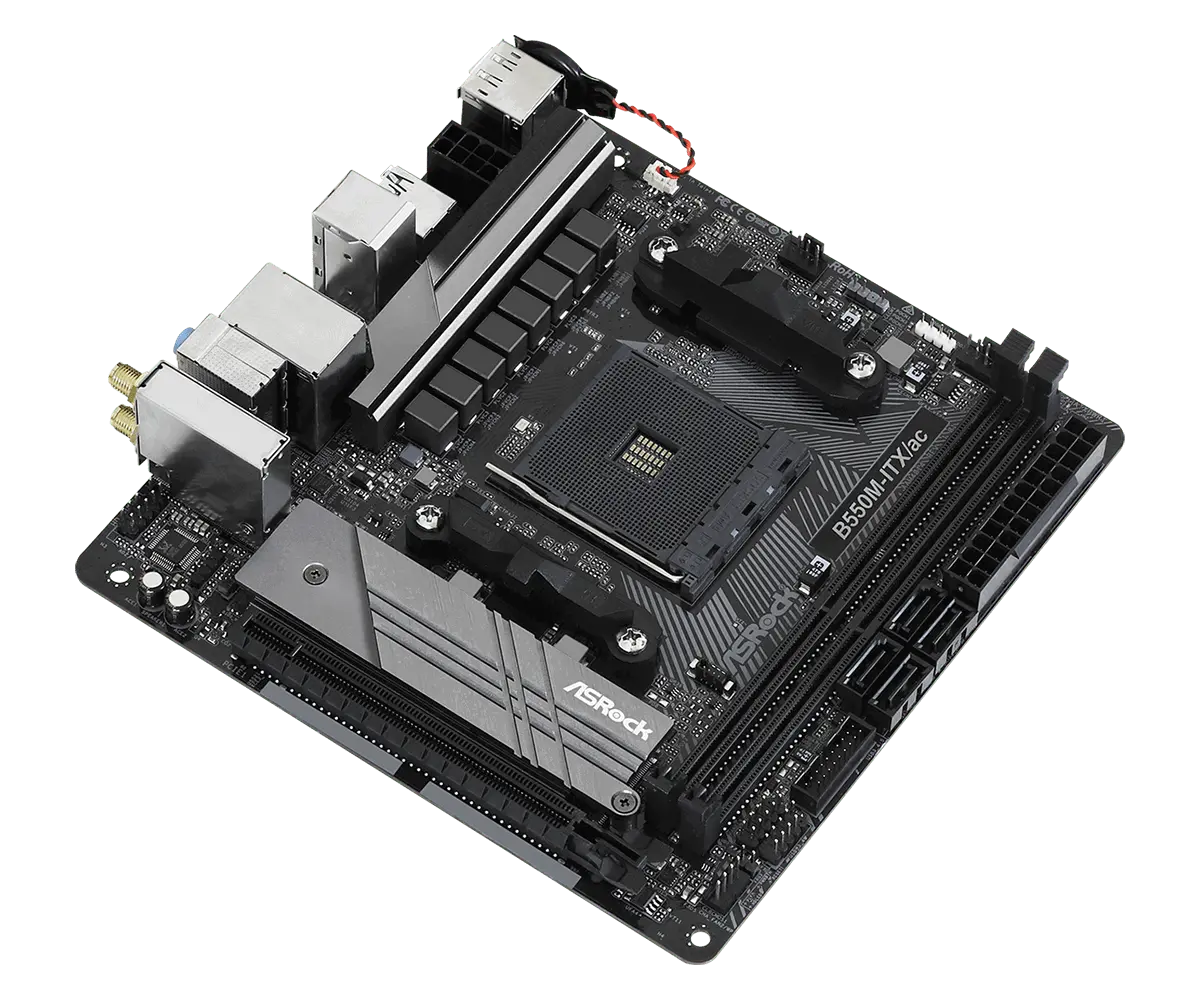

Placă de bază, ASROCK B550M-ITX/AC /AM4

  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 1
  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 2
  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 3
  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 4
  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 5
  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 6

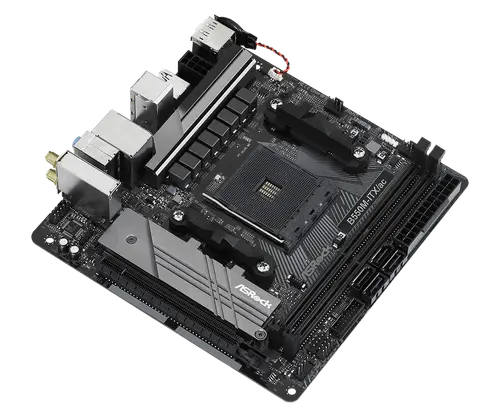

  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 7
  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 8
  • Placă de bază, ASROCK B550M-ITX/AC /AM4 - 9
  • ASROCK
Placă de bază, ASROCK B550M-ITX/AC /AM4
Preț
€118 55 / 231 86 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 16€
+2 ani: + 23€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.asrock.com/mb/AMD/B550M-ITXac/index.asp#Specification
Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft® PlayReady
Chipset
- AMD B550
Expansion slots
AMD Ryzen series CPUs (Matisse)
- 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series APUs (Renoir)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)**
Memory type
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15? Gold Contact in DIMM Slots

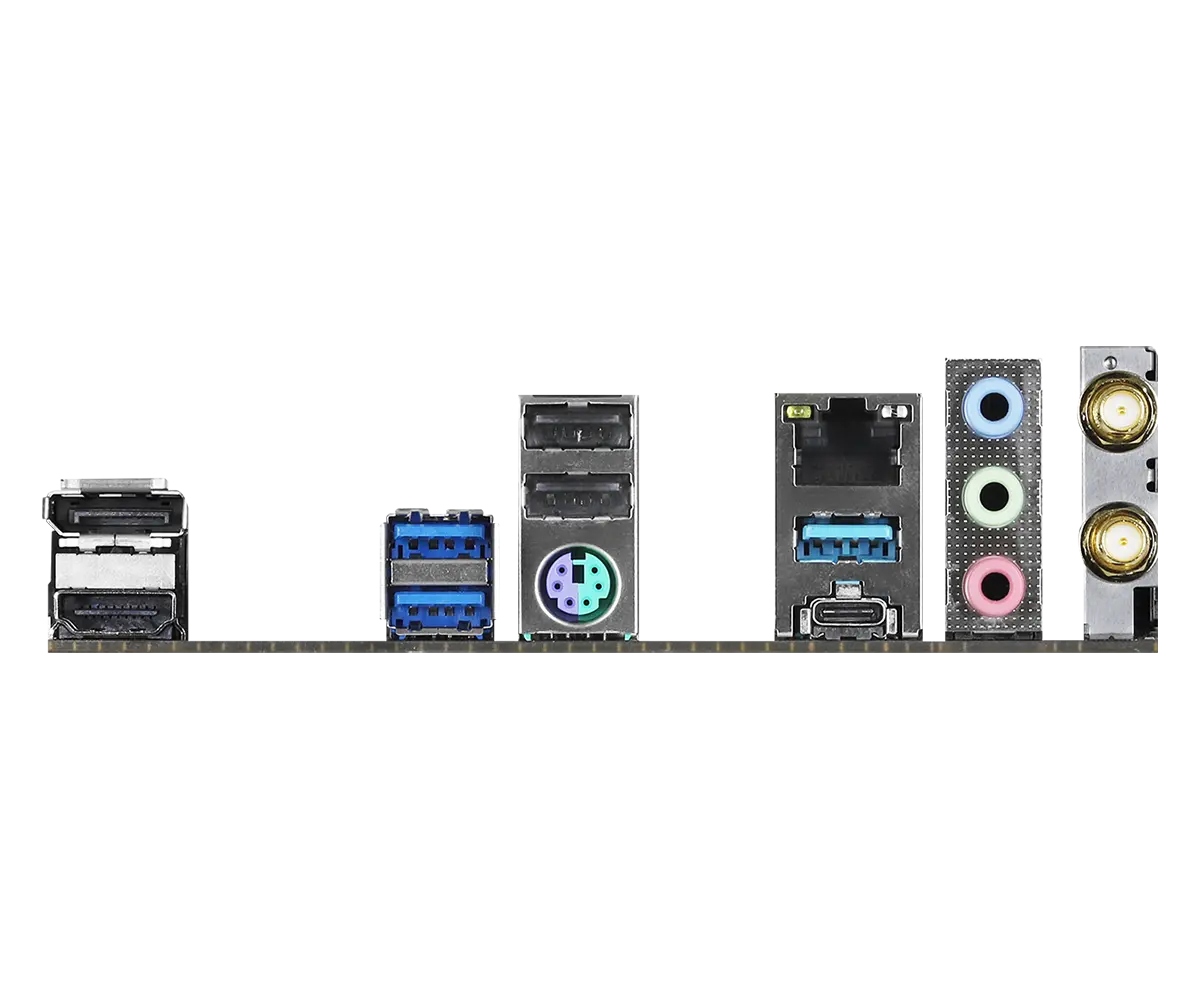

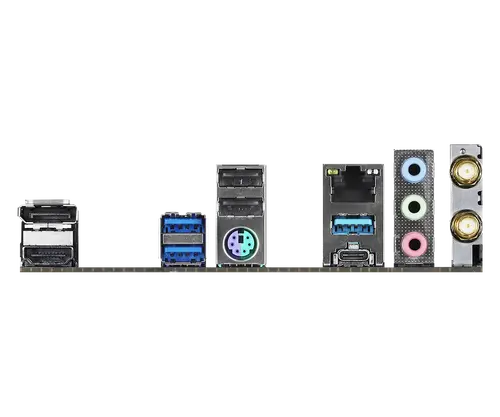

Rear panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection
Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
Form factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit
Other
- Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 + High speed class II
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
Vendor_urlhttps://www.asrock.com/mb/AMD/B550M-ITXac/index.asp#Specification
Chipset- AMD B550
OS- Microsoft® Windows® 10 64-bit
Warranty36 Months
CPU's supported- Digi Power design
CPU's supported- 8 Power Phase design
CPU's supported- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
Memory type- Dual Channel DDR4 Memory Technology
Memory type- 2 x DDR4 DIMM Slots
Memory type- Supports Extreme Memory Profile (XMP) memory modules
Memory type- 15μ Gold Contact in DIMM Slots
Memory type- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non
Memory type- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133
Memory type- Max. capacity of system memory: 64GB**
Memory type- 15? Gold Contact in DIMM Slots
Form Factor- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
Form Factor- Solid Capacitor design
Audio- Supports Surge Protection
Audio- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Rear panel I/O- 1 x PS/2 Mouse/Keyboard Port
Rear panel I/O- 1 x HDMI Port
Rear panel I/O- 2 x USB 2.0 Ports (Supports ESD Protection)
Rear panel I/O- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Rear panel I/O- HD Audio Jacks: Line in / Front Speaker / Microphone
Rear panel I/O- 2 x Antenna Ports
Rear panel I/O- 1 x DisplayPort 1.4
Rear panel I/O- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
Rear panel I/O- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN- Realtek RTL8111H
LAN- Supports Wake-On-LAN
LAN- Supports Lightning/ESD Protection
LAN- Supports Energy Efficient Ethernet 802.3az
LAN- Supports PXE
Expansion Slots- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
Expansion SlotsAMD Ryzen series CPUs (Matisse)
Expansion Slots- 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
Expansion SlotsAMD Ryzen series APUs (Renoir)
Expansion Slots- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
Graphics- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
Graphics- DirectX 12, Pixel Shader 5.0
Graphics- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Graphics- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Graphics- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Graphics- Supports HDR (High Dynamic Range) with HDMI 2.1
Graphics- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
Graphics- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
Graphics- Supports Microsoft® PlayReady
Graphics- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Graphics- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz
Other- Intel® 802.11ac WiFi Module
Other- Supports IEEE 802.11a/b/g/n/ac
Other- Supports Dual-Band (2.4/5 GHz)
Other- Supports high speed wireless connections up to 433Mbps
Other- Supports Bluetooth 4.2 + High speed class II
BIOS- 256Mb AMI UEFI Legal BIOS with GUI support
BIOS- Supports "Plug and Play"
BIOS- ACPI 5.1 compliance wake up events
BIOS- Supports jumperfree
BIOS- SMBIOS 2.3 support
BIOS- CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
I/O- 1 x PS/2 Mouse/Keyboard Port
I/O- 1 x HDMI Port
I/O- 2 x USB 2.0 Ports (Supports ESD Protection)
I/O- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
I/O- HD Audio Jacks: Line in / Front Speaker / Microphone
I/O- 1 x DisplayPort 1.4
I/O- 2 x Antenna Ports
I/O- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
I/O- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
Storage- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
Storage- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)**
Connectors- 1 x RGB LED Header*
Connectors- 1 x Addressable LED Header**
Connectors- 1 x 24 pin ATX Power Connector
Connectors- 1 x 8 pin 12V Power Connector
Connectors- 1 x Front Panel Audio Connector
Connectors- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Connectors- 1 x CPU Fan Connector (4-pin)***
Connectors- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
Connectors- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
Greutate0.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketAM4
Form FactorMini-ITX
ChipsetAMD B550
Memory TypeDDR4
Memory Slots (count)2
Max Memory (GB)64
M.2 Slots (count)1
SATA Ports (count)4
PCIe x16 Slots (count)1
Wi-Fi Built-inWi-Fi 5
LAN Speed1 Gbps
USB-C Ports (count)1
RGB LightingNo
Greutate0.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка ASRock B550M-ITX/AC Mini-ITX за AMD AM4

Изградете компактен, но мощен компютър с ASRock B550M-ITX/AC. Тази Mini-ITX дънна платка поддържа процесори AMD Ryzen 5000 серия, разполага с PCIe 4.0 за бърза графика и съхранение, както и вграден Wi-Fi 5 и Bluetooth за безпроблемна свързаност. Идеална за малки по размер конфигурации без компромис с производителността.

Ключови Предимства

  • Компактен Mini-ITX форм фактор — Подходяща за малки кутии, спестява място на бюрото, като същевременно осигурява пълна производителност.
  • PCIe 4.0 поддръжка — Съвместима с най-новите видеокарти и NVMe SSD дискове за светкавично бърз трансфер на данни.
  • Вграден Wi-Fi 5 и Bluetooth — Интегрирана безжична връзка елиминира нуждата от допълнителни карти.
  • DDR4 памет — До 64GB DDR4 RAM в два слота, с поддръжка на високоскоростен овърклок.

Технически Спецификации

СпецификацияСтойност
СокетAM4
Форм факторMini-ITX
ЧипсетAMD B550
Тип паметDDR4
Слотове за памет2
Максимална памет64 GB
M.2 слотове1
SATA портове4
PCIe x16 слотове1
Вграден Wi-FiWi-Fi 5
Скорост на LAN1 Gbps
USB-C портове1
RGB подсветкаНе

Какво има в кутията

  • Дънна платка ASRock B550M-ITX/AC
  • 2 x SATA кабела
  • Заден панел I/O
  • Wi-Fi антена
  • Ръководство за потребителя и DVD с драйвери
