- ASUS
Preț
€77 89 / 152 34 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/Motherboards/PRIME-B550M-K/specifications/
Graphics
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)
Chipset
AMD B550
Expansion slots
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1
Storage
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Memory type
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

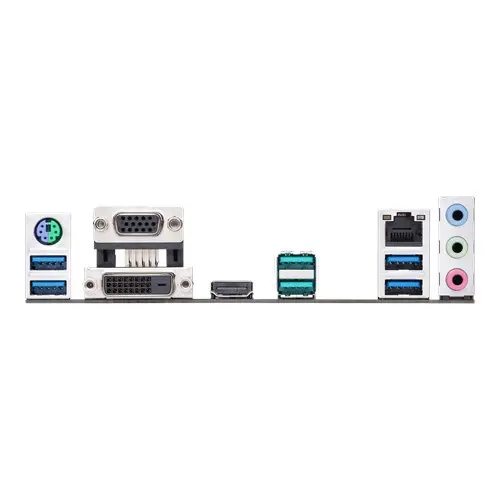

Rear panel I/O
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
Connectors
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature : - LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Lan
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS
Windows® 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asus.com/Motherboards/PRIME-B550M-K/specifications/ |
| Chipset | AMD B550 |
| OS | Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Build in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors * |
| Memory type | Dual channel memory architecture |
| Memory type | ECC Memory (ECC mode) support varies by CPU. |
| Memory type | 3rd Gen AMD Ryzen™ Processors |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * |
| Memory type | 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors |
| Memory type | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * |
| Form Factor | mATX Form Factor |
| Form Factor | 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC * |
| Audio | - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Audio | - Dedicated audio PCB layers |
| Audio | - Audio Shielding |
| Audio | - Premium Japanese audio capacitors |
| Audio | Audio Feature : - LED-illuminated design |
| Rear panel I/O | 1 x PS/2 keyboard/mouse combo port(s) |
| Rear panel I/O | 1 x D-Sub |
| Rear panel I/O | 1 x HDMI |
| Rear panel I/O | 1 x LAN (RJ45) port(s) |
| Rear panel I/O | 4 x USB 3.2 Gen 1 (blue) Type-A |
| Rear panel I/O | 3 x Audio jack(s) |
| Rear panel I/O | 1 x DVI-D |
| Rear panel I/O | 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) |
| LAN | Realtek RTL8111H 1Gb Ethernet |
| LAN | ASUS LANGuard |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode) |
| Expansion Slots | 2 x PCIe 3.0 x1 |
| Expansion Slots | 3rd Gen AMD Ryzen™ Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode) |
| Expansion Slots | 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors |
| Expansion Slots | AMD B550 Chipset |
| Graphics | 1 x D-Sub |
| Graphics | 1 x HDMI 2.1(4K@60HZ) |
| Graphics | 1 x DVI-D |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x PS/2 keyboard/mouse combo port(s) |
| I/O | 1 x D-Sub |
| I/O | 1 x HDMI |
| I/O | 1 x LAN (RJ45) port(s) |
| I/O | 4 x USB 3.2 Gen 1 (blue) Type-A |
| I/O | 3 x Audio jack(s) |
| I/O | 1 x DVI-D |
| I/O | 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) |
| Storage | Support Raid 0, 1, 10 |
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports |
| Storage | 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support |
| Storage | 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
| Storage | AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support |
| Storage | 4 x SATA 6Gb/s port(s), |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x CPU Fan connector(s) |
| Connectors | 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
| Connectors | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
| Connectors | 4 x SATA 6Gb/s connector(s) |
| Connectors | 1 x S/PDIF out header(s) |
| Connectors | 1 x 24-pin EATX Power connector(s) |
| Connectors | 1 x 8-pin EATX 12V Power connectors |
| Connectors | 1 x Front panel audio connector(s) (AAFP) |
| Connectors | 1 x Clear CMOS jumper(s) |
| Connectors | 1 x System panel connector |
| Connectors | 1 x COM port header |
| Connectors | 1 x Speaker connector |
| Connectors | 2 x Chassis Fan connector(s) |
| Connectors | 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) |
| Connectors | 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| Memory Type | DDR4 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Дънна платка ASUS PRIME B550M-K /AM4 Micro-ATX
Изградете надеждна и ефективна система с процесор AMD Ryzen, използвайки ASUS PRIME B550M-K. Тази micro-ATX дънна платка предлага стабилна производителност, цялостно охлаждане и основни функции за ежедневна работа и игри.
Ключови Предимства
- Платформа AMD AM4 — Поддържа процесори AMD Ryzen 5000/4000/3000 серия за отлична многоядрена производителност.
- Готовност за PCIe 4.0 — Един слот PCIe 4.0 x16 за най-новите видеокарти и SSD дискове.
- Два M.2 слота — Два M.2 слота (един PCIe 4.0 x4, един PCIe 3.0 x4) за изключително бързо съхранение.
- Цялостно охлаждане — Радиатор за VRM, радиатор за PCH и множество конектори за вентилатори за ефективно управление на температурата.
- ASUS 5X Protection III — Хардуерни защити за дълготрайна издръжливост.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM4 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD B550 |
| Тип памет | DDR4 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |

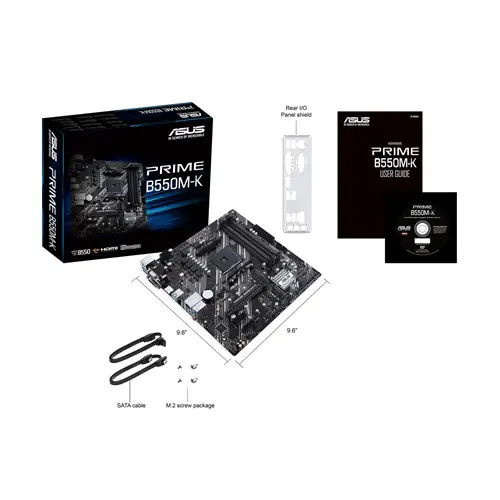

Какво има в кутията
- Дънна платка ASUS PRIME B550M-K
- 2 x SATA 6Gb/s кабела
- Заден панел за I/O
- Комплект винтове за M.2
- Поддържащ DVD диск
- Ръководство за потребителя
