Placă de bază, ASROCK B550 PRO4 /AM4

  • Placă de bază, ASROCK B550 PRO4 /AM4 - 1
  • Placă de bază, ASROCK B550 PRO4 /AM4 - 2
  • Placă de bază, ASROCK B550 PRO4 /AM4 - 3
  • ASROCK
Placă de bază, ASROCK B550 PRO4 /AM4
Preț
€93 49 / 182 85 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 13€
+2 ani: + 18€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.asrock.com/mb/AMD/B550%20Pro4/index.asp#Specification
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft® PlayReady
Chipset
- AMD B550
Expansion slots
AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode
PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode
PCIE3: Gen3 x4 mode)*
- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**
- 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
Memory type
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB*
- Supports Extreme Memory Profile (XMP) memory modules
- 15? Gold Contact in DIMM Slots

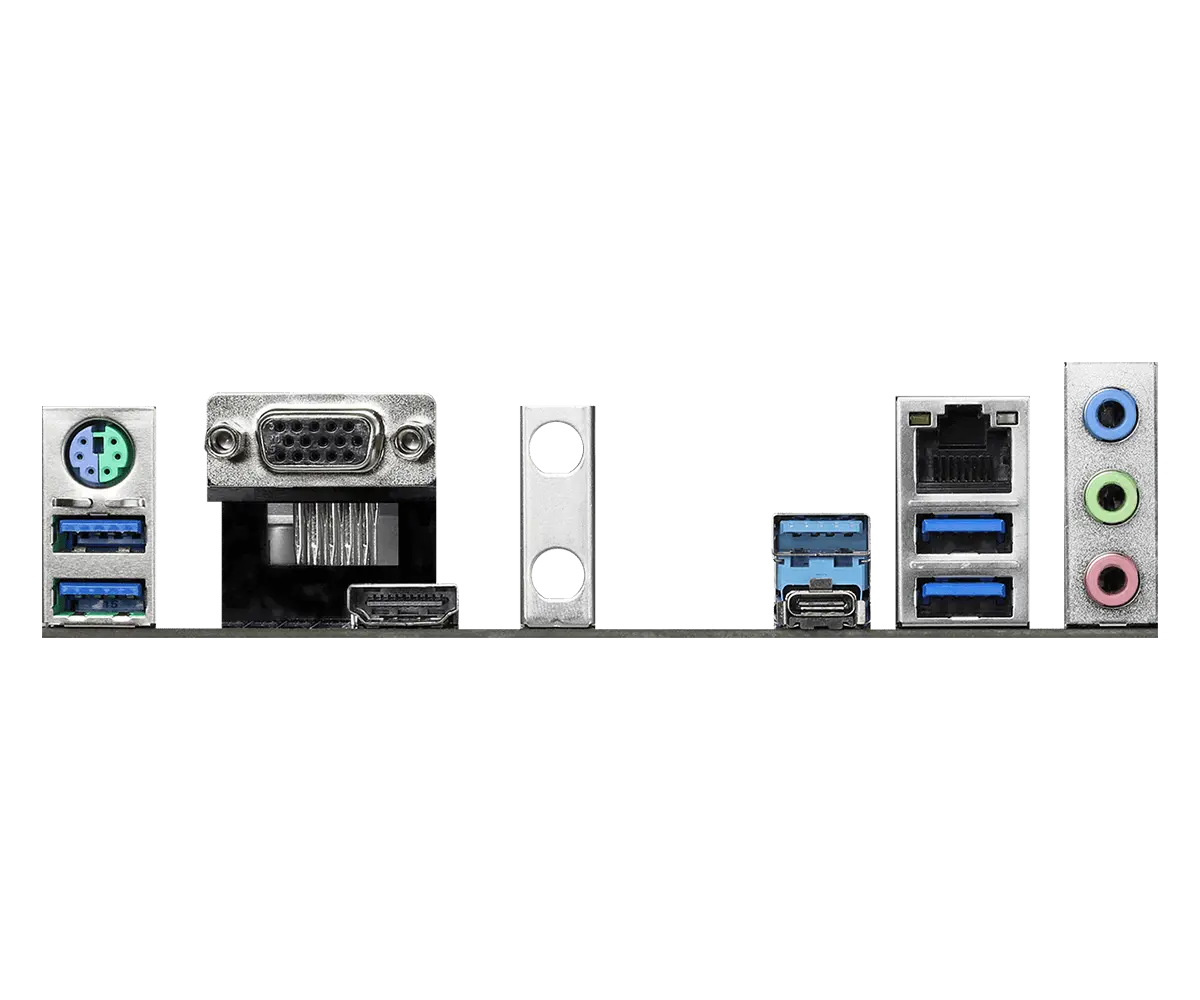

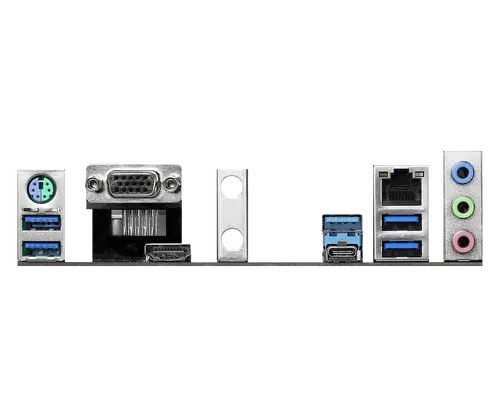

Rear panel I/O
- Antenna Bracket
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
Lan
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Form factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Solid Capacitor design
- 2oz Copper PCB
OS
- Microsoft® Windows® 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
Vendor_urlhttps://www.asrock.com/mb/AMD/B550%20Pro4/index.asp#Specification
Chipset- AMD B550
OS- Microsoft® Windows® 10 64-bit
Warranty36 Months
CPU's supported- Digi Power design
CPU's supported- 8 Power Phase design
CPU's supported- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
Memory type- Dual Channel DDR4 Memory Technology
Memory type- Supports Extreme Memory Profile (XMP) memory modules
Memory type- 15μ Gold Contact in DIMM Slots
Memory type- 4 x DDR4 DIMM Slots
Memory type- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memo
Memory type- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & no
Memory type- Max. capacity of system memory: 128GB*
Memory type- 15? Gold Contact in DIMM Slots
Form Factor- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Form Factor- Solid Capacitor design
Form Factor- 2oz Copper PCB
Audio- Supports Surge Protection
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Audio- Premium Blu-ray Audio support
Audio- PCB Isolate Shielding
Audio- Individual PCB Layers for R/L Audio Channel
Audio- Nahimic Audio
Rear panel I/O- 1 x PS/2 Mouse/Keyboard Port
Rear panel I/O- 1 x D-Sub Port
Rear panel I/O- 1 x HDMI Port
Rear panel I/O- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
Rear panel I/O- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
Rear panel I/O- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
Rear panel I/O- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Rear panel I/O- HD Audio Jacks: Line in / Front Speaker / Microphone
Rear panel I/O- Antenna Bracket
LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
LAN- Realtek RTL8111H
LAN- Supports Wake-On-LAN
LAN- Supports Lightning/ESD Protection
LAN- Supports Energy Efficient Ethernet 802.3az
LAN- Supports PXE
Expansion Slots- Supports AMD Quad CrossFireX™ and CrossFireX™
Expansion SlotsAMD Ryzen series CPUs (Matisse)
Expansion Slots- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode
Expansion SlotsPCIE3: Gen3 x4 mode)*
Expansion Slots- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode
Expansion Slots- 2 x PCI Express 3.0 x1 Slots
Expansion SlotsAMD Ryzen series APUs
Expansion Slots- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Graphics- DirectX 12, Pixel Shader 5.0
Graphics- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Graphics- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Graphics- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Graphics- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Graphics- Supports HDR (High Dynamic Range) with HDMI 2.1
Graphics- Supports Microsoft® PlayReady
Graphics- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
Graphics- Supports HDCP 2.3 with HDMI 2.1 Port
Graphics- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
Graphics- Dual graphics output: support HDMI and D-Sub ports by independent display controllers
BIOS- 256Mb AMI UEFI Legal BIOS with GUI support
BIOS- Supports "Plug and Play"
BIOS- ACPI 5.1 compliance wake up events
BIOS- Supports jumperfree
BIOS- SMBIOS 2.3 support
BIOS- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
I/O- 1 x PS/2 Mouse/Keyboard Port
I/O- 1 x D-Sub Port
I/O- 1 x HDMI Port
I/O- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
I/O- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
I/O- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
I/O- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
I/O- HD Audio Jacks: Line in / Front Speaker / Microphone
I/O- Antenna Bracket
Storage- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
Storage- 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**
Storage- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**
Connectors- 1 x COM Port Header
Connectors- 1 x Power LED and Speaker Header
Connectors- 1 x 24 pin ATX Power Connector
Connectors- 1 x 8 pin 12V Power Connector
Connectors- 1 x Front Panel Audio Connector
Connectors- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
Connectors- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Connectors- 1 x 4 pin 12V Power Connector
Connectors- 1 x SPI TPM Header
Connectors- 2 x RGB LED Headers*
Connectors- 2 x Addressable LED Headers**
Connectors- 1 x CPU Fan Connector (4-pin)***
Connectors- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
Connectors- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
Greutate2.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketAM4
Form FactorATX
ChipsetAMD B550
Memory TypeDDR4
Memory Slots (count)4
Max Memory (GB)128
M.2 Slots (count)2
SATA Ports (count)6
PCIe x16 Slots (count)2
Wi-Fi Built-inNo
LAN Speed1 Gbps
USB-C Ports (count)1
RGB LightingNo
Greutate2.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка ASRock B550 PRO4 – AM4, ATX, DDR4, PCIe 4.0

Изградете мощна система с AMD Ryzen, използвайки ASRock B550 PRO4 – дънна платка с отлично захранване, поддръжка на PCIe 4.0 и пълен ATX форм фактор. Тя осигурява висока производителност за игри и творческа работа на достъпна цена.

Ключови Предимства

  • Готовност за PCIe 4.0 – Поддържа най-новите видеокарти и NVMe SSD дискове за изключително бърз трансфер на данни.
  • Премиум захранване – 10-фазна захранваща секция осигурява стабилно напрежение за високопроизводителни Ryzen процесори.
  • Два M.2 слота – Два ултрабързи M.2 слота (един PCIe 4.0 x4, един PCIe 3.0 x4) за светкавично бързо съхранение.
  • Пълна свързаност – USB 3.2 Gen2 Type-A и Type-C портове, HDMI, DisplayPort и 7.1 HD аудио.

Технически Спецификации

СпецификацияСтойност
СокетAM4
Форм факторATX
ЧипсетAMD B550
Тип паметDDR4
Слотове за памет4
Максимална памет128 GB
M.2 слотове2
SATA портове6
PCIe x16 слотове2
Скорост на LAN1 Gbps
USB-C портове1
RGB подсветкаНе

Какво има в кутията

  • Дънна платка ASRock B550 PRO4
  • 2 x SATA кабела
  • Заден панел I/O
  • Ръководство за потребителя
  • Поддържащ DVD диск
