- ASROCK
Preț
€80 98 / 158 38 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asrock.com/MB/Intel/B760M-H2M.2/index.asp#Specification
Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
Chipset
- Intel® B760
Expansion slots
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
Memory type
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 96GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
Rear panel I/O
- 2 x Antenna Mounting Points
- 2 x HDMI Ports
- 4 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Form factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
OS
- Microsoft Windows® 10 64-bit / 11 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asrock.com/MB/Intel/B760M-H2M.2/index.asp#Specification |
| Chipset | - Intel® B760 |
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports Intel® Hybrid Technology |
| CPU's supported | - Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| CPU's supported | - Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | - Supports Intel® Adaptive Boost Technology (ABT) |
| Memory type | - Dual Channel DDR5 Memory Technology |
| Memory type | - 2 x DDR5 DIMM Slots |
| Memory type | - Max. capacity of system memory: 96GB |
| Memory type | - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Memory type | - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 2 x Antenna Mounting Points |
| Rear panel I/O | - 2 x USB 2.0 Ports |
| Rear panel I/O | - 1 x RJ-45 LAN Port |
| Rear panel I/O | - 4 x USB 3.2 Gen1 Type-A Ports |
| Rear panel I/O | - 2 x HDMI Ports |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | - Dragon RTL8125BG |
| LAN | - Supports Dragon 2.5G LAN Software |
| LAN | - Smart Auto Adjust Bandwidth Control |
| LAN | - Visual User Friendly UI |
| LAN | - Visual Network Usage Statistics |
| LAN | - Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | - User Customized Priority Control |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| Expansion Slots | Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) |
| Graphics | - 2 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 2 x Antenna Mounting Points |
| I/O | - 2 x USB 2.0 Ports |
| I/O | - 1 x RJ-45 LAN Port |
| I/O | - 4 x USB 3.2 Gen1 Type-A Ports |
| I/O | - 2 x HDMI Ports |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | Chipset: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modes* |
| Connectors | - 1 x RGB LED Header* |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x 8 pin 12V Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 1 x Chassis Intrusion and Speaker Header |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | - 3 x Addressable LED Headers** |
| Connectors | - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| Greutate | 0.80kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Greutate | 0.80kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

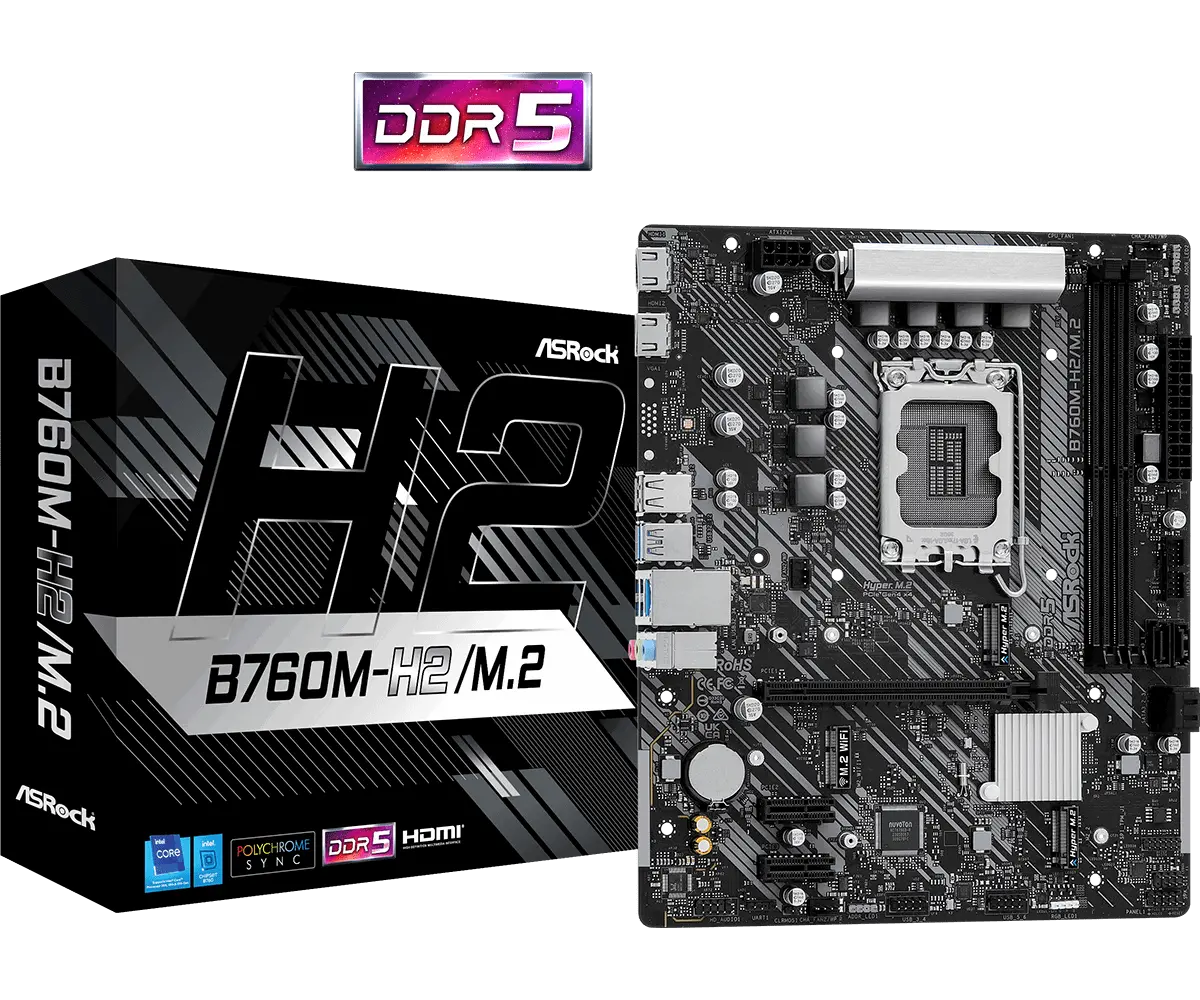

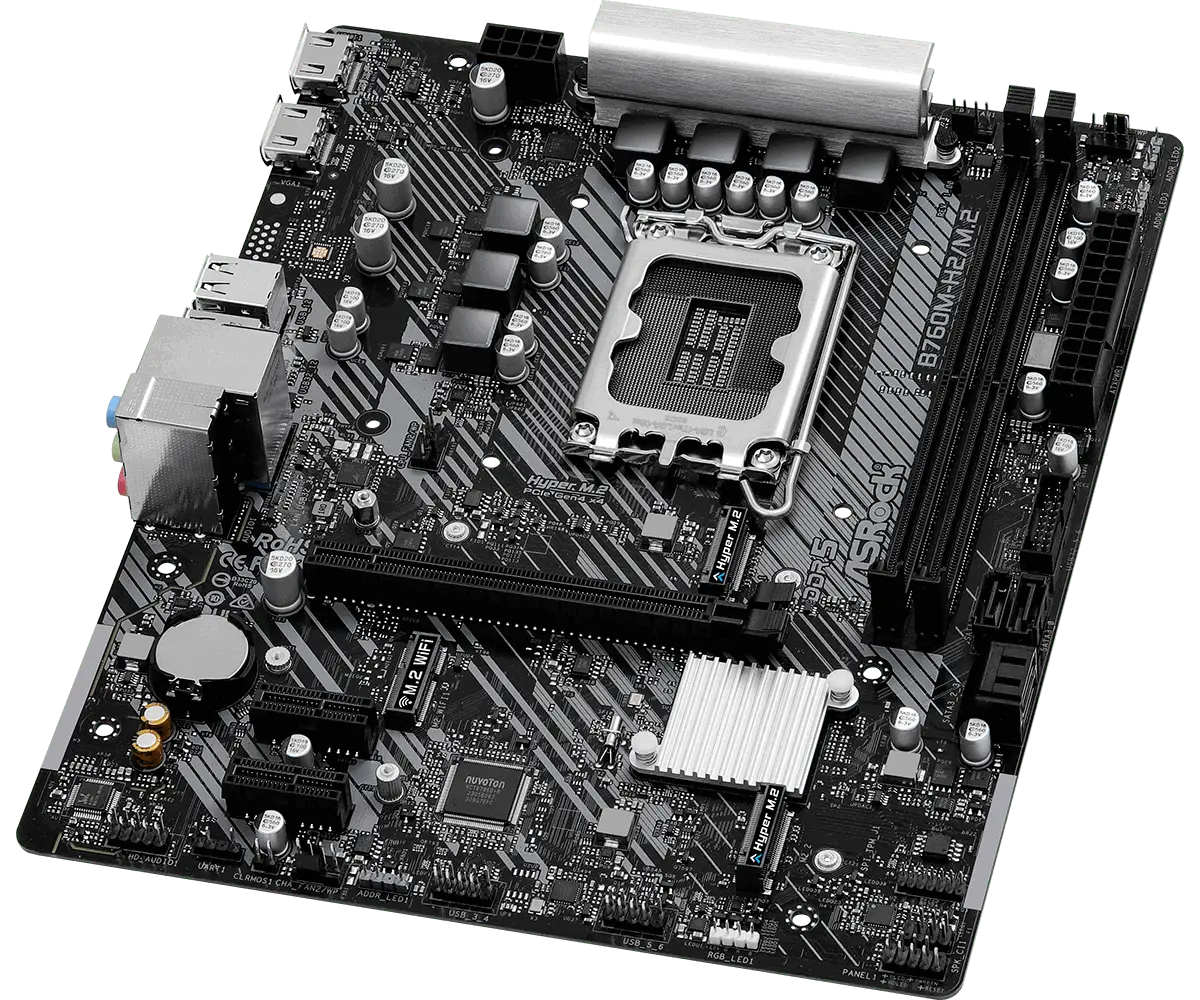

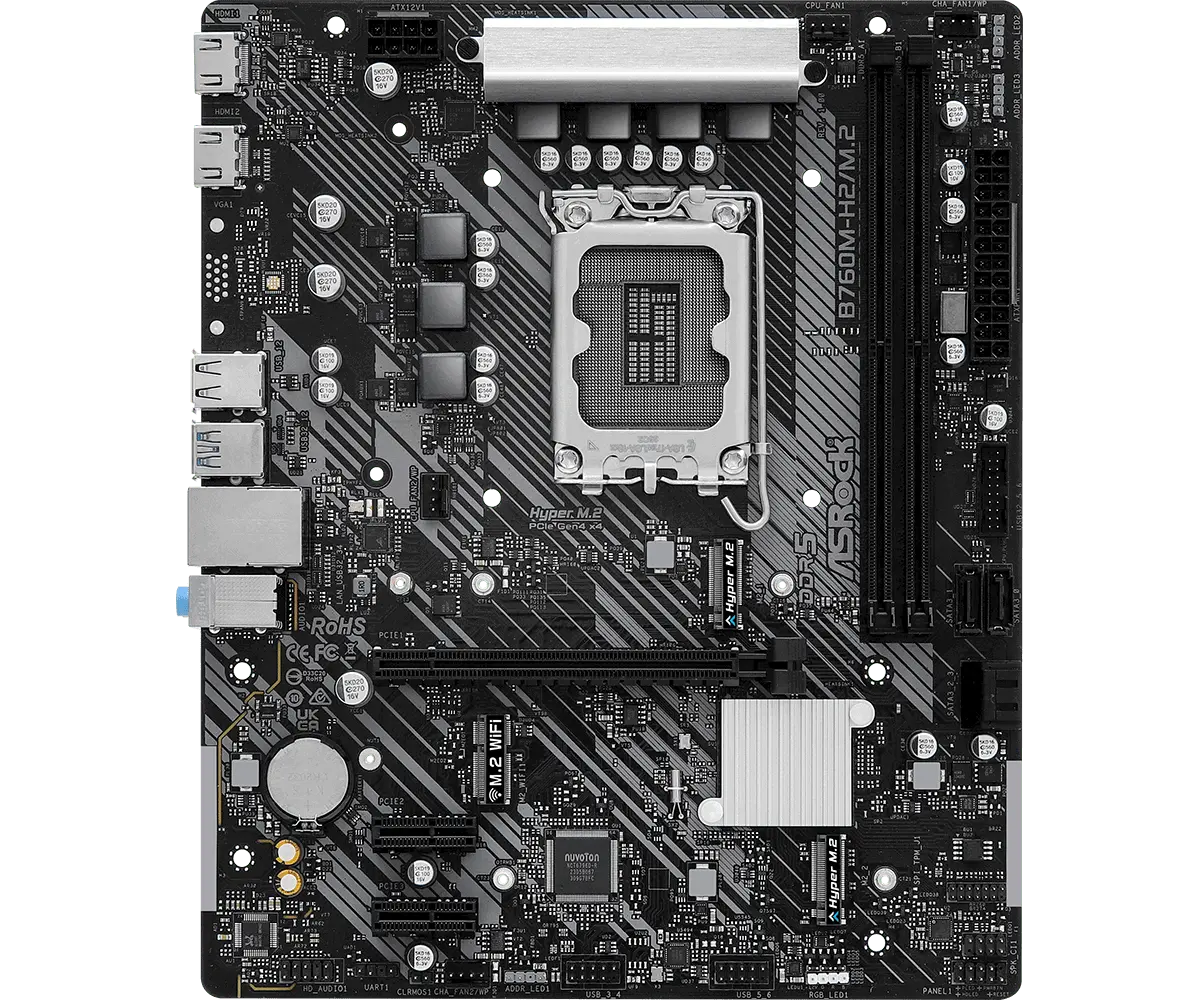

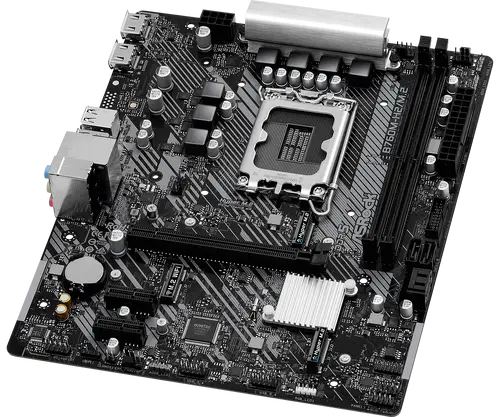

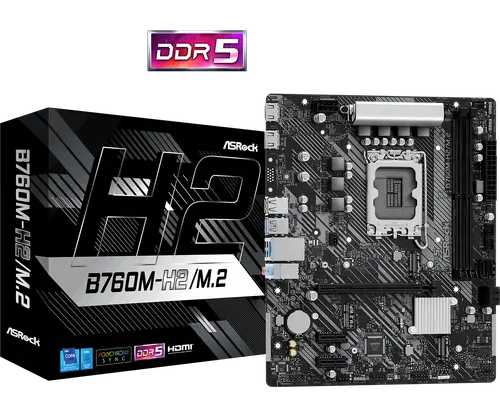

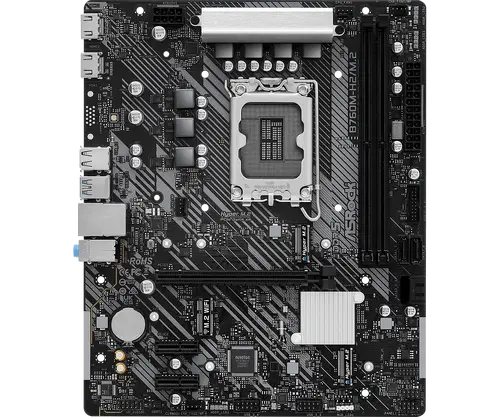

Дънна платка ASRock B760M-H2/M.2 DDR5 – LGA1700, Micro-ATX
Изградете мощен и ефективен компютър с процесор Intel Core, използвайки дънната платка ASRock B760M-H2/M.2. Тя поддържа 12-то, 13-то и 14-то поколение процесори на гнездо LGA1700, разполага с DDR5 памет и модерни връзки за следващото ви PC изграждане.
Ключови Предимства
- Поддръжка на DDR5 памет – Получете по-висока честотна лента и по-бърз трансфер на данни за изискващи приложения и игри.
- Готовност за PCIe 4.0 – Един PCIe 4.0 x16 слот за най-новите видеокарти и SSD дискове.
- Два M.2 слота – Два M.2 слота (един PCIe Gen4 x4, един PCIe Gen3 x4) за ултрабързо NVMe съхранение.
- Надеждна свързаност – Gigabit LAN, HDMI, D-Sub и USB 3.2 Gen1 портове за разнообразни периферни устройства.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Скорост на LAN | 1 Gbps |
| USB-C портове | 0 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock B760M-H2/M.2
- Ръководство за потребителя
- Заден панел за I/O
- 2 x SATA кабела
- M.2 винтове
