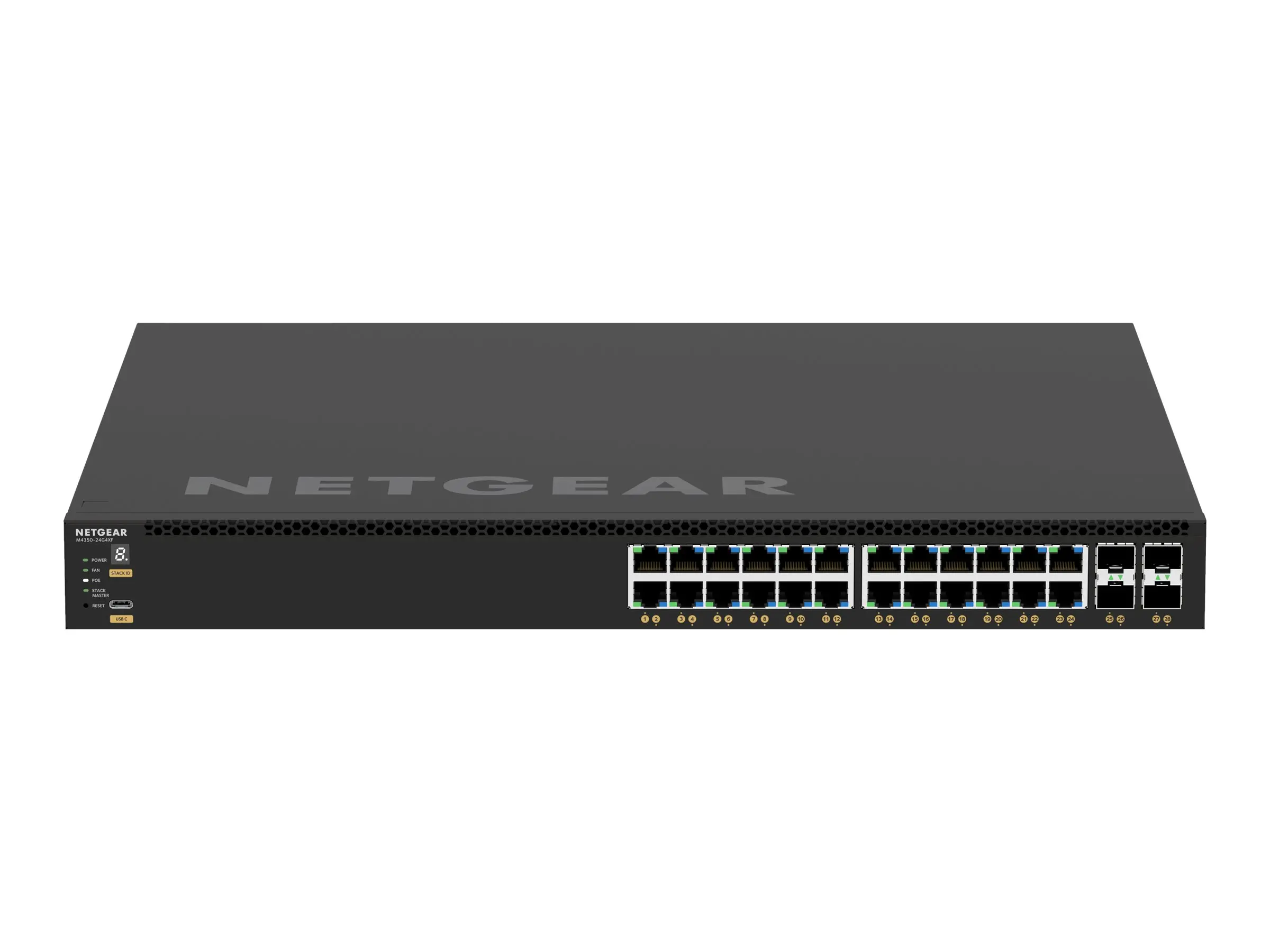

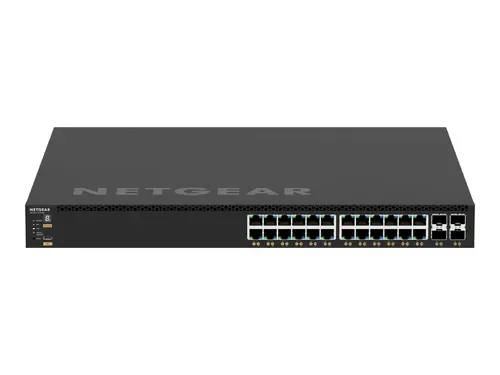

NETGEAR M4350 Series M4350-24G4XF - Switch - L3 - Administrabil - 24 x 10/100/1000 (PoE+) + 4 x SFP+ - flux de aer din față în spate - montabil în rack - PoE+ (720 W)
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
| General | |
|---|---|
| Device Type | Switch - 28 ports - L3 - Managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 720 W |
| Performance | Routing/switching capacity: 128 Gbps Throughput (64-byte packet size): 95.23 Mpps Latency (1 Gbps): |
| Capacity | Packet buffer size: 16 MB Multicast entries (IPv4): 512 Multicast entries (IPv6): 256 VLANs supported: 4000 Jumbo frame size: up to 12000 IGMP multicast groups: 2000 DHCP users: 2000 ARP entries: 4000 NDP entries: 512 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | OSPF, RIP, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, policy-based routing (PBR), MLDv2, RSTP |
| Remote Management Protocol | RMON, Telnet, SNMP 3, HTTPS, SSH-2, CLI, DHCP, RSTP, MIB |
| Encryption Algorithm | SHA, MD5, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0 |
| Authentication Method | RADIUS, TACACS+ |
| Features | BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, sFlow, Jumbo Frames support, DAI, LACP, RSPAN, GVRP, MVRP, IP source guard, BPDU, GMRP, STRG, LLDP-MED, proxy ARP, PTPv2 TC support, MMRP, Quad-core CPU, DHCPv4 server, DHCPv6 server |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Processor | 1 x ARM Cortex-A57: 1.8 GHz |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Expansion / Connectivity | |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-T SFP+ 1 x management (Gigabit LAN) RJ-45 2 x USB Type A 1 x console (USB) Type C |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Provided | 880 Watt |
| Power Consumption Operational | 80 Watt |
| Power Consumption Stand by | 32 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet, mounting brackets, rubber caps |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 60950, UL 1950, CCC, RCM, BSMI CNS 14336-1, EN 61000-3-2 Class A, GB4943.1-2001, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, EN 61000-3-2:2014, GB 4943.1-2011, IEEE 1588, AAA, ISED, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, SCCP, GB/T9254-2008 Class A, ANSI C63.4:2014, BSMI CNS 13428, EN 60950-1:2016+A11:2009+A1:2010+A12:2011+A2:2013, EN 55032:2012/AC:2013, FCC CFR 47 Part 15 Class A |
| Localisation | North America, United Kingdom, Europe |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 4.32 cm |
| Height | 40 cm |
| Weight | 6.41 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Device Type | Switch - 28 ports - L3 - Managed - stackable |
| Marketing Description | The NETGEAR M4350-24G4XF is a switch designed to meet the demands of modern networks. With 24 PoE+ ports and 4 SFP+ ports, it offers flexible connectivity options for various devices, while ensuring efficient power distribution. The switch is equipped wit |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x SFP+ |
| Performance | Routing/switching capacity: 128 Gbps Throughput (64-byte packet size): 95.23 Mpps Latency (1 Gbps): < 2.42 µs 10 Gbps fibre latency (64-byte pac |
| Capacity | Packet buffer size: 16 MB Multicast entries (IPv4): 512 Multicast entries (IPv6): 256 VLANs supported: 4000 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | OSPF, RIP, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, policy-based routing (PBR), MLDv2, RSTP |
| Remote Management Protocol | RMON, Telnet, SNMP 3, HTTPS, SSH-2, CLI, DHCP, RSTP, MIB |
| Encryption Algorithm | SHA, MD5, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0 |
| Features | BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, sFlow, Jumbo Frames support, DAI, LACP, RSPAN, GVRP, MVRP, IP source guard, BPDU, GMRP, STRG, LLDP-MED, proxy ARP, PTPv2 TC support, MMRP, Quad-core CPU, DHCPv4 server, DHCPv6 serve |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Compliant Standards | EN 60950, UL 1950, CCC, RCM, BSMI CNS 14336-1, EN 61000-3-2 Class A, GB4943.1-2001, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, EN 61000-3-2:2014, GB 4943.1-2011, IEEE 1588, AAA, ISED, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 C |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Interfaces | 24 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-T SFP+ 1 x management (Gigabit LAN) RJ-45 2 x USB Type A 1 x console |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Provided | 880 Watt |
| Width | 44 cm |
| Depth | 4.32 cm |
| Height | 40 cm |
| Weight | 6.41 kg |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Included Accessories | Rubber feet, mounting brackets, rubber caps |
| Cables Included | 1 x console cable |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 720 W |
| Authentication Method | RADIUS, TACACS+ |
| Processor | 1 x ARM Cortex-A57: 1.8 GHz |
| Rack Mounting Kit | Included |
| Localisation | North America, United Kingdom, Europe |
| Power Consumption Operational | 80 Watt |
| Power Consumption Stand by | 32 Watt |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Number of Ports (count) | 28 |
| Port Speed | Gigabit, 10 Gigabit |
| Switch Type | Managed |
| PoE Support | No |
| Form Factor | Rack Mount |
| Layer | Layer 3 |
| SFP Ports (count) | 24 |
| SFP+ Ports (count) | 4 |
| Switching Capacity (Gbps) | 128 |
| PoE Power Budget (W) | 0 |
| VLAN Support | Yes |
| Stackable | Yes |
| Fanless | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
NETGEAR M4350-24G4XF – 28-портов управляем оптичен суич от слой 3 за Pro AV и бизнес мрежи
NETGEAR M4350-24G4XF е оптичен суич за AV-over-IP системи и за ядрото на бизнес мрежи. Има 24 гигабитови SFP порта и 4 SFP+ порта на 10 гигабита. Пълната функционалност от слой 3 и готовите AV профили ви позволяват да свържете отдалечени зали, етажи и сгради по оптика без дълга настройка.
Ключови Предимства
- 24 гигабитови SFP оптични порта – Свързвайте отдалечени суичове, зали или сгради по дълги оптични трасета. Оптиката не се влияе от електромагнитни смущения.
- 4 SFP+ порта на 10 гигабита – Бързи връзки към основния суич, сървърите или други суичове M4350, така че uplink връзката да не бъде тясно място.
- Пълно рутиране от слой 3 – Статично и динамично рутиране между VLAN мрежите, без трафикът да минава през отделен рутер.
- Създаден за Pro AV – Готови профили за Dante, AES67, NDI, AVB и други AV-over-IP протоколи ускоряват настройката.
- Лесно управление с NETGEAR Engage – Настройвайте, наблюдавайте и управлявайте суича през уеб интерфейс, CLI или NETGEAR Engage.
- Разширени мултикаст и QoS функции – IGMP snooping и приоритизацията на трафика поддържат аудио и видео потоците гладки и стабилни.
- Корпус 1U за рак – Монтира се лесно в стандартен 19" рак.
Технически Спецификации
| Характеристика | Стойност |
|---|---|
| Производител | NETGEAR |
| Модел | M4350-24G4XF |
| Партиден номер | GSM4328-100NES |
| Тип суич | Управляем |
| Слой | Слой 3 |
| Общ брой портове | 28 |
| 1G SFP портове | 24 |
| 10G SFP+ портове | 4 |
| Капацитет на превключване | 128 Gbps |
| PoE | Не |
| VLAN поддръжка | Да (IEEE 802.1Q) |
| Управление | Уеб интерфейс, CLI, NETGEAR Engage |
| Форм фактор | 1U, за монтаж в рак |
| EAN | 606449161922 |
Какво има в кутията
- Суич NETGEAR M4350-24G4XF
- Захранващ кабел
- Комплект за монтаж в рак
- Кратко ръководство за инсталация
