- ASUS
Preț
€170 00 / 332 49 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-ii/
Graphics
1 x DisplayPort
1 x HDMI™ port
CPU's supported
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron®
Chipset
Intel® B760 Chipset
Expansion slots
Intel®Core™Processors (14th& 13th& 12th Gen)
1 x PCIe 5.0 x16 slot
Intel®B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel®Core™Processors (14th& 13th& 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
Intel®B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Memory type
4 x DIMM slots, Max. 192GB, DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)

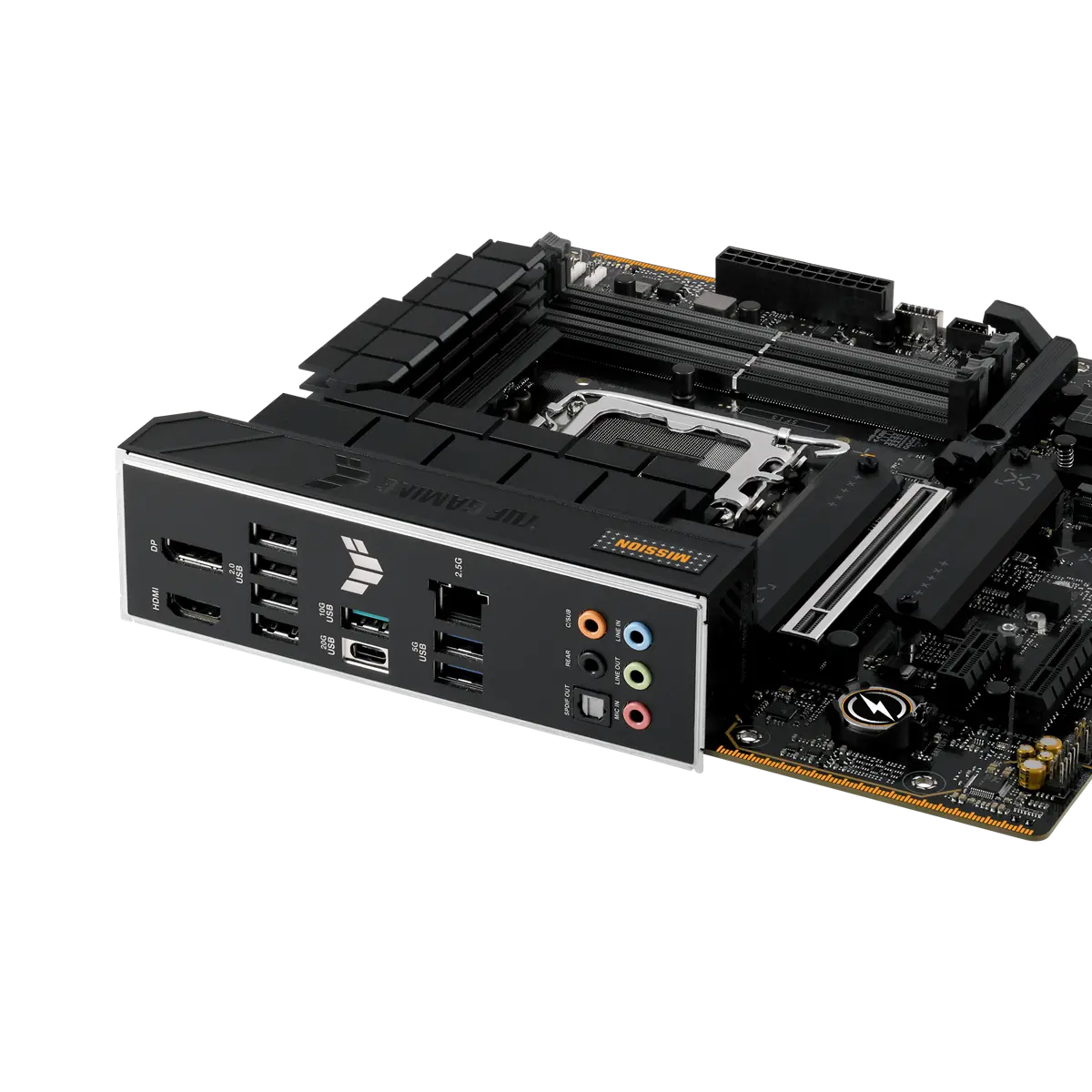

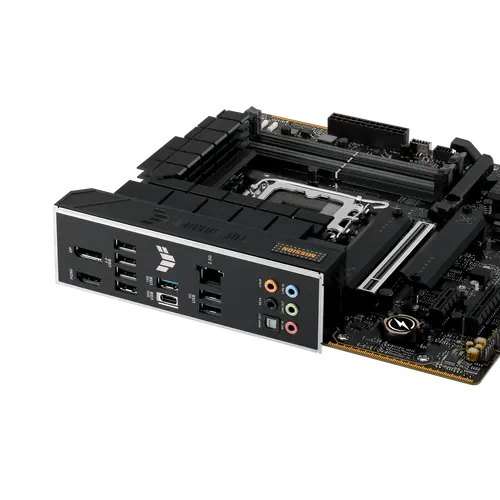

Rear panel I/O
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (F-AUDIO)
1 x20-3 pin System Panel header with chassis intrusion function
1 x Thunderbolt™ (USB4®) header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming,
Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers
Lan
1 x Realtek 2.5Gb Ethernet, TUF LANGuard
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
OS
Windows®11, Windows®10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-ii/ |
| Chipset | Intel® B760 Chipset |
| OS | Windows®11, Windows®10 64-bit |
| Warranty | 36 Months |
| CPU's supported | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® |
| Memory type | Dual channel memory architecture |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) |
| Memory type | ASUS Enhanced Memory Profile II (AEMP II) |
| Memory type | 4 x DIMM slots, Max. 192GB, DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Audio | Audio Shielding |
| Audio | Audio Features |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio | Supports up to 24-Bit/192 kHz playback |
| Audio | Premium audio capacitors |
| Audio | Dedicated audio PCB layers |
| Audio | Supports: Jack-detection, Multi-streaming, |
| Audio | Front Panel Jack-retasking |
| Audio | Rear optical S/PDIF out port |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 5 x Audio jacks |
| Rear panel I/O | 1 x Optical S/PDIF out port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | Back Panel I/O Ports |
| Rear panel I/O | 2 x USB 5Gbps ports (2 x Type-A) |
| Rear panel I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| Rear panel I/O | 1 x USB 10Gbps port (1 x Type-A) |
| LAN | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Expansion Slots | 1 x PCIe 3.0 x1 slot |
| Expansion Slots | 1 x PCIe 5.0 x16 slot |
| Expansion Slots | 1 x PCIe 4.0 x4 slot |
| Expansion Slots | Intel®Core™Processors (14th& 13th& 12th Gen) |
| Expansion Slots | Intel®B760 Chipset |
| Graphics | 1 x HDMI™ port |
| Graphics | 1 x DisplayPort |
| Features | ASUS EZ DIY |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | Aura Sync |
| Features | ASUS TUF PROTECTION |
| Features | Overvoltage Protection |
| Features | Safeslot Core+ |
| Features | Stainless-Steel Back I/O |
| Features | Q-DIMM |
| Features | Addressable Gen 2 headers |
| Features | DIGI+ VRM (- Digital power design with DrMOS) |
| Features | ESD Guards |
| Features | TUF LANGuard |
| Features | M.2 Q-Latch |
| Features | Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Features | VRM heatsink design |
| Features | ProCool |
| Features | Pre-mounted I/O shield |
| Features | SafeDIMM |
| Features | PCIe Slot Q-Release |
| Features | M.2 heatsinks |
| Features | CPU Socket lever protector |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 5 x audio jacks |
| I/O | 1 x HDMI™ port |
| I/O | 1 x Realtek 2.5Gb Ethernet port |
| I/O | 1 x Optical S/PDIF out port |
| I/O | 4 x USB 2.0 ports (4 x Type-A) |
| I/O | Back Panel I/O Ports |
| I/O | 2 x USB 5Gbps ports (2 x Type-A) |
| I/O | 1 x USB 20Gbps port (1 x USB Type-C®) |
| I/O | 1 x USB 10Gbps port (1 x Type-A) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) |
| Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
| Storage | Intel®Core™Processors (14th& 13th& 12th Gen) |
| Storage | Intel®B760 Chipset |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 3 x 4-pin Chassis Fan headers |
| Connectors | 1 x Thunderbolt™ (USB4®) header |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 3 x M.2 slots (Key M) |
| Connectors | 2 x 8-pin +12V Power connectors |
| Connectors | 1 x USB 10Gbps connector (supports USB Type-C®) |
| Connectors | 3 x USB 2.0 headers support 5 additional USB 2.0 ports |
| Connectors | 1 x Front Panel Audio header (F-AUDIO) |
| Connectors | 1 x20-3 pin System Panel header with chassis intrusion function |
| Greutate | 1.65kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 96 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6 |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 1.65kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

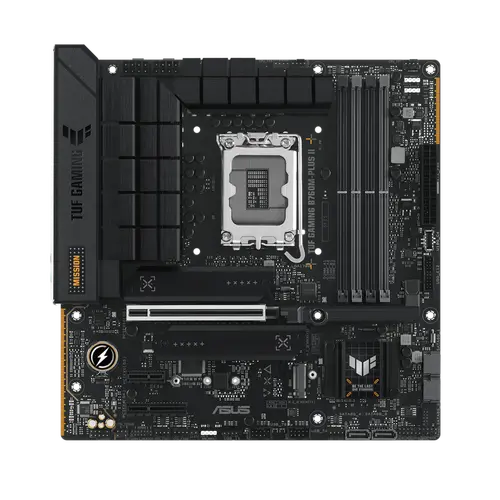

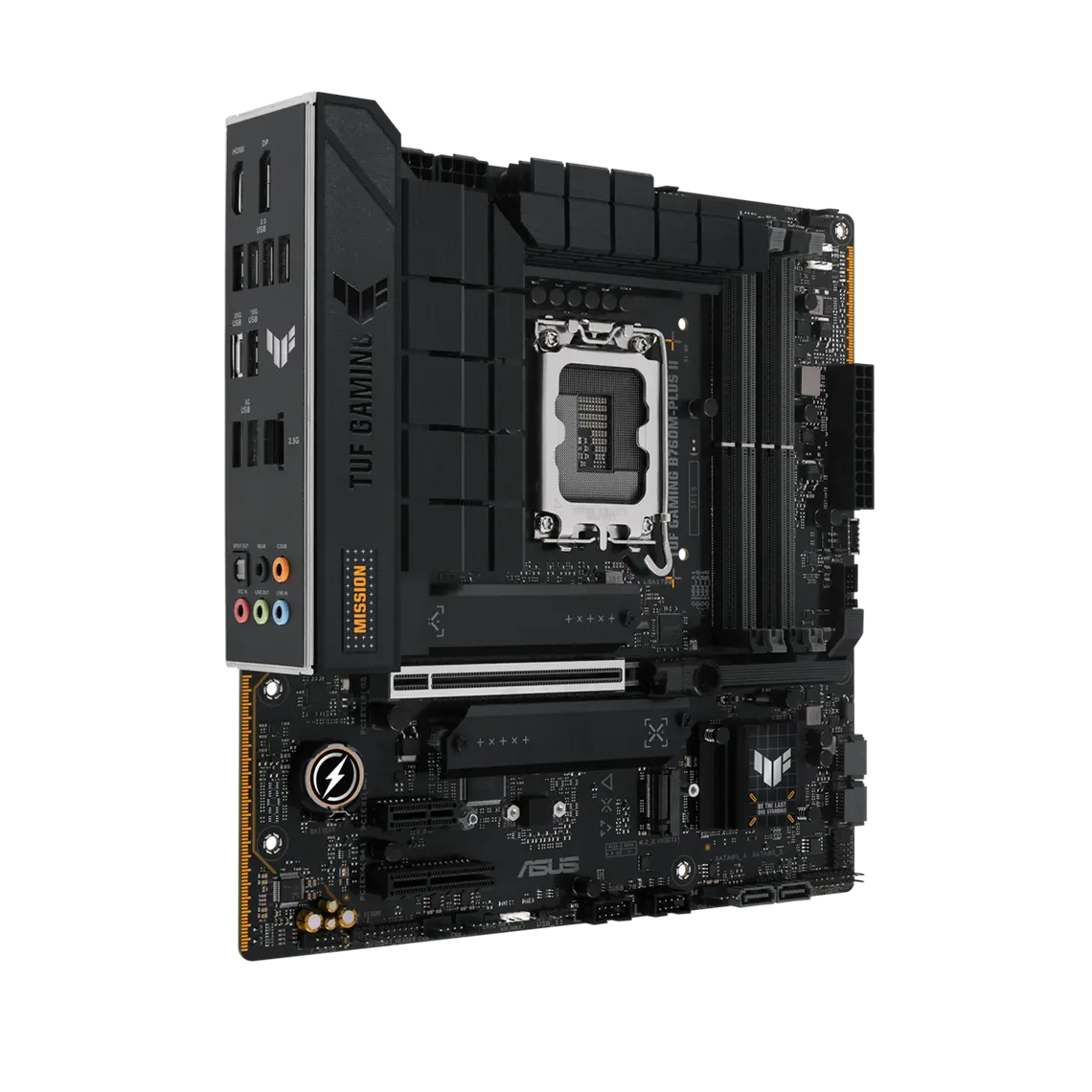

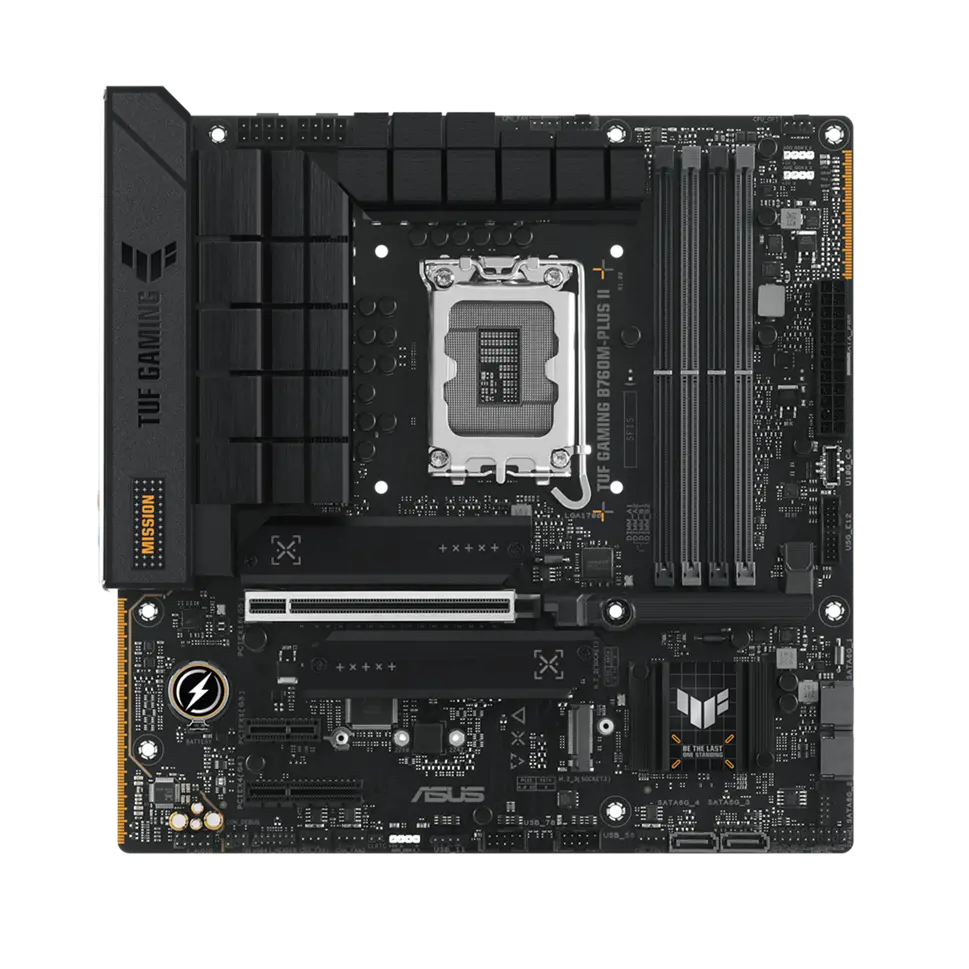

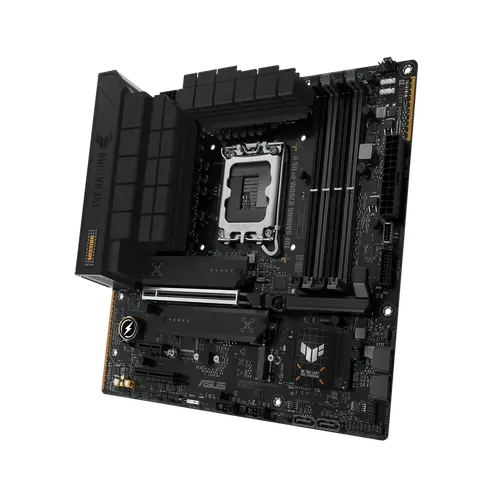

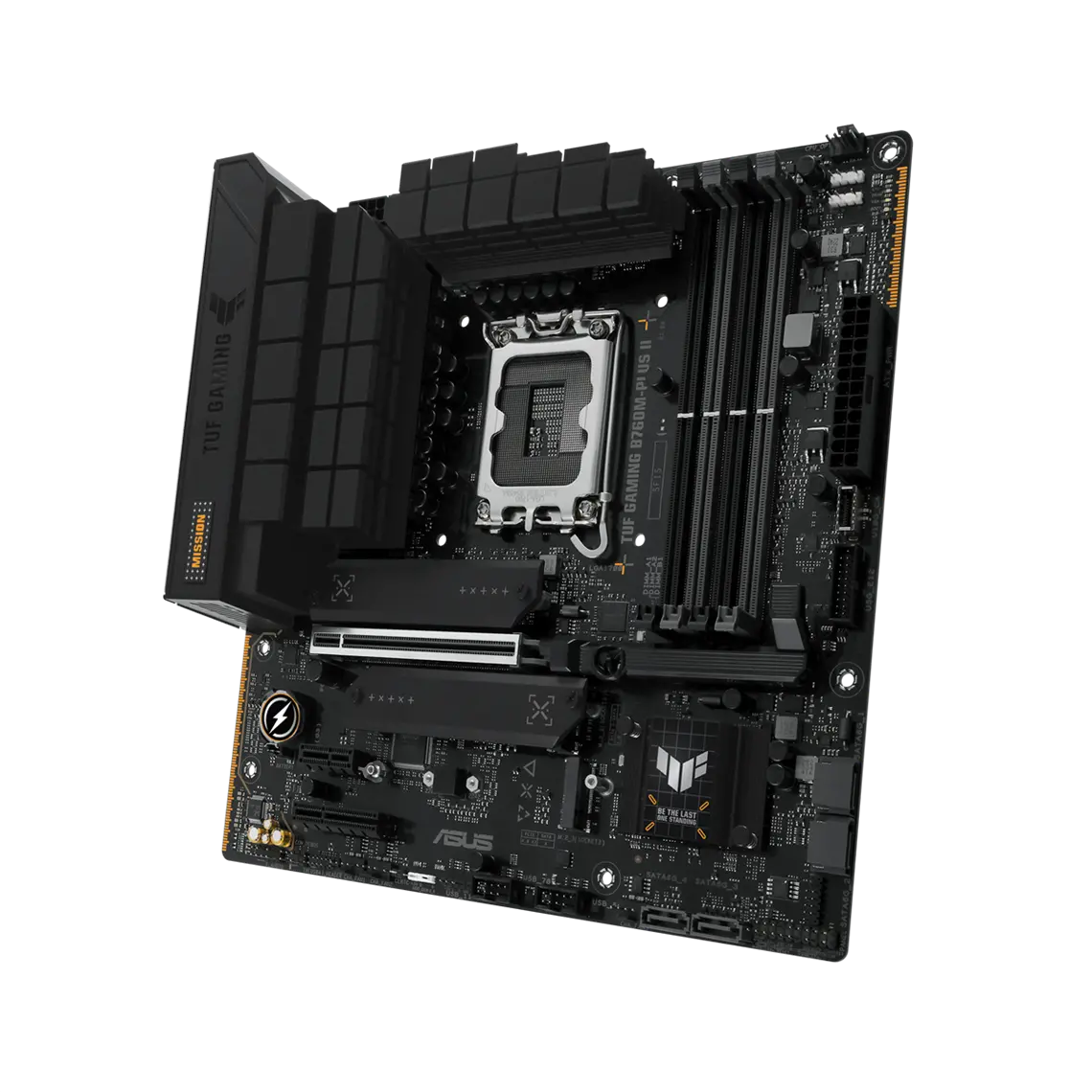

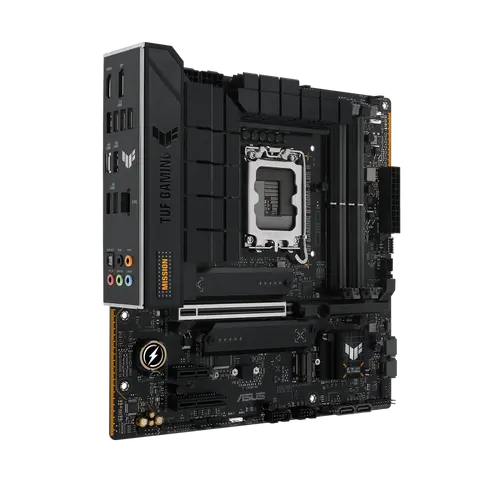

Дънна платка Asus TUF Gaming B760M Plus II
Създадена за издръжливост и производителност, Asus TUF Gaming B760M Plus II осигурява стабилна работа за игри и продуктивност. С компоненти от военен клас и подобрено охлаждане, тази Micro-ATX платка е готова за процесори Intel Core от 13-то и 14-то поколение.
Ключови Предимства
- Надеждно захранване — 12+1 DrMOS фази осигуряват стабилно напрежение за висок клас процесори.
- Бързи връзки — PCIe 5.0 за графични карти и SSD, плюс 2.5 Gb Ethernet и Wi-Fi 6.
- Ефективно охлаждане — Множество вентилаторни конектори, радиатори за VRM и термо подложки за M.2 поддържат ниски температури.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 96 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6 |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка Asus TUF Gaming B760M Plus II
- Ръководство за потребителя
- I/O скоба
- SATA кабели (2)
- M.2 гумени пакети
- Wi-Fi антена
