- GIGABYTE
Preț
€78 06 / 152 67 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj
* Support for DisplayPort 1.2 version and HDCP 2.3
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® H610 Express Chipset
Expansion slots
CPU
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage
Chipset
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
Memory type
14th and 13th Generation Intel® Core™ i9/i7 Pocessors
- Support for DDR5 5600/ 5200/ 4800/ 4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Rear panel I/O
Chipset
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
iTE® I/O Controller Chip
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

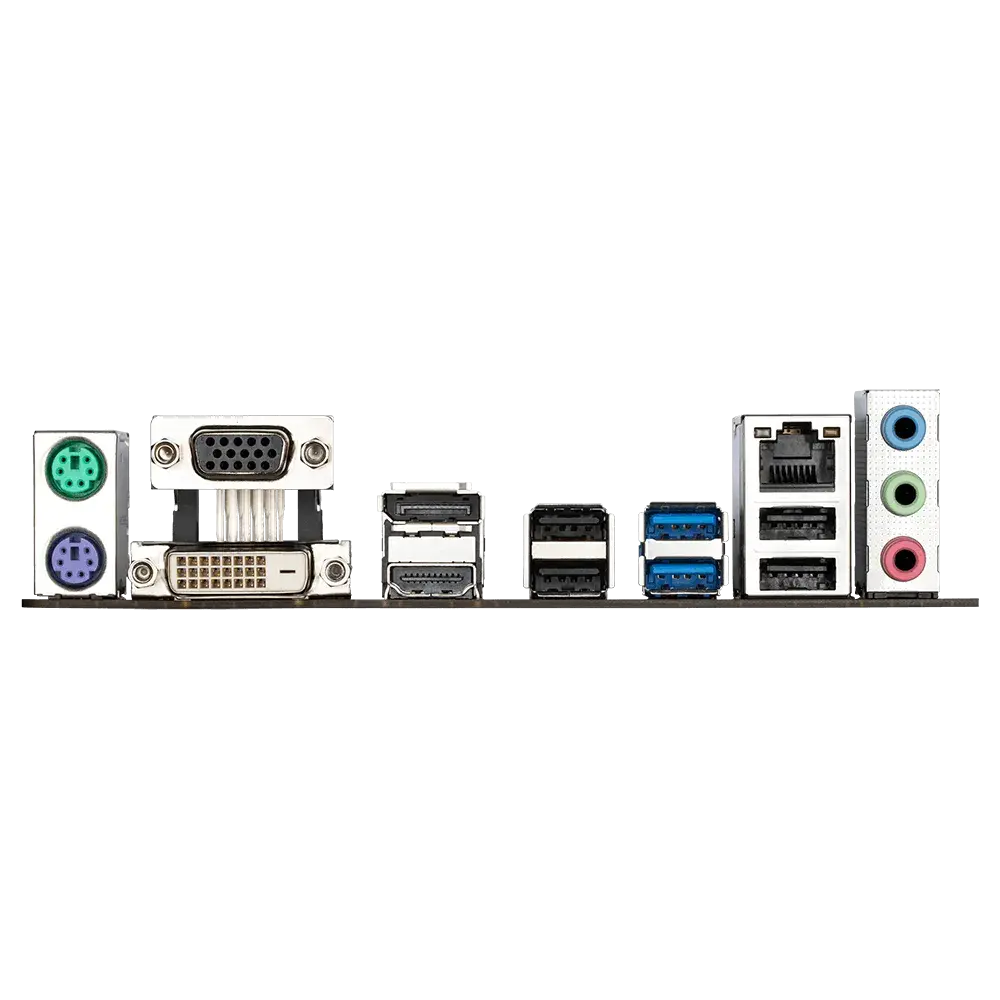

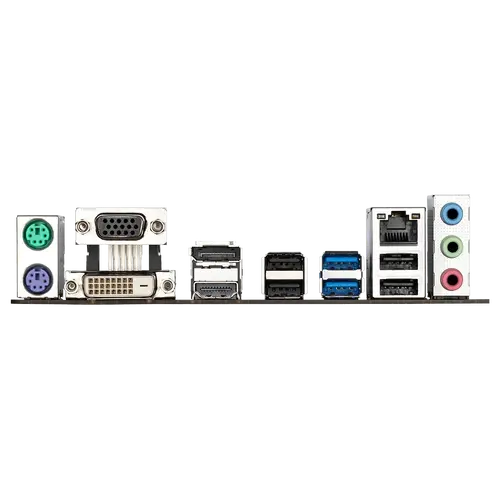

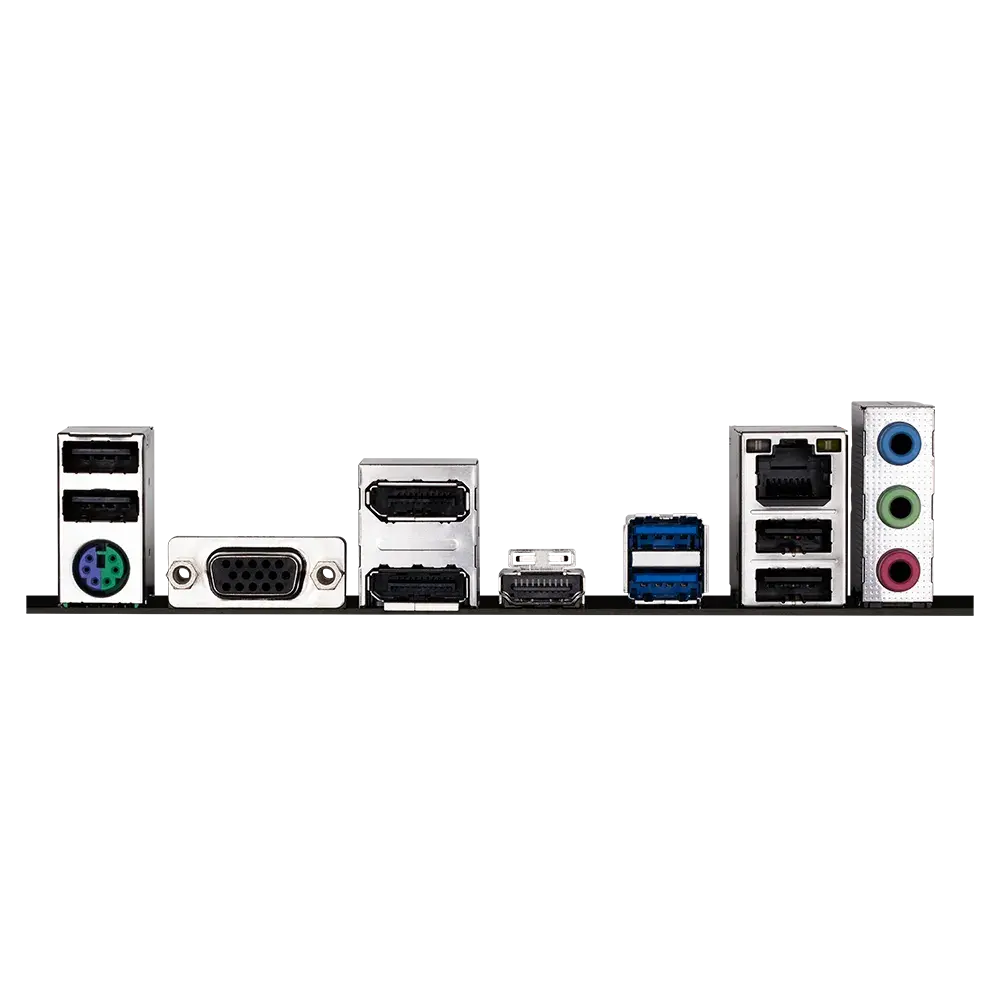

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
22.3cm x 19.6cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/H610M-S2H-V2-rev-10#kf |
| Chipset | Intel® H610 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Memory type | 14th and 13th Generation Intel® Core™ i9/i7 Pocessors |
| Memory type | 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Memory type | - Support for DDR5 4800/4400 MT/s memory modules |
| Memory type | 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Memory type | - Support for DDR5 5600/ 5200/ 4800/ 4400 MT/s memory modules |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 22.3cm x 19.6cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Rear panel I/O | Chipset |
| Rear panel I/O | - 4 x USB 2.0/1.1 ports on the back panel |
| Rear panel I/O | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Rear panel I/O | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Rear panel I/O | Chipset+USB 2.0 Hub |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots | CPU |
| Expansion Slots | Chipset |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
| Expansion Slots | - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Graphics | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| Graphics | ** Support native HDMI 2.1 TMDS compatible ports. |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hzjk |
| Graphics | - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hzj |
| Features | Support for APP Center |
| Features | * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Features | - @BIOS |
| Features | - EasyTune |
| Features | - Smart Backup |
| Features | - System Information Viewer |
| Features | Support for Q-Flash |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | Chipset |
| I/O | - 4 x USB 2.0/1.1 ports on the back panel |
| I/O | - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| I/O | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| I/O | Chipset+USB 2.0 Hub |
| Storage | Chipset |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) |
| Storage | - 4 x SATA 6Gb/s connectors |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x serial port header |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 1 x speaker header |
| Connectors | 1 x chassis intrusion header |
| Connectors | 2 x system fan headers |
| Connectors | 1 x RGB LED strip header |
| Connectors | Back Panel Connectors |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 4 x USB 2.0/1.1 ports |
| Connectors | 2 x USB 3.2 Gen 1 ports |
| Connectors | 1 x HDMI port |
| Connectors | iTE® I/O Controller Chip |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) |
| Connectors | 1 x D-Sub port |
| Connectors | 1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors |
| Connectors | 2 x DisplayPort |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel H610 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
GIGABYTE H610M S2H V2 DDR5 – достъпна Micro-ATX дънна платка за Intel LGA1700
GIGABYTE H610M S2H V2 ви дава DDR5 на платформата Intel LGA1700, без да плащате излишно. Получавате бърза DDR5 памет, NVMe съхранение и три видеоизхода в компактен Micro-ATX формат. Подходяща е за офис компютри, домашни системи и бюджетни геймърски конфигурации.
Ключови предимства
- Поддръжка на DDR5 — Два слота за DDR5 памет дават по-висока пропускателна способност от DDR4 и оставят място за надграждане.
- Сокет Intel LGA1700 — Работи с процесори Intel Core 12-то, 13-то и 14-то поколение. За по-новите модели може да е нужен ъпдейт на BIOS.
- Бързо NVMe съхранение — M.2 слотът приема PCIe NVMe SSD, така че системата и програмите се зареждат бързо.
- PCIe x16 слот за видеокарта — Можете да добавите дискретна видеокарта и по всяко време да превърнете офис машината в геймърска.
- Три видеоизхода — С HDMI, DisplayPort и D-Sub (VGA) ползвате вградената графика на процесора както с нови, така и с по-стари монитори.
- Компактен Micro-ATX формат — Събира се в повечето mini и mid tower кутии и пак оставя място за разширение.
- Надеждност от GIGABYTE — Създадена за стабилна работа години наред, у дома или в офиса.
Технически спецификации
| Характеристика | Стойност |
|---|---|
| Производител | GIGABYTE |
| Модел | H610M S2H V2 (rev. 1.0) |
| Сокет | Intel LGA 1700 |
| Чипсет | Intel H610 |
| Поддържани процесори | Intel Core 12-то / 13-то / 14-то поколение, Pentium Gold, Celeron |
| Форм фактор | Micro-ATX |
| Тип памет | DDR5 |
| Слотове за памет | 2 x DIMM |
| Режим на паметта | Двуканален |
| Слотове за разширение | 1 x PCIe x16 |
| M.2 слотове | 1 x M.2 (PCIe NVMe) |
| SATA портове | 4 x SATA 6Gb/s |
| Мрежа | Realtek Gigabit Ethernet (1 Gbps) |
| Wi-Fi | Не |
| Аудио | Realtek HD Audio |
| Видеоизходи | HDMI, DisplayPort, D-Sub (VGA) |
| EAN | 4719331859817 |
Какво има в кутията
- Дънна платка GIGABYTE H610M S2H V2
- SATA кабели
- Документация
