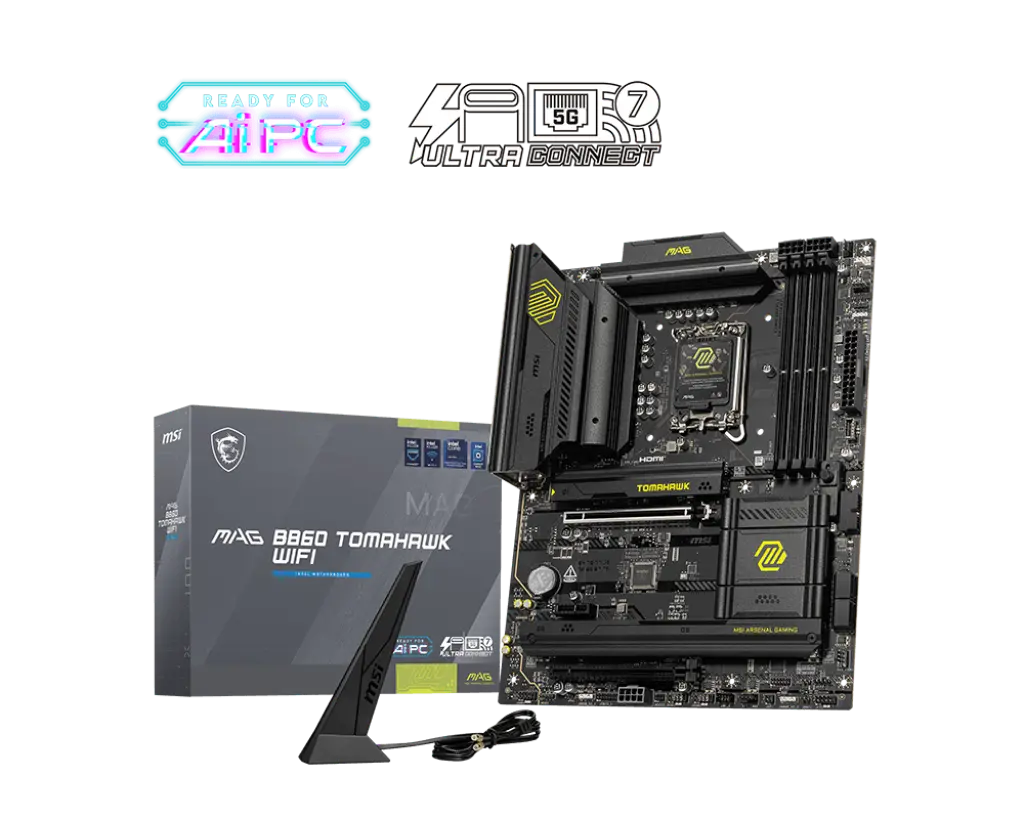

Placă de bază, MSI MAG B860 TOMAHAWK WIFI

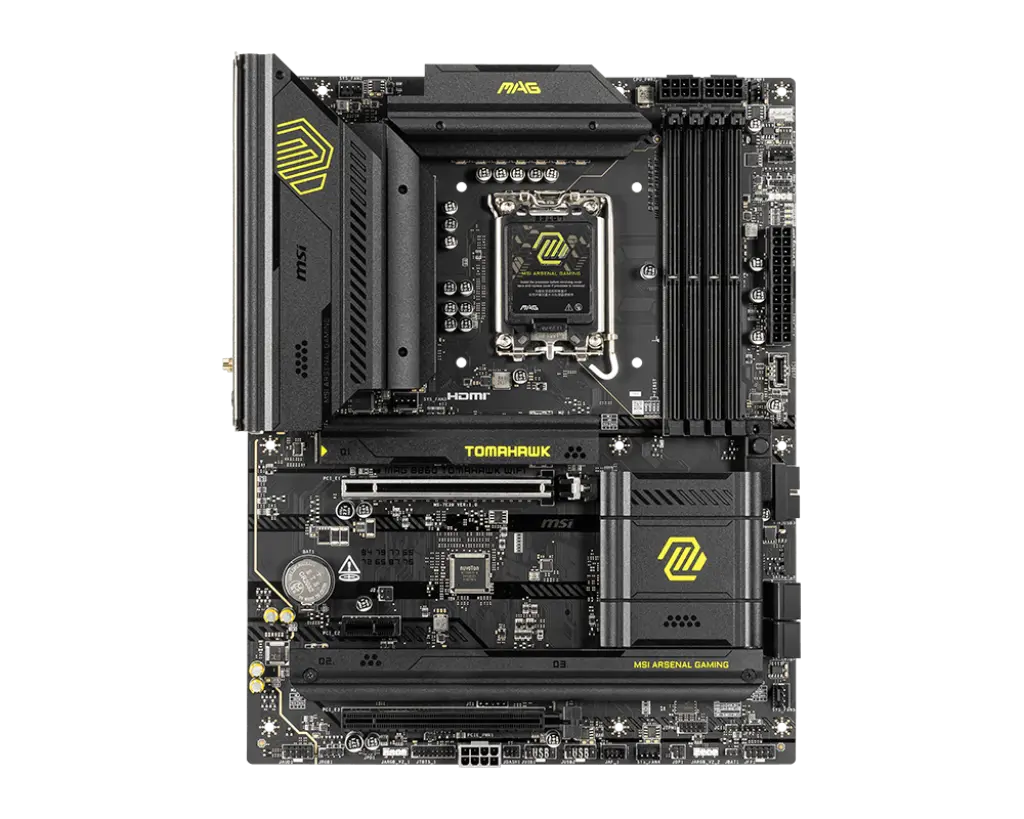

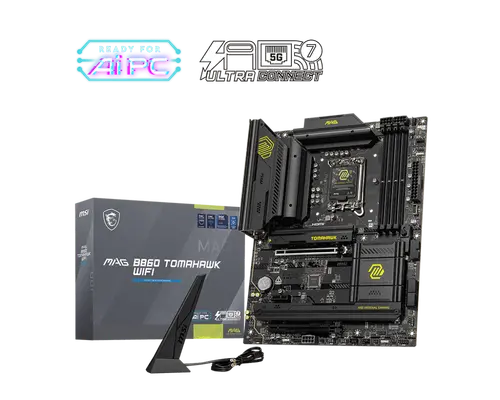

  • Placă de bază, MSI MAG B860 TOMAHAWK WIFI - 1

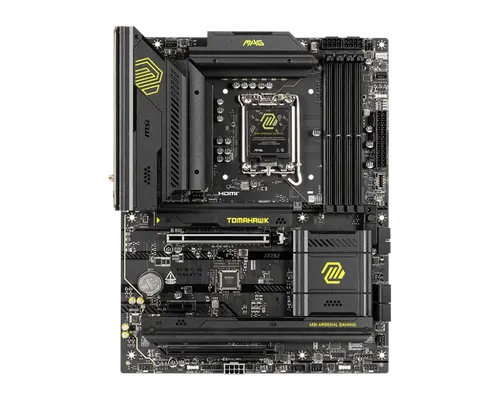

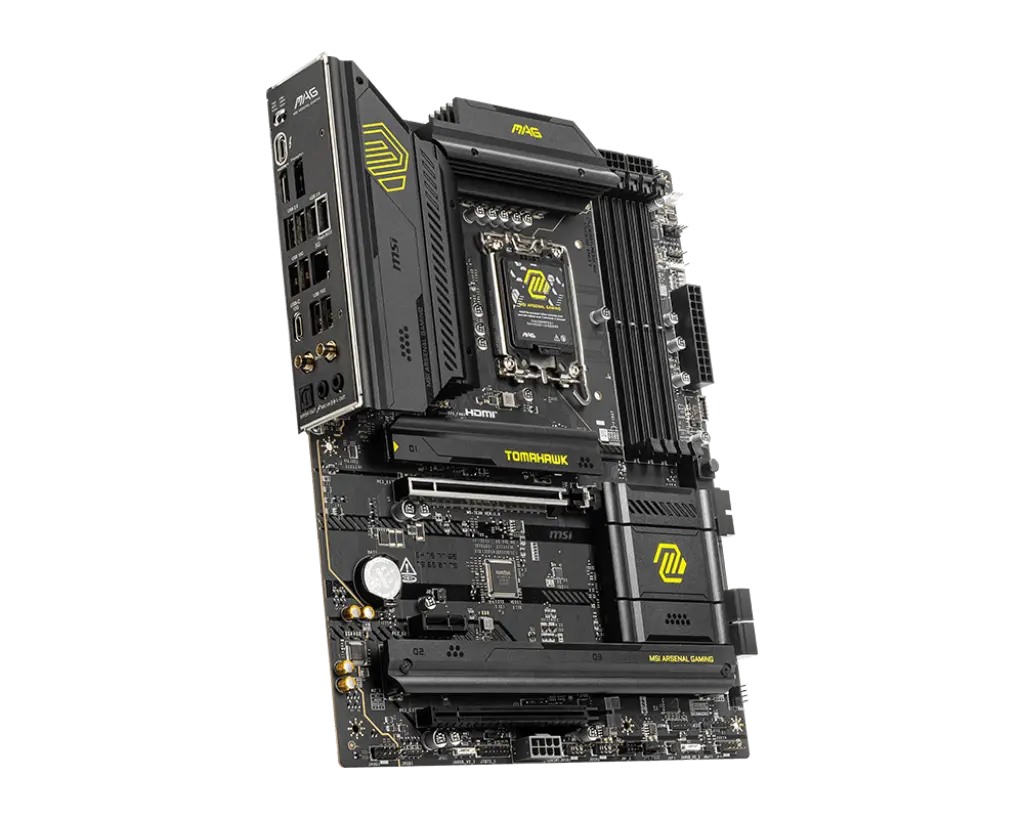

  • Placă de bază, MSI MAG B860 TOMAHAWK WIFI - 2

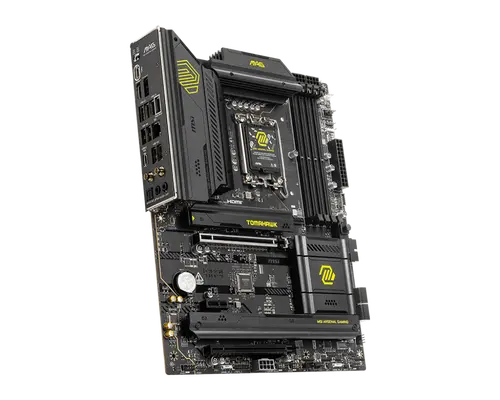

  • Placă de bază, MSI MAG B860 TOMAHAWK WIFI - 3
  • Placă de bază, MSI MAG B860 TOMAHAWK WIFI - 4
  • MSI
Placă de bază, MSI MAG B860 TOMAHAWK WIFI
Preț
€199 99 / 391 15 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 26€
+2 ani: + 38€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
CreditCredit
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.msi.com/Motherboard/MAG-B860-TOMAHAWK-WIFI/Overview
Graphics
1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Chipset
INTEL B860
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

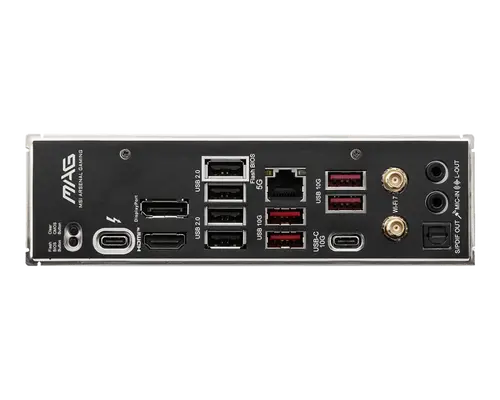

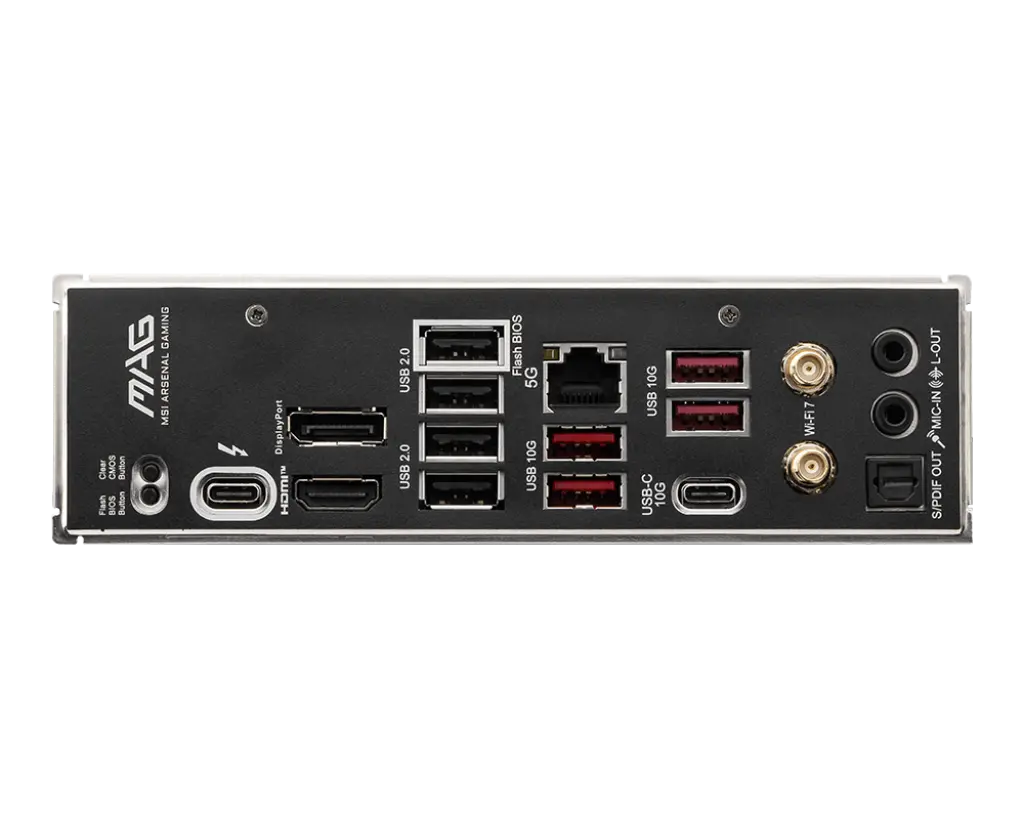

Rear panel I/O
Thunderbolt Resource CPU
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 40Gbps Type C (Rear)
• Clear CMOS Button
• DisplayPort
• USB 2.0 (Flash BIOS Port)
• 5G LAN
• USB 10Gbps Type-A
• Audio Connectors
• Flash BIOS Button
• Thunderbolt™ 4 40Gbps (Type-C)
• HDMI™
• USB 2.0
• USB 10Gbps Type-A
• USB 10Gbps Type-C
• Wi-Fi / Bluetooth
• S/PDIF-OUT
Connectors
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x OC dashboard connector(JDASH1)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Lan
Intel® Killer™ E5000 5Gbps LAN
Wireless
Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM
Form factor
ATX, 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
Vendor_urlhttps://www.msi.com/Motherboard/MAG-B860-TOMAHAWK-WIFI/Overview
ChipsetINTEL B860
OSSupport for Windows® 11 64-bit
Warranty36 Months
CPU's supportedSupports Intel® Core™ Ultra Processors (Series 2)
CPU's supportedLGA 1851
Memory typeSupports non-ECC, un-buffered memory
Memory typeMax. overclocking frequency:
Memory type4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory type• 2DPC 1R Max speed up to 6400+ MT/s
Memory typeSupports Dual-Controller Dual-Channel mode
Memory type• 1DPC 2R Max speed up to 7200+ MT/s
Memory type• 2DPC 2R Max speed up to 5600+ MT/s
Memory typeSupports Intel® POR Speed and JEDEC Speed
Memory typeSupports Memory Overclocking and Intel® XMP 3.0
Memory typeSupports CUDIMM
Memory typeMemory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Memory type• 1DPC 1R Max speed up to 9200+ MT/s
Form FactorATX, 243.84mmx304.8mm
Audio7.1-Channel High Definition Audio
AudioRealtek® ALC897 Codec
AudioSupports S/PDIF output
Rear panel I/O2x USB 5Gbps Type A (Front)
Rear panel I/O1x USB 10Gbps Type C (Front)
Rear panel I/O4x USB 2.0 (Rear)
Rear panel I/O4x USB 2.0 (Front)
Rear panel I/O1x USB 10Gbps Type C (Rear)
Rear panel I/O• Clear CMOS Button
Rear panel I/O• USB 10Gbps Type-A
Rear panel I/O• USB 2.0
Rear panel I/O• Wi-Fi / Bluetooth
Rear panel I/O• Audio connectors
Rear panel I/O• Flash BIOS Button
Rear panel I/O• HDMI™
Rear panel I/O• USB 10Gbps Type-C
Rear panel I/O1x Thunderbolt4 ports (Rear)
Rear panel I/OSupports up to 40Gbps transfer rate with Thunderbolt devices
Rear panel I/OSupports up to 20Gbps transfer rate with USB4 devices
Rear panel I/OSupports up to 10Gbps transfer rate with USB 3.2 devices
Rear panel I/OSupports up to 5V/3A,15W power charging
Rear panel I/OEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Rear panel I/OSupports up to 8K display
Rear panel I/O• DisplayPort
Rear panel I/O• 5G LAN
Rear panel I/O• Thunderbolt™ 4 40Gbps (Type-C)
Rear panel I/O1x USB 40Gbps Type C (Rear)
Rear panel I/OThunderbolt Resource CPU
Rear panel I/O4x USB 10Gbps Type A (Rear)
Rear panel I/O• USB 2.0 (Flash BIOS Port)
Rear panel I/O• S/PDIF-OUT
LANIntel® Killer™ E5000 5Gbps LAN
Expansion Slots1x PCI-E x1 slot
Expansion Slots2x PCI-E x16 slot
Expansion SlotsPCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Expansion SlotsPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Expansion SlotsPCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
WirelessThe Wireless module is pre-installed in the M.2 (Key-E) slot
WirelessSupports 802.11 a/ b/ g/ n/ ac/ ax/ be
WirelessSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
WirelessIntel® Killer™ BE1750x Wi-Fi 7
Graphics1x HDMI™
Graphics1x DisplayPort
Graphics1x Type-C DisplayPort
GraphicsSupport DisplayPort 1.4, maximum resolution of 4K 60Hz
GraphicsSupport HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz
GraphicsThunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Features4x EZ Debug LED
Features1x EZ Memory Detection LED
I/O2x USB 5Gbps Type A (Front)
I/O1x USB 10Gbps Type C (Front)
I/O4x USB 2.0 (Rear)
I/O4x USB 2.0 (Front)
I/O1x USB 10Gbps Type C (Rear)
I/O• Clear CMOS Button
I/O• USB 10Gbps Type-A
I/O• USB 2.0
I/O• Wi-Fi / Bluetooth
I/O• Audio connectors
I/O• Flash BIOS Button
I/O• HDMI™
I/O• USB 10Gbps Type-C
I/O1x USB 40Gbps Type C (Rear)
I/O4x USB 10Gbps Type A (Rear)
I/O1x Thunderbolt4 ports (Rear)
I/OSupports up to 40Gbps transfer rate with Thunderbolt devices
I/OSupports up to 20Gbps transfer rate with USB4 devices
I/OSupports up to 10Gbps transfer rate with USB 3.2 devices
I/OSupports up to 5V/3A,15W power charging
I/OEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
I/OSupports up to 8K display
I/O• DisplayPort
I/O• 5G LAN
I/O• Thunderbolt™ 4 40Gbps (Type-C)
I/OThunderbolt Resource CPU
I/O• USB 2.0 (Flash BIOS Port)
I/O• S/PDIF-OUT
Storage4x SATA 6G
Storage3x M.2
StorageM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
StorageSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
StorageM.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
StorageM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices
BluetoothSupports Bluetooth® 5.4**, MLO, 4KQAM
Connectors1x Power Connector(ATX_PWR)
Connectors1x CPU Fan
Connectors2x Front Panel (JFP)
Connectors1x Chassis Intrusion (JCI)
Connectors1x Front Audio (JAUD)
Connectors1x TPM pin header(Support TPM 2.0)
Connectors4x USB 2.0 ports
Connectors2x USB 5Gbps Type A ports
Connectors2x Power Connector(CPU_PWR)
Connectors1x Tuning Controller connector(JDASH)
Connectors2x RGB LED connector(JRGB)
Connectors1x USB 10Gbps Type C ports
Connectors3x Addressable V2 RGB LED connector (JARGB_V2)
Connectors5x System Fan
Connectors1x Combo Fan (Pump_Sys Fan)
Connectors1x EZ Conn-header (JAF_1)
Connectors1x Power Connector(PCIE_PWR 8pin)
Connectors1x Thunderbolt5 card connector(JTBT5, support RTD3)
Connectors1x OC dashboard connector(JDASH1)
Greutate0.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketLGA1851
Form FactorATX
ChipsetIntel B860
Memory TypeDDR5
Memory Slots (count)4
Max Memory (GB)256
M.2 Slots (count)4
SATA Ports (count)4
PCIe x16 Slots (count)2
Wi-Fi Built-inWi-Fi 7
LAN Speed2.5 Gbps
USB-C Ports (count)2
RGB LightingYes
Greutate0.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка MSI MAG B860 TOMAHAWK WIFI

Проектирана за процесори Intel Core Ultra (LGA1851), MSI MAG B860 TOMAHAWK WIFI предлага стабилно захранване и усъвършенстван термичен дизайн за надеждна производителност. С поддръжка на PCIe 5.0, DDR5 памет и вграден Wi-Fi 7, тя е готова за игри и продуктивност от ново поколение.

Ключови Предимства

  • Свързаност от ново поколение — PCIe 5.0 x16 слот и M.2 Gen5 за ултрабърза графика и съхранение.
  • Поддръжка на DDR5 памет — До 256GB с възможности за високоскоростен овърклок.
  • Вграден Wi-Fi 7 и 2.5G LAN — Светкавични безжични и кабелни скорости за безпроблемно онлайн игри.
  • Разширен дизайн на радиаторите — Големи VRM радиатори и M.2 Shield Frozr поддържат компонентите хладни при натоварване.
  • Издръжливост от серия MAG — Компоненти с военен клас и подсилени PCIe слотове осигуряват дългосрочна надеждност.

Технически Спецификации

СпецификацияСтойност
СокетLGA1851
Форм факторATX
ЧипсетIntel B860
Тип паметDDR5
Слотове за памет4
Максимална памет256 GB
M.2 слотове4
SATA портове4
PCIe x16 слотове2
Вграден Wi-FiWi-Fi 7
Скорост на LAN2.5 Gbps
USB-C портове2
RGB подсветкаДа

Какво има в кутията

  • Дънна платка MSI MAG B860 TOMAHAWK WIFI
  • Ръководство за потребителя
  • I/O щит
  • SATA кабели (2)
  • Wi-Fi антена
  • M.2 винтове и дистанционери
  • DVD с драйвери
SKU: 911-7E39-001 © 2026 Xtreme.bg
Huawei GT 7
ViewFinity

Abonați-vă la newsletterul nostru

Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.

Dacă aveți întrebări, contactați-ne!

info@xtreme.bg

+359 886 177 222
ЕКСТРИЙМ.БГ ООД
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2

Informații

Utilizator

Metodă de plată

  • Plata la livrare
  • Card de credit/debit
    MastercardVisaGoogle PayApple Pay
  • Transfer bancar
  • În rate prin PB Personal Finance
Copyright © 2023 Xtreme.bg - Toate drepturile rezervate. Magazin online care rulează pe XCore
Închide
