- ASROCK
Preț
€118 02 / 230 83 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asrock.com/MB/AMD/B850M%20Pro-A/index.asp
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Chipset
AMD B850
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15? Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

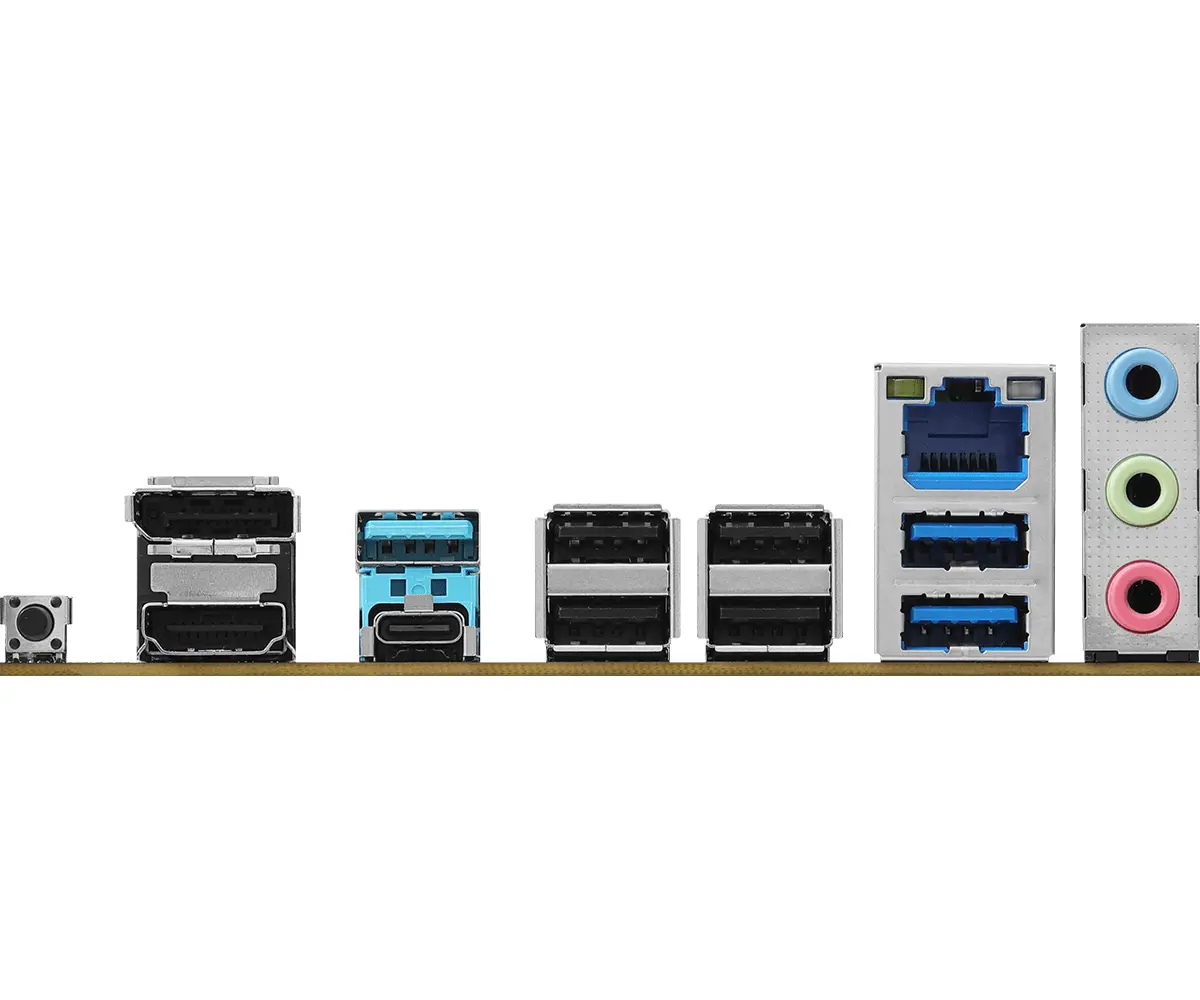

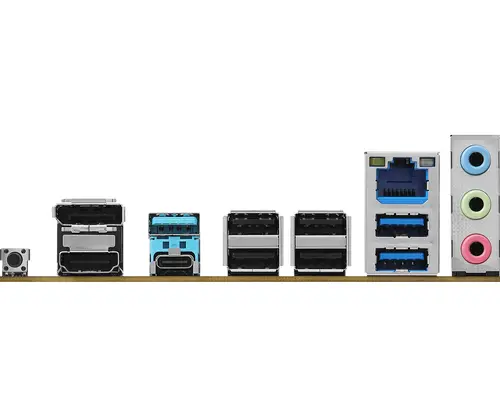

Rear panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
USB
CPU:
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Connectors
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asrock.com/MB/AMD/B850M%20Pro-A/index.asp |
| Chipset | AMD B850 |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| OS | Software |
| OS | - ASRock Motherboard Utility (A-Tuning) |
| OS | UEFI |
| OS | - ASRock Full HD UEFI |
| OS | - ASRock Auto Driver Installer |
| OS | - ASRock Instant Flash |
| OS | - ASRock Dragon 2.5G LAN Software |
| OS | - ASRock Polychrome SYNC |
| OS | - ASRock EZ Mode |
| Warranty | 36 Months |
| CPU's supported | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 2 x Antenna Mounting Points |
| Rear panel I/O | 4 x USB 2.0 Ports |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | 1 x BIOS Flashback Button |
| Rear panel I/O | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | 1 x DisplayPort 1.4 |
| Rear panel I/O | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| Rear panel I/O | 2 x USB 3.2 Gen1 Ports |
| Rear panel I/O | 1 x USB 3.2 Gen2 Type-C Port |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Dragon RTL8125BG |
| LAN | Smart Auto Adjust Bandwidth Control |
| LAN | Visual User Friendly UI |
| LAN | Visual Network Usage Statistics |
| LAN | Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | User Customized Priority Control |
| LAN | Supports Dragon 2.5G LAN Software |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* Chipset: |
| Expansion Slots | - 15? Gold Contact in VGA PCIe Slot (PCIE1) |
| Graphics | - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| Features | Superb Productivity |
| Features | - Dual Channel DDR5 |
| Features | Rock-Solid Durability |
| Features | EZ Update |
| Features | - BIOS Flashback Button |
| Features | - ASRock Auto Driver Installer |
| Features | EZ Troubleshooter |
| Features | Ultrafast Connectivity |
| Features | - PCIe Gen5 (Graphics, M.2) |
| Features | - 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC |
| Features | - 2.5G LAN |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| I/O | 2 x Antenna Mounting Points |
| I/O | 1 x HDMI Port |
| I/O | 1 x DisplayPort 1.4 |
| I/O | HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | 4 x USB 2.0 Ports |
| I/O | 1 x RJ-45 LAN Port |
| I/O | 1 x BIOS Flashback Button |
| I/O | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| I/O | 2 x USB 3.2 Gen1 Ports |
| I/O | 1 x USB 3.2 Gen2 Type-C Port |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Storage | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Connectors | 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| Connectors | 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) |
| USB | CPU: |
| USB | Chipset: |
| USB | - 1 x USB 3.2 Gen1 Type-C (Front) |
| USB | - 8 x USB 2.0 (4 Rear, 4 Front) |
| USB | - 1 x USB 3.2 Gen2 Type-C (Rear) |
| USB | - 1 x USB 3.2 Gen2 Type-A (Rear) |
| USB | - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) |
| Greutate | 1.20kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
| Chipset | AMD B850 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 128 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | Yes |
| Greutate | 1.20kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Дънна платка ASRock B850M PRO-A – AM5, DDR5, PCIe 5.0
Извлечете максимума от процесорите AMD Ryzen 7000/8000/9000 с дънната платка ASRock B850M PRO-A. Този Micro-ATX модел поддържа DDR5 памет, PCIe 5.0 за графики и съхранение, както и стабилно захранване за надеждна работа.
Ключови Предимства
- Платформа AMD AM5 — Поддръжка на най-новите AMD Ryzen процесори с PCIe 5.0 и DDR5.
- DDR5 памет — До 7200+ MHz (OC) за изключително бърз достъп до данни.
- PCIe 5.0 x16 слот — Бъдеще за най-новите видеокарти.
- Два M.2 слота — Един PCIe 5.0 и един PCIe 4.0 за ултрабързи SSD.
- 2.5G LAN — Високоскоростна мрежа за игри и стрийминг.
- Пълна свързаност — USB-C, HDMI, DisplayPort и множество USB портове.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | Micro-ATX |
| Чипсет | AMD B850 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 128 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Да |
Какво има в кутията
- Дънна платка ASRock B850M PRO-A
- Ръководство за потребителя
- Поддържащ CD
- 2 x SATA кабела
- I/O скоба
- M.2 винтове
