- ASROCK
Preț
€173 92 / 340 16 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asrock.com/MB/Intel/B860M%20Steel%20Legend%20WiFi/index.asp
Graphics
Intel® Xe LPG Graphics Architecture
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Chipset
Intel® B860
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x
Rear panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol
40Gb/s for Thunderbolt™ protocol)
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
4 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)vvv
USB
CPU:
- 1 x Thunderbolt™ 4 Type-C (Rear) Chipset:
- 1 x USB 3.2 Gen2 Type-C (Front)
- 2 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Connectors
1 x Thermistor Cable Header
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Nahimic Audio
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/ b/ g/ n/ ac/ ax/ axe
Supports Dual-Band 2x2 with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3
Supports MU-MIMO
Bluetooth
5.3
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
2oz Copper PCB
OS
Microsoft Windows® 11 64-bit
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asrock.com/MB/Intel/B860M%20Steel%20Legend%20WiFi/index.asp |
| Chipset | Intel® B860 |
| OS | Microsoft Windows® 11 64-bit |
| OS | Software |
| OS | - ASRock Motherboard Utility (A-Tuning) |
| OS | UEFI |
| OS | - ASRock Full HD UEFI |
| OS | - ASRock Auto Driver Installer |
| OS | - ASRock Instant Flash |
| OS | - ASRock Dragon 2.5G LAN Software |
| OS | - ASRock Polychrome SYNC |
| OS | - ASRock EZ Mode |
| OS | - ASRock My Favorites in UEFI |
| Warranty | 36 Months |
| CPU's supported | Supports Intel® Hybrid Technology |
| CPU's supported | Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | Supports Intel® Adaptive Boost Technology (ABT) |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| CPU's supported | Integrated NPU for dedicated AI acceleration |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports Clocked Unbuffered DIMM (CUDIMM) |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Memory type | Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC) |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Form Factor | 2oz Copper PCB |
| Audio | Nahimic Audio |
| Audio | Individual PCB Layers for R/L Audio Channel |
| Audio | Impedance Sensing on Rear Out port |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | 1 x BIOS Flashback Button |
| Rear panel I/O | 2 x Antenna Ports |
| Rear panel I/O | 1 x DisplayPort 1.4 |
| Rear panel I/O | 1 x Optical SPDIF Out Port |
| Rear panel I/O | 1 x Line Out Jack (Gold Audio Jack) |
| Rear panel I/O | 2 x USB 2.0 Ports |
| Rear panel I/O | 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) |
| Rear panel I/O | 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol |
| Rear panel I/O | 40Gb/s for Thunderbolt™ protocol) |
| Rear panel I/O | 4 x USB 3.2 Gen1 Ports |
| Rear panel I/O | 1 x Microphone Input Jack (Gold Audio Jack)vvv |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Dragon RTL8125BG |
| LAN | Smart Auto Adjust Bandwidth Control |
| LAN | Visual User Friendly UI |
| LAN | Visual Network Usage Statistics |
| LAN | Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | User Customized Priority Control |
| LAN | Supports Dragon 2.5G LAN Software |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Wireless | 802.11axe Wi-Fi 6E Module |
| Wireless | 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology |
| Wireless | Supports MU-MIMO |
| Wireless | Supports Dual-Band 2x2 with extended 6GHz band* support |
| Wireless | Supports IEEE 802.11a/ b/ g/ n/ ac/ ax/ axe |
| Wireless | Supports Bluetooth 5.3 |
| Graphics | - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Graphics | Intel® Xe LPG Graphics Architecture |
| Graphics | - 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Features | Superb Productivity |
| Features | - Dual Channel DDR5 |
| Features | Rock-Solid Durability |
| Features | EZ Update |
| Features | - BIOS Flashback Button |
| Features | - ASRock Auto Driver Installer |
| Features | EZ Troubleshooter |
| Features | Ultrafast Connectivity |
| Features | - 2.5G LAN, 802.11axe Wi-Fi 6E Module |
| Features | - PCIe Gen5 (Graphics, M.2) |
| Features | - Flexible Integrated I/O Shield |
| Features | - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) |
| Features | - Thunderbolt™ 4 Type-C Port (40 Gb/s) |
| Features | - 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| I/O | 1 x HDMI Port |
| I/O | 1 x DisplayPort 1.4 |
| I/O | 2 x Antenna Ports |
| I/O | 1 x RJ-45 LAN Port |
| I/O | 1 x BIOS Flashback Button |
| I/O | 1 x Optical SPDIF Out Port |
| I/O | 1 x Line Out Jack (Gold Audio Jack) |
| I/O | 2 x USB 2.0 Ports |
| I/O | 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) |
| I/O | 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol |
| I/O | 40Gb/s for Thunderbolt™ protocol) |
| I/O | 4 x USB 3.2 Gen1 Ports |
| I/O | 1 x Microphone Input Jack (Gold Audio Jack)vvv |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Bluetooth | 5.3 |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 1 x Thermistor Cable Header |
| Connectors | 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| USB | CPU: |
| USB | - 2 x USB 3.2 Gen2 Type-A (Rear) |
| USB | - 6 x USB 2.0 (2 Rear, 4 Front) |
| USB | - 1 x Thunderbolt™ 4 Type-C (Rear) Chipset: |
| USB | - 1 x USB 3.2 Gen2 Type-C (Front) |
| USB | - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) |
| Greutate | 1.53kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Memory Slots (count) | 4 |
| Max Memory (GB) | 256 |
| M.2 Slots (count) | 3 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 2 |
| RGB Lighting | Yes |
| Greutate | 1.53kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
ASRock B860M Steel Legend WiFi – Следващо поколение с DDR5 и PCIe 5.0
Извлечете максимума от процесорите Intel Core Ultra с дънната платка ASRock B860M Steel Legend WiFi. Базирана на чипсета Intel B860, тя предлага поддръжка на DDR5 памет, PCIe 5.0 свързаност и вграден Wi-Fi 6E за безупречен гейминг и продуктивност.
Ключови Предимства
- DDR5 и PCIe 5.0 — Насладете се на двойно по-голяма честотна лента на паметта и светкавични скорости за GPU и SSD.
- Вграден Wi-Fi 6E — Безжична мрежа с ниско закъснение и поддръжка на 6 GHz лента.
- Издръжливост Steel Legend — Усилени PCIe слотове, премиум кондензатори и стабилен термичен дизайн за дълготрайна надеждност.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1851 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B860 |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 256 GB |
| M.2 слотове | 3 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 2 |
| RGB подсветка | Да |
Какво има в кутията

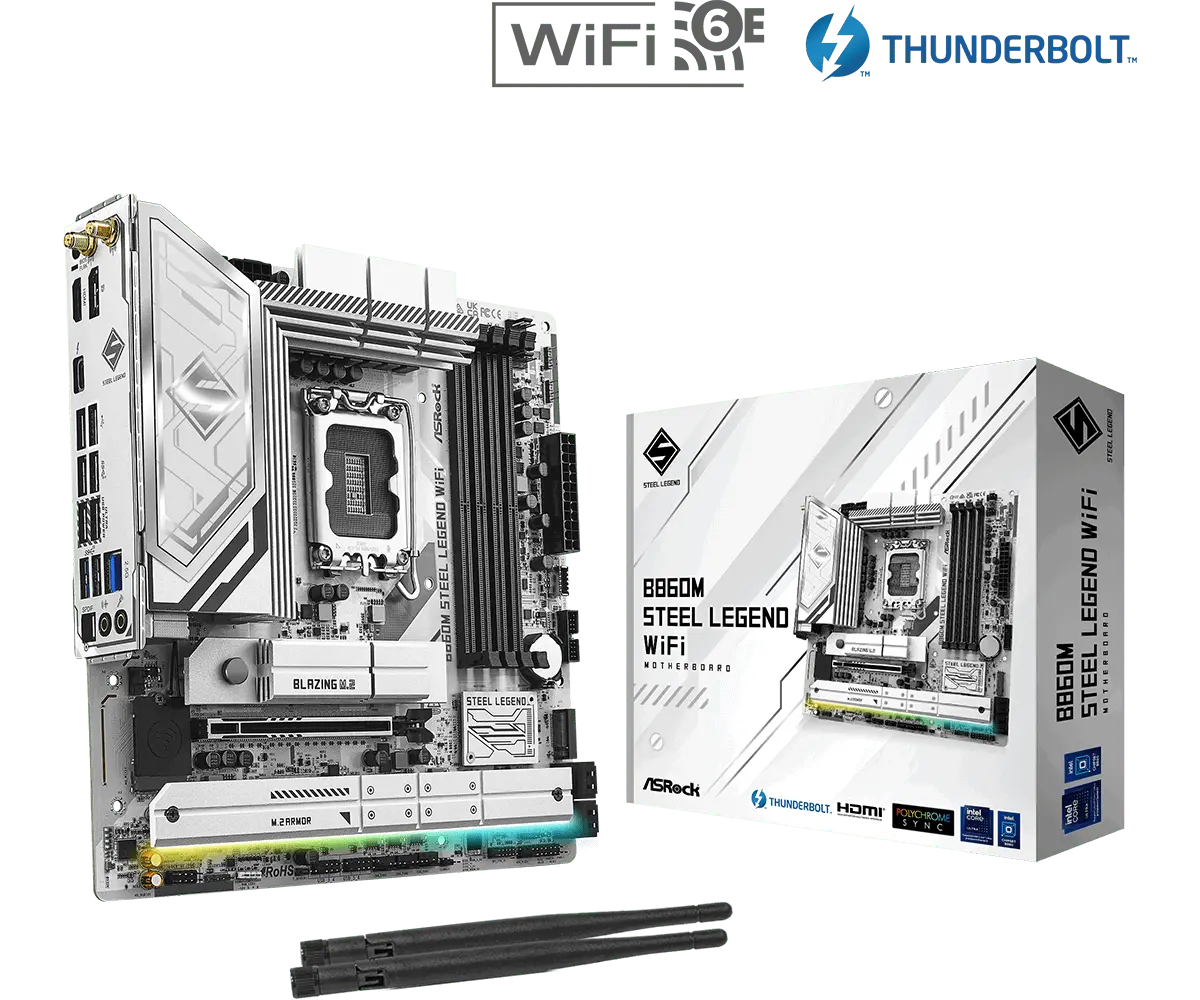

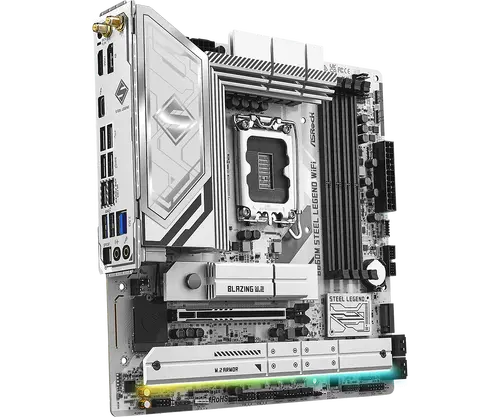

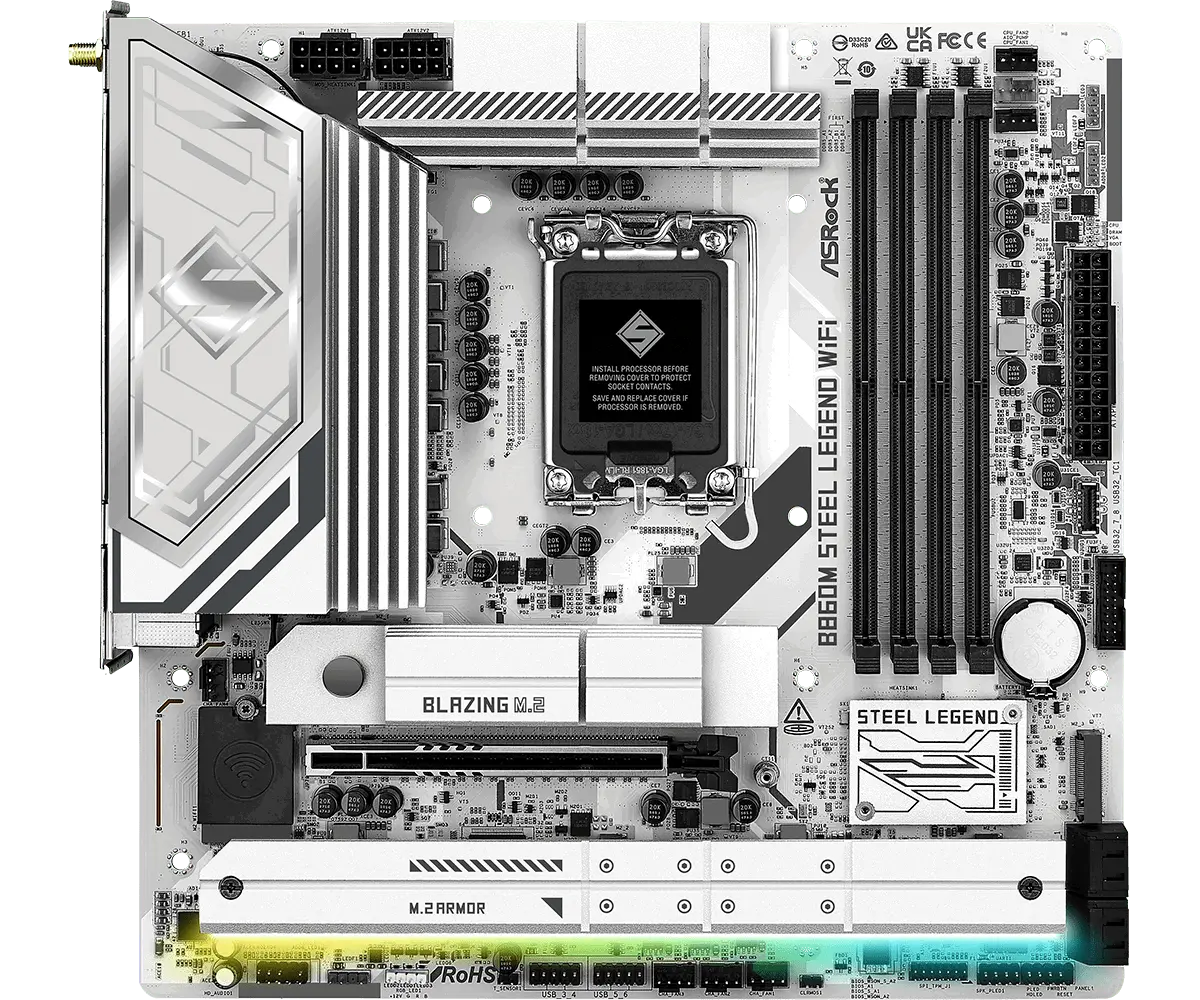

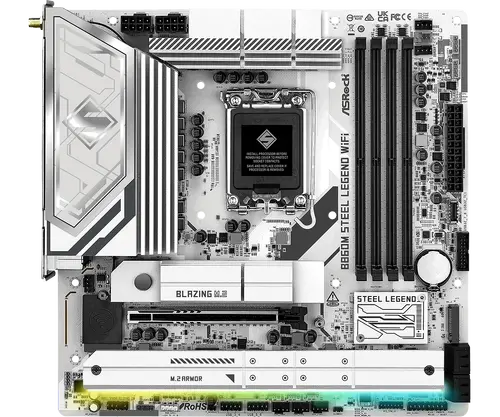

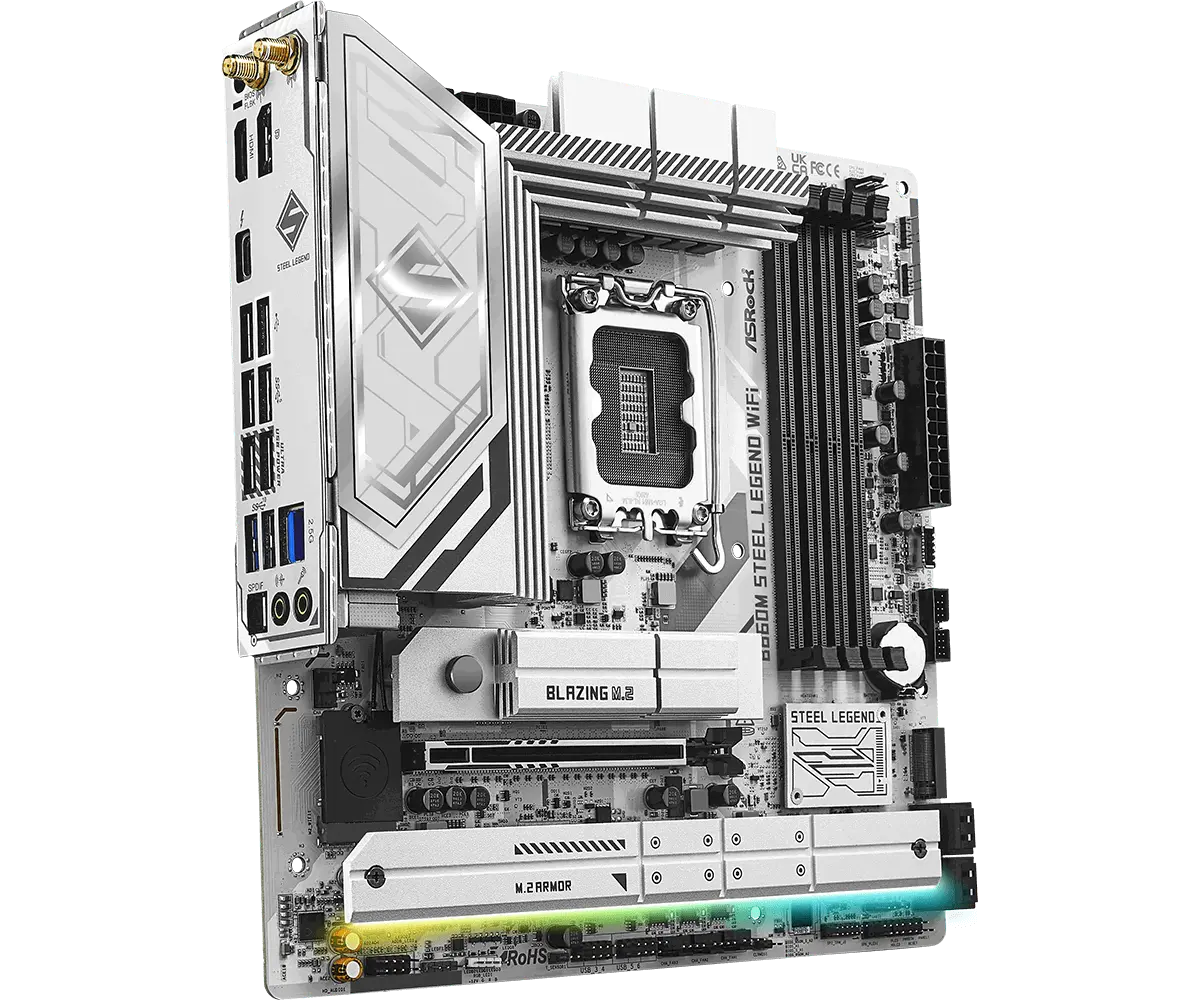

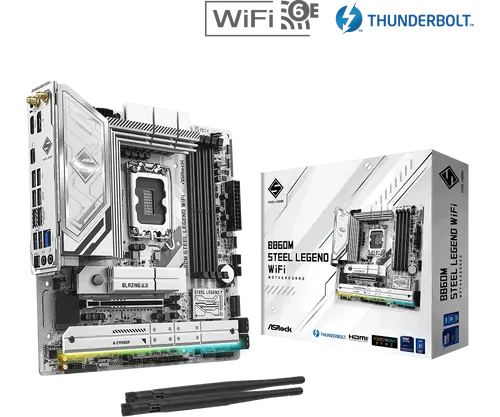

- Дънна платка ASRock B860M Steel Legend WiFi
- Ръководство за потребителя
- Поддържащ DVD диск
- 2 x SATA кабела
- Wi-Fi антена
- I/O панел
- M.2 винтове
Abonați-vă la newsletterul nostru
Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2
Metodă de plată
- Plata la livrare
- Card de credit/debit
- Transfer bancar
- În rate prin PB Personal Finance
