- ASROCK
Preț
€131 50 / 257 19 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asrock.com/MB/Intel/B860%20Pro-A/index.asp#Overview
Graphics
Intel® Xe LPG Graphics Architecture
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
CPU's supported
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Integrated NPU for dedicated AI acceleration
Chipset
Intel® B860
Expansion slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
Supports Clocked Unbuffered DIMM (CUDIMM)
Max. capacity of system memory: 256GB
Supports Intel® Extreme Memory Profile (XMP) 3.0x

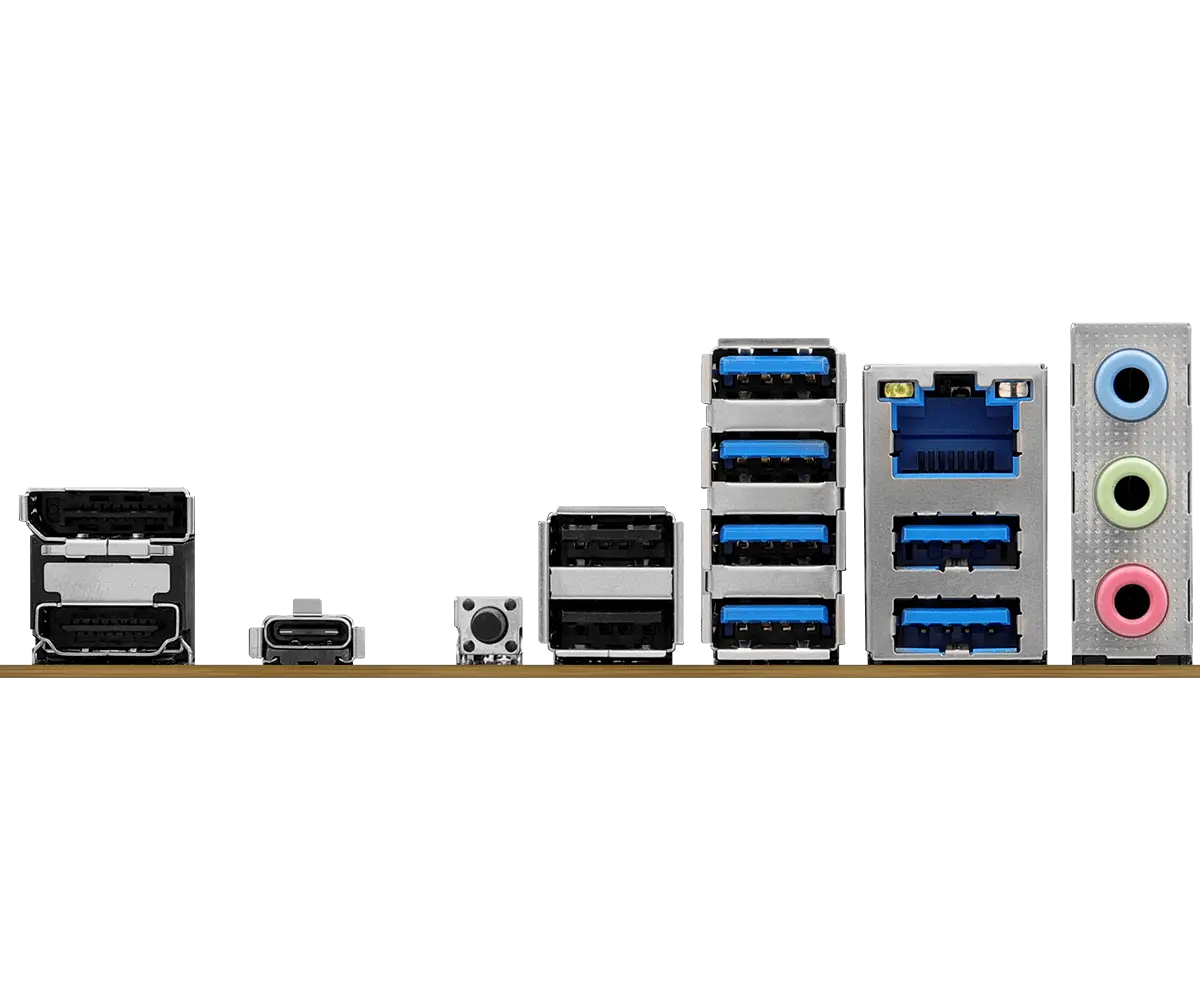

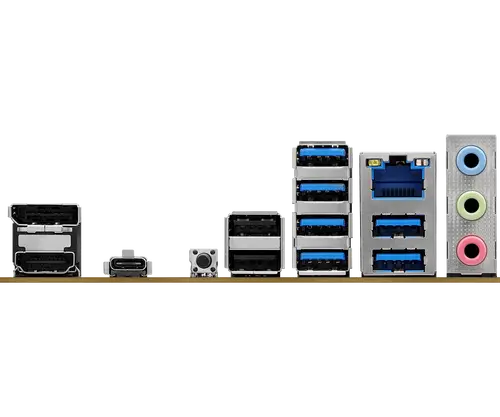

Rear panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
6 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
USB
CPU:
- 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 8 x USB 3.2 Gen1 (6 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
Connectors
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Lan
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS
Microsoft Windows® 11 64-bit
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asrock.com/MB/Intel/B860%20Pro-A/index.asp#Overview |
| Chipset | Intel® B860 |
| OS | Microsoft Windows® 11 64-bit |
| OS | Software |
| OS | - ASRock Motherboard Utility (A-Tuning) |
| OS | UEFI |
| OS | - ASRock Full HD UEFI |
| OS | - ASRock Auto Driver Installer |
| OS | - ASRock Instant Flash |
| OS | - ASRock Dragon 2.5G LAN Software |
| OS | - ASRock Polychrome SYNC |
| OS | - ASRock EZ Mode |
| OS | - ASRock My Favorites in UEFI |
| Warranty | 36 Months |
| CPU's supported | Supports Intel® Hybrid Technology |
| CPU's supported | Supports Intel® Turbo Boost Max 3.0 Technology |
| CPU's supported | Supports Intel® Thermal Velocity Boost (TVB) |
| CPU's supported | Supports Intel® Adaptive Boost Technology (ABT) |
| CPU's supported | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| CPU's supported | Integrated NPU for dedicated AI acceleration |
| Memory type | Dual Channel DDR5 Memory Technology |
| Memory type | 4 x DDR5 DIMM Slots |
| Memory type | Max. capacity of system memory: 256GB |
| Memory type | Supports Clocked Unbuffered DIMM (CUDIMM) |
| Memory type | Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Memory type | Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC) |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Rear panel I/O | 1 x HDMI port |
| Rear panel I/O | 2 x Antenna Mounting Points |
| Rear panel I/O | 1 x RJ-45 LAN Port |
| Rear panel I/O | 1 x BIOS Flashback Button |
| Rear panel I/O | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | 1 x DisplayPort 1.4 |
| Rear panel I/O | 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) |
| Rear panel I/O | 2 x USB 2.0 Ports |
| Rear panel I/O | 6 x USB 3.2 Gen1 Ports |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | Dragon RTL8125BG |
| LAN | Smart Auto Adjust Bandwidth Control |
| LAN | Visual User Friendly UI |
| LAN | Visual Network Usage Statistics |
| LAN | Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | User Customized Priority Control |
| LAN | Supports Dragon 2.5G LAN Software |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Expansion Slots | - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode |
| Expansion Slots | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz |
| Graphics | Intel® Xe LPG Graphics Architecture |
| Features | Superb Productivity |
| Features | - Dual Channel DDR5 |
| Features | Rock-Solid Durability |
| Features | EZ Update |
| Features | - BIOS Flashback Button |
| Features | - ASRock Auto Driver Installer |
| Features | EZ Troubleshooter |
| Features | Ultrafast Connectivity |
| Features | - PCIe Gen5 (Graphics, M.2) |
| Features | - 2.5G LAN |
| Features | - 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| I/O | 2 x Antenna Mounting Points |
| I/O | 1 x HDMI Port |
| I/O | 1 x DisplayPort 1.4 |
| I/O | HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | 1 x RJ-45 LAN Port |
| I/O | 1 x BIOS Flashback Button |
| I/O | 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) |
| I/O | 2 x USB 2.0 Ports |
| I/O | 6 x USB 3.2 Gen1 Ports |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| Storage | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x Power LED and Speaker Header |
| Connectors | 1 x 24 pin ATX Power Connector |
| Connectors | 1 x Front Panel Audio Connector |
| Connectors | 1 x RGB LED Header |
| Connectors | 3 x Addressable LED Headers |
| Connectors | 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) |
| Connectors | 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) |
| Connectors | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Connectors | 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Connectors | 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Connectors | 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) |
| USB | CPU: |
| USB | - 1 x USB 3.2 Gen1 Type-C (Front) |
| USB | - 6 x USB 2.0 (2 Rear, 4 Front) |
| USB | - 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset: |
| USB | - 8 x USB 3.2 Gen1 (6 Rear, 2 Front) |
| Greutate | 0.90kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | LGA1851 |
| Form Factor | ATX |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 96 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | No |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Greutate | 0.90kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Дънна платка ASRock B860 PRO-A LGA1851 – Следващо поколение за Intel Core Ultra
Извлечете максималната производителност от процесорите Intel Core Ultra с дънната платка ASRock B860 PRO-A. Базирана на сокет LGA1851 и чипсет Intel B860, тя предлага стабилно захранване, поддръжка на DDR5 памет и модерни връзки за игри и работа.
Ключови Предимства
- Готовност за Intel LGA1851 – Поддържа най-новите процесори Intel Core Ultra за върхова производителност.
- Поддръжка на DDR5 – Двуканална DDR5 с възможност за овърклок за по-бърз достъп до данни и плавна работа.
- PCIe 5.0 x16 слот – Един PCIe 5.0 x16 слот за най-бързите графични карти и бъдещи ъпгрейди.
- Два M.2 слота – Два M.2 слота с PCIe 4.0 x4 поддръжка за ултра-бързи SSD дискове.
- 2.5 GbE LAN – Високоскоростна мрежова връзка за безпроблемно онлайн gaming и трансфери.
- Разнообразни връзки – USB-C, USB 3.2 Gen2, HDMI, DisplayPort и други за гъвкавост.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1851 |
| Форм фактор | ATX |
| Чипсет | Intel B860 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 96 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Вграден Wi-Fi | Не |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 1 |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASRock B860 PRO-A
- Ръководство за потребителя
- I/O щит
- 2 x SATA кабела
- M.2 винтове
