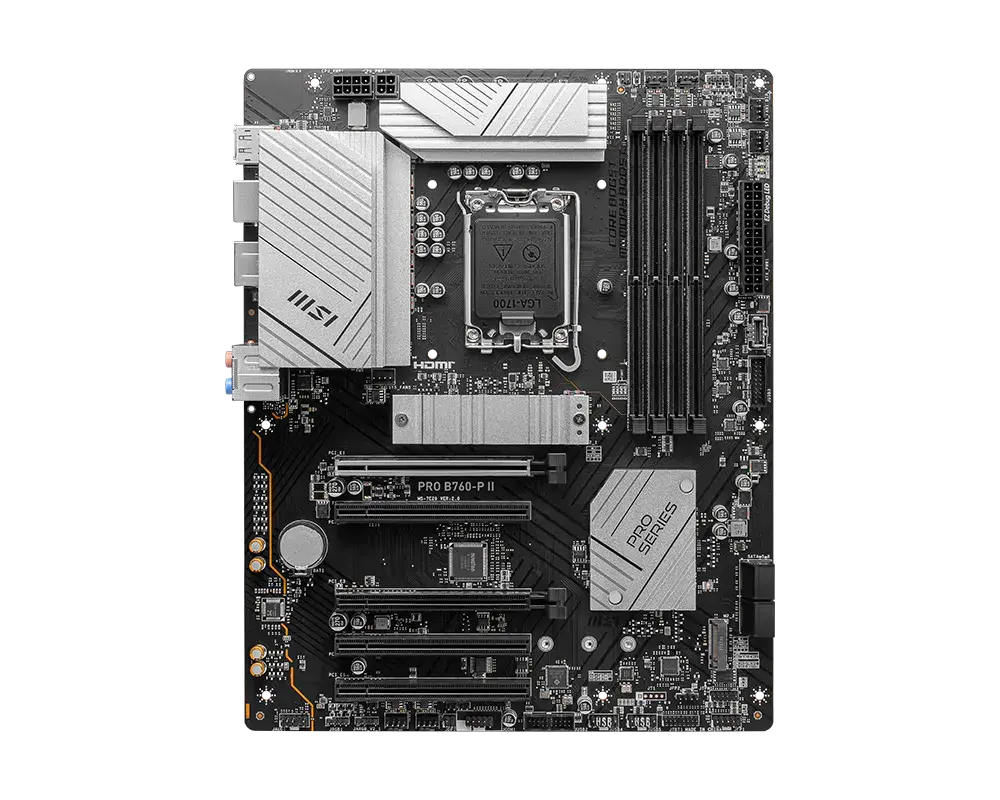

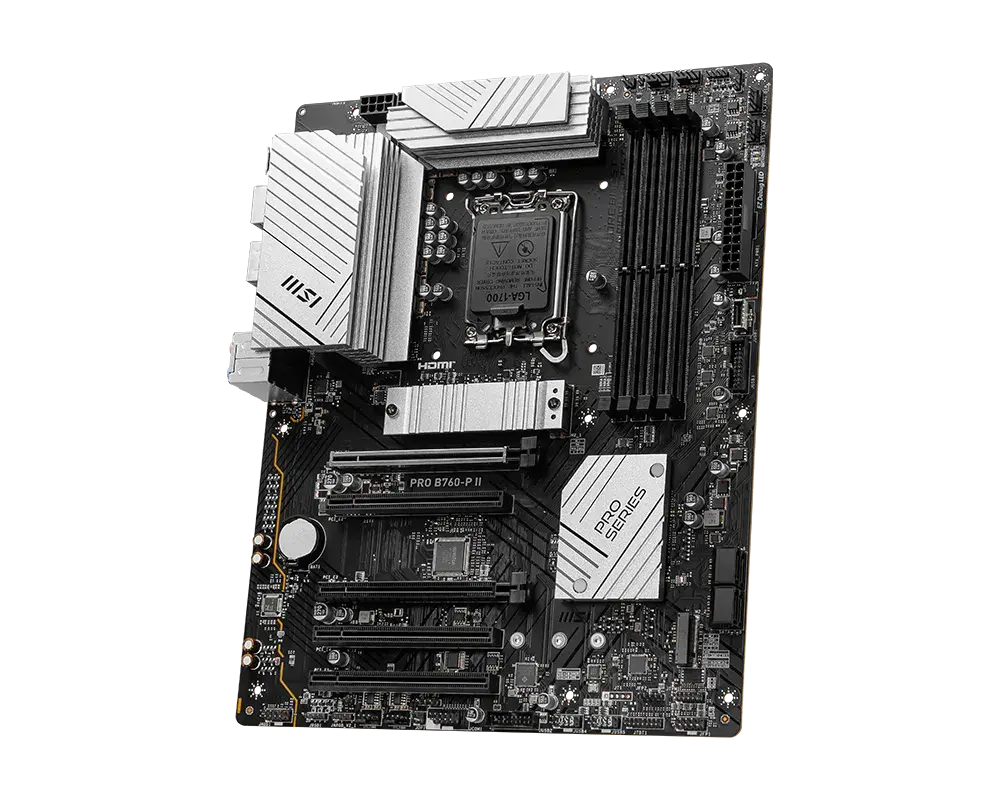

Placă de bază, MSI PRO B760-P II

  • Placă de bază, MSI PRO B760-P II - 1
  • Placă de bază, MSI PRO B760-P II - 2
  • Placă de bază, MSI PRO B760-P II - 3
  • Placă de bază, MSI PRO B760-P II - 4
  • Placă de bază, MSI PRO B760-P II - 5
  • MSI
Placă de bază, MSI PRO B760-P II
Preț
€99 00 / 193 63 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 13€
+2 ani: + 19€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.msi.com/Motherboard/PRO-B760-P-II/Overview
Model
PRO B760-P II
Socket
LGA 1700
Graphics
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
CPU's supported
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Chipset
INTEL B760
Expansion slots
5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Memory type
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7000+(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

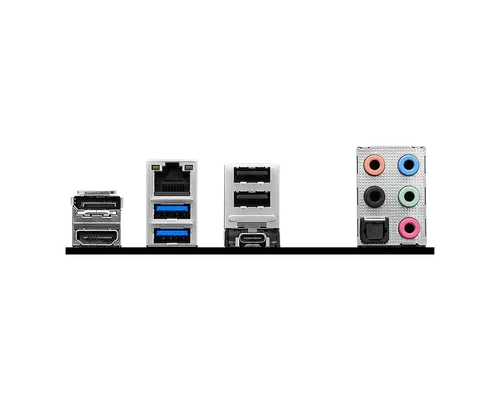

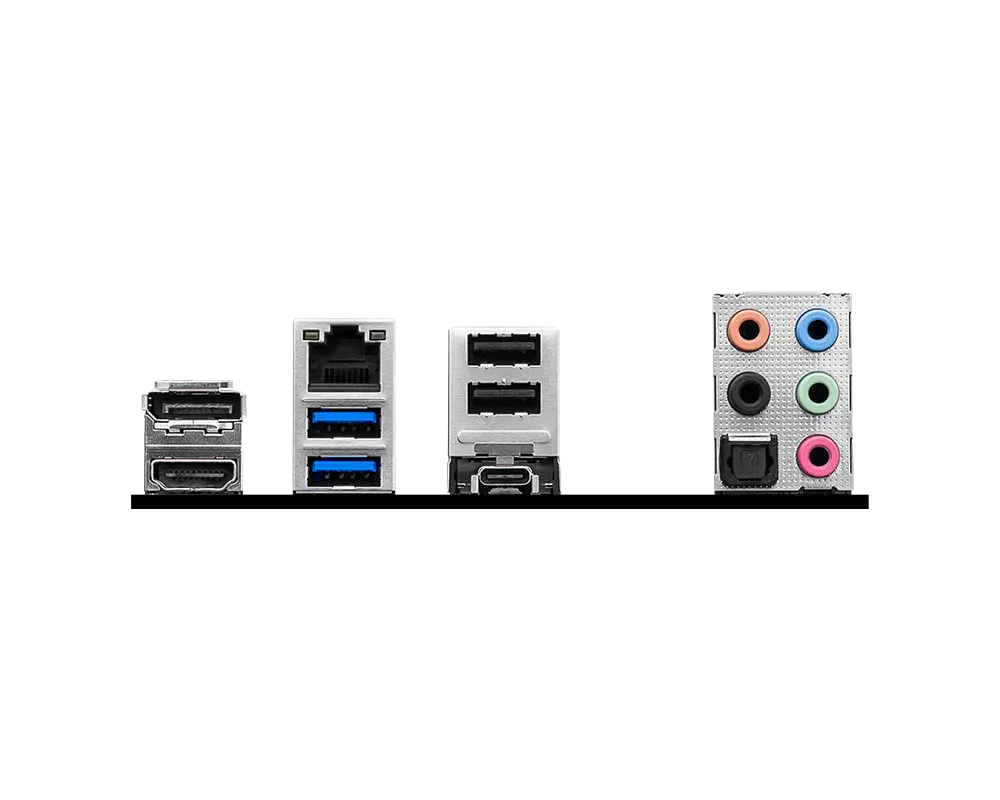

Rear panel I/O
DisplayPort
2.5G LAN
USB 2.0
Audio Connectors
HDMI™
USB 5Gbps (Type-A)
USB 10Gbps (Type-C)
S/PDIF-OUT
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type C (Rear)
Connectors
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Lan
Realtek® RTL8125BG 2.5G LAN
BIOS
1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
Form factor
ATX, 243.84mmx304.8mm
OS
Support for Windows® 11 64-bit, Windows® 10 64-bit
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
SocketLGA 1700
Vendor_urlhttps://www.msi.com/Motherboard/PRO-B760-P-DDR4-II/Overview
Vendor_urlhttps://www.msi.com/Motherboard/PRO-B760-P-II/Overview
ChipsetINTEL B760
OSSupport for Windows® 11 64-bit, Windows® 10 64-bit
Warranty36 Months
CPU's supportedSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
CPU's supportedSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Memory typeSupports Dual-Channel mode
Memory typeSupports non-ECC, un-buffered memory
Memory typeMax. overclocking frequency:
Memory type• 2DPC 1R Max speed up to 6000+ MHz
Memory type4x DDR5, Maximum Memory Capacity 256GB
Memory type• 1DPC 2R Max speed up to 6400+ MHz
Memory typeSupports Intel® XMP 3.0 OC
Memory typeSupports Dual-Controller Dual-Channel mode
Memory type• 2DPC 2R Max speed up to 5600+ MHz
Memory typeMemory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Memory typeMemory Support: 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Memory type• 1DPC 1R Max speed up to 7000+ MHz
Memory type4x DDR4, Maximum Memory Capacity 128GB
Memory type• 1DPC 2R Max speed up to 4800+ MHz
Memory type• 2DPC 1R Max speed up to 4400+ MHz
Memory type• 2DPC 2R Max speed up to 4000+ MHz
Memory typeSupports Intel® Extreme Memory Profile (XMP)
Memory typeMemory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)
Memory type(4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)
Memory type(3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)
Memory type(2400(JEDEC)/ 2133(JEDEC)
Memory type• 1DPC 1R Max speed up to 5333+ MHz
Form FactorATX, 243.84mmx304.8mm
Form FactorATX 243.84mmx304.8mm
Form FactorATX Form Factor •9.6 in. x 12 in. (244 mm x 304 mm)
Audio7.1-Channel High Definition Audio
AudioRealtek® ALC897 Codec
AudioSupports S/PDIF output
Rear panel I/OAudio Connectors
Rear panel I/OHDMI™
Rear panel I/ODisplayPort
Rear panel I/OUSB 2.0
Rear panel I/O2.5G LAN
Rear panel I/O1x Power Connector(ATX_PWR)
Rear panel I/O1x CPU Fan
Rear panel I/O2x Front Panel (JFP)
Rear panel I/O1x Chassis Intrusion (JCI)
Rear panel I/O1x Front Audio (JAUD)
Rear panel I/O1x Com Port (JCOM)
Rear panel I/O1x TPM pin header(Support TPM 2.0)
Rear panel I/O4x USB 2.0 ports
Rear panel I/OUSB 5Gbps (Type-A)
Rear panel I/OUSB 10Gbps (Type-C)
Rear panel I/O2x USB 5Gbps Type A (Rear)
Rear panel I/O1x Pump Fan
Rear panel I/OS/PDIF-Out
Rear panel I/O4x USB 2.0 (Front)
Rear panel I/O1x USB 5Gbps Type C (Front)
Rear panel I/O1x USB 10Gbps Type C (Rear)
Rear panel I/O4x USB 5Gbps Type A (Front)
Rear panel I/O2x USB 2.0 (Rear)
Rear panel I/O2x Power Connector(CPU_PWR)
Rear panel I/O5x System Fan
Rear panel I/O1x TBT connector (JTBT, supports RTD3)
Rear panel I/O2x Addressable V2 RGB LED connector (JARGB_V2)
Rear panel I/O2x RGB LED connector(JRGB)
Rear panel I/O4x USB 5Gbps Type A ports
Rear panel I/O1x USB 5Gbps Type C ports
LANRealtek® RTL8125BG 2.5G LAN
ModelPRO B760-P II
Expansion SlotsPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
Expansion SlotsPCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion SlotsPCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Expansion Slots5x PCI-E x16 slot
Expansion SlotsPCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion SlotsPCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion Slots5x PCIe x16 slots
Expansion Slots• PCI_E1 slot (From CPU)
Expansion Slots• Supports PCIe 4.0 x16
Expansion Slots• PCI_E2 slot (From B760 chipset)
Expansion Slots• Supports PCIe 3.0 x1
Expansion Slots• PCI_E3 slot (From B760 chipset)
Expansion Slots• Supports PCIe 4.0 x4
Expansion Slots• PCI_E4 slot (From B760 chipset)
Expansion Slots• PCI_E5 slot (From B760 chipset)
Graphics1x HDMI™
GraphicsSupport HDMITM 2.1, maximum resolution of 4K 60Hz*
Graphics1x DisplayPort
GraphicsSupport HDMI™ 2.1, maximum resolution of 4K 60Hz*
GraphicsSupport DP 1.4, maximum resolution of 4K 60Hz*
Graphics1x HDMI
Graphics*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
OtherSupport 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
OtherRAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
BIOS1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
I/O2x USB 5Gbps Type A (Rear)
I/O4x USB 2.0 (Front)
I/O1x USB 5Gbps Type C (Front)
I/O1x USB 10Gbps Type C (Rear)
I/O4x USB 5Gbps Type A (Front)
I/O2x USB 2.0 (Rear)
Storage4x SATA 6G
Storage2x M.2
StorageM.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
StorageM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Connectors1x Power Connector(ATX_PWR)
Connectors1x CPU Fan
Connectors2x Front Panel (JFP)
Connectors1x Chassis Intrusion (JCI)
Connectors1x Front Audio (JAUD)
Connectors1x Com Port (JCOM)
Connectors1x TPM pin header(Support TPM 2.0)
Connectors4x USB 2.0 ports
Connectors2x Power Connector(CPU_PWR)
Connectors1x Pump Fan
Connectors2x Addressable V2 RGB LED connector (JARGB_V2)
Connectors2x RGB LED connector(JRGB)
Connectors5x System Fan
Connectors1x USB 5Gbps Type C ports
Connectors4x USB 5Gbps Type A ports
Connectors•1x Front panel audio connector •2x System panel connectors
Connectors•1x Chassis Intrusion connector •1x TPM module connector
Connectors•1x Serial port connector •1x TBT connector (Supports RTD3)
Connectors•1x 4-pin CPU fan connector
Connectors•1x 4-pin water-pump fan connector
Connectors•5x 4-pin system fan connectors
USB2x USB 2.0 (Rear)
USB4x USB 2.0 (Front)
USB2x USB 5Gbps Type A (Rear)
USB4x USB 5Gbps Type A (Front)
USB1x USB 5Gbps Type C (Front)
USB1x USB 10Gbps Type C (Rear)
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Greutate0.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketLGA1700
Form FactorATX
ChipsetIntel B760
Memory TypeDDR5
Memory Slots (count)4
Max Memory (GB)192
M.2 Slots (count)2
SATA Ports (count)4
PCIe x16 Slots (count)2
Wi-Fi Built-inNo
LAN Speed2.5 Gbps
USB-C Ports (count)1
RGB LightingNo
Greutate0.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

Дънна платка MSI PRO B760-P II – LGA1700, DDR5, ATX

Проектирана за професионалисти и напреднали потребители, MSI PRO B760-P II предлага изключителна стабилност и висока производителност за Intel процесори от 12-то, 13-то и 14-то поколение. С поддръжка на DDR5 памет, PCIe 4.0 слотове и усилено захранване, тази платка е идеалната основа за надеждна работна станция или гейминг конфигурация.

Ключови Предимства

  • Поддръжка на DDR5 — По-бърза скорост на трансфер и подобрена многозадачност с двуканална DDR5 RAM.
  • PCIe 4.0 готовност — Свържете най-новите видеокарти и NVMe SSD за светкавична производителност.
  • Подобрено захранване — 12+1+1 Duet Rail VRM осигурява стабилно напрежение за взискателни процесори.
  • Разширена свързаност — Включва 2.5G LAN, USB 3.2 Gen 2 Type-C и множество M.2 слотове.

Технически Спецификации

СпецификацияСтойност
СокетLGA1700
Форм факторATX
ЧипсетIntel B760
Тип паметDDR5
Слотове за памет4
Максимална памет192 GB
M.2 слотове2
SATA портове4
PCIe x16 слотове2
Вграден Wi-FiНе
Скорост на LAN2.5 Gbps
USB-C портове1
RGB подсветкаНе

Какво има в кутията

  • Дънна платка MSI PRO B760-P II
  • Ръководство за потребителя
  • Заден панел (I/O Shield)
  • 2x SATA кабела
  • M.2 винтове
SKU: 911-7E29-009 © 2026 Xtreme.bg
