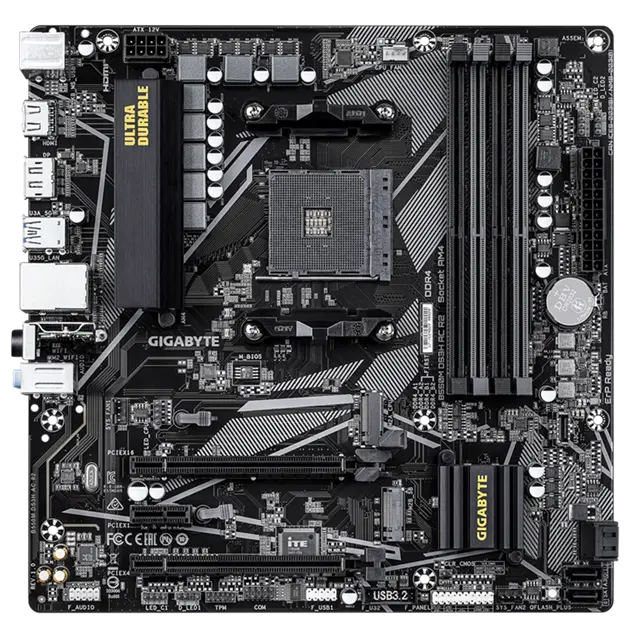

Placă de bază, GIGABYTE GB B550M DS3H AC R2 / AM4

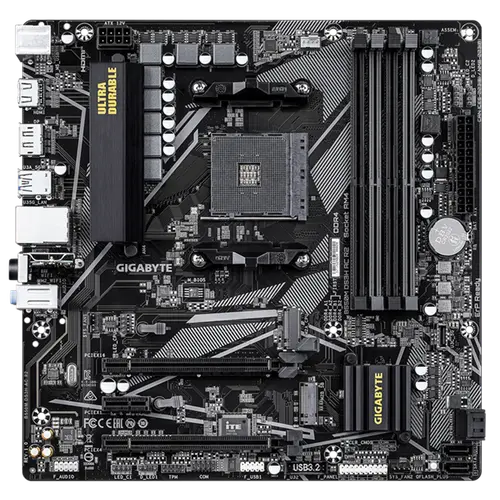

  • Placă de bază, GIGABYTE GB B550M DS3H AC R2 / AM4 - 1
  • Placă de bază, GIGABYTE GB B550M DS3H AC R2 / AM4 - 2

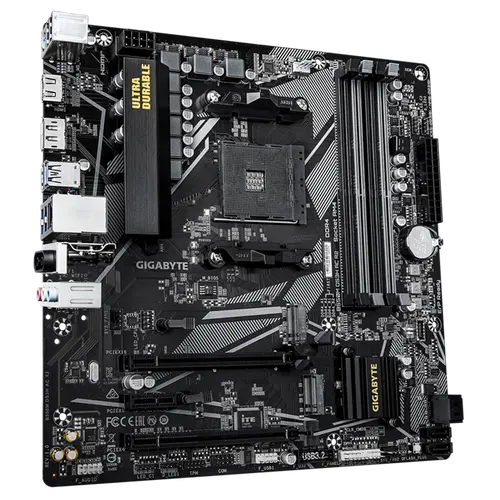

  • Placă de bază, GIGABYTE GB B550M DS3H AC R2 / AM4 - 3
  • Placă de bază, GIGABYTE GB B550M DS3H AC R2 / AM4 - 4
  • GIGABYTE
Placă de bază, GIGABYTE GB B550M DS3H AC R2 / AM4
Preț
€101 99 / 199 48 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
 Adaugă în coș
Prelungiți garanția
+1 an: + 14€
+2 ani: + 20€
EVALUARE
EVALUAREA DUMNEAVOASTRĂ
Recenzii
Comandă ușoară - introducând doar telefonul și numele:
Sunt de acord cu Termenii și condițiile
Vă vom contacta în cursul zilei lucrătoare. Atenție: în cazul unui număr de telefon greșit, nu avem nicio modalitate de a vă contacta.
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
  • Descriere
  • Detalii
  • Recenzii
  • Descriere IA
Vendor_url
https://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2
Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.
CPU's supported
AMD Socket AM4, support for:
AMD Ryzen™ 5000 G-Series Processors/
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset
AMD B550
Expansion slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 5000/ 3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G/ 4000 G/ 3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
CPU:
- 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

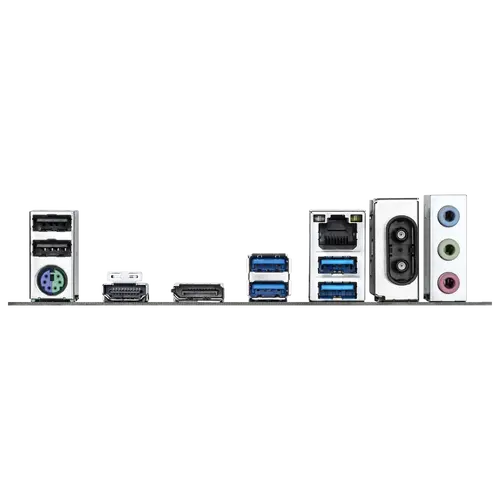

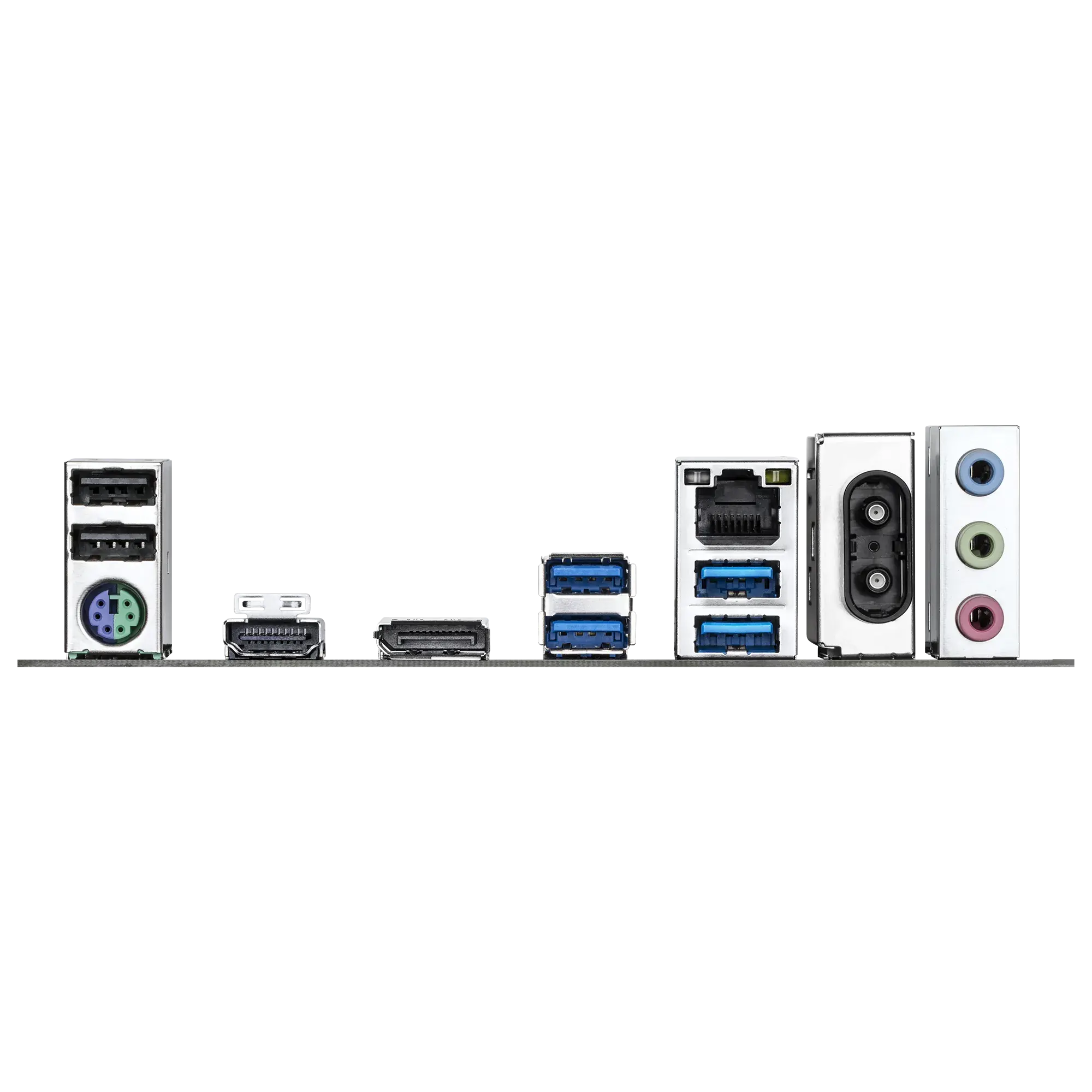

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
Audio
Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Lan
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Wireless
Realtek® Wi-Fi RTL8821CE
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.0
- Support for 11ac wireless standard
Bluetooth
5.0
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
AtributValoare
Vendor_urlhttps://www.gigabyte.com/Motherboard/B550M-DS3H-AC-R2
ChipsetAMD B550
OSSupport for Windows 10 64-bit
OSSupport for Windows 11 64-bit
Warranty36 Months
CPU's supportedAMD Socket AM4, support for:
CPU's supportedAMD Ryzen™ 5000 G-Series Processors/
CPU's supportedAMD Ryzen™ 5000 Series Processors/
CPU's supportedAMD Ryzen™ 4000 G-Series Processors/
CPU's supportedAMD Ryzen™ 3000 G-Series Processors/
CPU's supportedAMD Ryzen™ 3000 Series Processors
CPU's supported(Go to GIGABYTE's website for the latest CPU support list.)
Memory typeDual channel memory architecture
Memory typeSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory typeSupport for Extreme Memory Profile (XMP) memory modules
Memory typeSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Memory typeSupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
Memory type4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory
Form FactorMicro ATX Form Factor
Form Factor24.4cm x 24.4cm
AudioHigh Definition Audio
Audio2/4/5.1/7.1-channel
Audio* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
AudioRealtek® ALC1220 CODEC
Audio* The back panel line out jack supports DSD audio.
Rear panel I/OiTE® I/O Controller Chip
LANRealtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion Slots- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
Expansion Slots- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
Expansion Slots* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion SlotsChipset:
Expansion Slots- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4
Expansion Slots- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
WirelessRealtek® Wi-Fi RTL8821CE
Wireless- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
Wireless- BLUETOOTH 5.0
Wireless- Support for 11ac wireless standard
Graphics* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Graphics* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
GraphicsIntegrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
Graphics- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics** Support for native HDMI 2.1 TMDS compatible ports.
FeaturesSupport for APP Center
Features* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Features- @BIOS
Features- EasyTune
Features- RGB Fusion
Features- Smart Backup
Features- System Information Viewer
FeaturesSupport for Q-Flash Plus
FeaturesSupport for Q-Flash
BIOSUse of licensed AMI UEFI BIOS
BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS1 x 128 Mbit flash
I/OiTE® I/O Controller Chip
StorageRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
StorageRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage4 x SATA 6Gb/s connectors
Storage1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
Storage- AMD Ryzen™ 5000/ 3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
Storage- AMD Ryzen™ 5000 G/ 4000 G/ 3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
Storage1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs
Bluetooth5.0
Connectors1 x 24-pin ATX main power connector
Connectors1 x CPU fan header
Connectors2 x addressable LED strip headers
Connectors2 x RGB LED strip headers
Connectors1 x front panel header
Connectors1 x front panel audio header
Connectors1 x USB Type-C® header, with USB 3.2 Gen 1 support
Connectors1 x USB 3.2 Gen 1 header
Connectors1 x serial port header
Connectors1 x Q-Flash Plus button
Connectors1 x Clear CMOS jumper
Connectors1 x 8-pin ATX 12V power connector
Connectors4 x SATA 6Gb/s connectors
Connectors1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Connectors2 x system fan headers
Connectors1 x USB 2.0/1.1 header
Connectors2 x M.2 Socket 3 connectors
Connectors1 x CPU cooler LED strip/RGB LED strip header
ConnectorsBack Panel Connectors
Connectors2 x USB 2.0/1.1 ports
Connectors1 x PS/2 keyboard/mouse port
Connectors1 x HDMI port (Note)
Connectors1 x DisplayPort (Note)
Connectors4 x USB 3.2 Gen 1 ports
Connectors1 x RJ-45 port
Connectors2 x antenna connectors
Connectors3 x audio jacks
USBCPU:
USB- 4 x USB 3.2 Gen 1 ports on the back panel
USBChipset:
USB- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB- 2 x USB 3.2 Gen 1 ports available through the internal USB header
USB- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Greutate0.00kg
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
AtributValoare
SocketAM4
Form FactorMicro-ATX
ChipsetAMD B550
Memory TypeDDR4
Memory Slots (count)4
Max Memory (GB)64
M.2 Slots (count)2
SATA Ports (count)4
PCIe x16 Slots (count)2
Wi-Fi Built-inWi-Fi 5
LAN Speed1 Gbps
USB-C Ports (count)0
RGB LightingNo
Greutate0.00kg
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.

GIGABYTE B550M DS3H AC R2 – Надеждна AM4 Micro-ATX дънна платка с Wi-Fi

Изградете високопроизводителна игрална или работна станция с GIGABYTE B550M DS3H AC R2. Тази Micro-ATX платка съчетава AMD B550 чипсет с вграден 802.11ac Wi-Fi и богат набор от функции, което я прави отлична основа за следващото ви AMD Ryzen изграждане.

Ключови Предимства

  • Изключителна производителност — Поддържа AMD Ryzen 5000 серия процесори с PCIe 4.0 за светкавично бърза графика и съхранение.
  • Вграден Wi-Fi 5 — Интегрирана 802.11ac безжична мрежа осигурява удобна свързаност без кабели.
  • Двоен M.2 слот — Един PCIe 4.0 M.2 слот и един PCIe 3.0/SATA M.2 слот за високоскоростни SSD дискове.
  • Здраво захранване — 5+3 фаза цифров VRM гарантира стабилно захранване дори при тежки натоварвания.
  • Разширено охлаждане — Умно управление на вентилаторите и хибридни главини за вентилатори поддържат системата хладна и тиха.

Технически Спецификации

СпецификацияСтойност
СокетAM4
ЧипсетAMD B550
Форм факторMicro-ATX
Тип паметDDR4
Слотове за памет4 (Dual Channel)
Максимална памет64 GB
M.2 слотове2 (1 x PCIe 4.0, 1 x PCIe 3.0/SATA)
SATA портове4
PCIe x16 слотове2 (1 x Gen4 x16, 1 x Gen3 x4)
Wi-FiWi-Fi 5 (802.11ac)
LAN1 Gbps Realtek GbE
USB-C на задния панелНяма
RGB подсветкаНе

Какво има в кутията

  • Дънна платка GIGABYTE B550M DS3H AC R2
  • Ръководство за потребителя
  • Заден I/O панел
  • 2 x SATA кабела
  • Wi-Fi антена
  • DVD с драйвери
SKU: B550M DS3H AC R2 1.0 © 2026 Xtreme.bg
Honor
ViewFinity

Abonați-vă la newsletterul nostru

Abonați-vă la newsletterul nostru online și aflați primii despre promoții și produse noi.

Dacă aveți întrebări, contactați-ne!

info@xtreme.bg

+359 886 177 222
ЕКСТРИЙМ.БГ ООД
CUI: 203294915 · Nr. TVA: BG203294915
София 1172, бул. Драган Цанков, Блок 59, Вх. Г, Магазин 2

Informații

Utilizator

Metodă de plată

  • Plata la livrare
  • Card de credit/debit
    MastercardVisaGoogle PayApple Pay
  • Transfer bancar
  • În rate prin PB Personal Finance
Copyright © 2023 Xtreme.bg - Toate drepturile rezervate. Magazin online care rulează pe XCore
Închide
