- ASUS
Preț
€115 16 / 225 23 BGN
cu TVA
* FURNIZOR EXTERN - (1 până la 3 zile)
* - Produsul se află în depozitul importatorului oficial al mărcii pentru Bulgaria. Timpul de livrare este de obicei de 1 până la 3 zile lucrătoare. Este posibil ca în momentul finalizării comenzii produsul să fie deja epuizat. În cazul epuizării stocului vă vom contacta
Vă informăm că, în ciuda eforturilor noastre, nu putem garanta că informațiile și imaginile publicate nu conțin inexactități sau erori, care nu pot constitui temei juridic pentru pretenții.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/csm/prime-a620m-a-csm/
Graphics
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD A620 Chipset
Expansion slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD A620 Chipset
2 x PCIe 3.0 x1 slots
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD A620 Chipset
4 x SATA 6Gb/s ports
Memory type
4 x DIMM slots, Max. 192GB, DDR5 7600+(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II

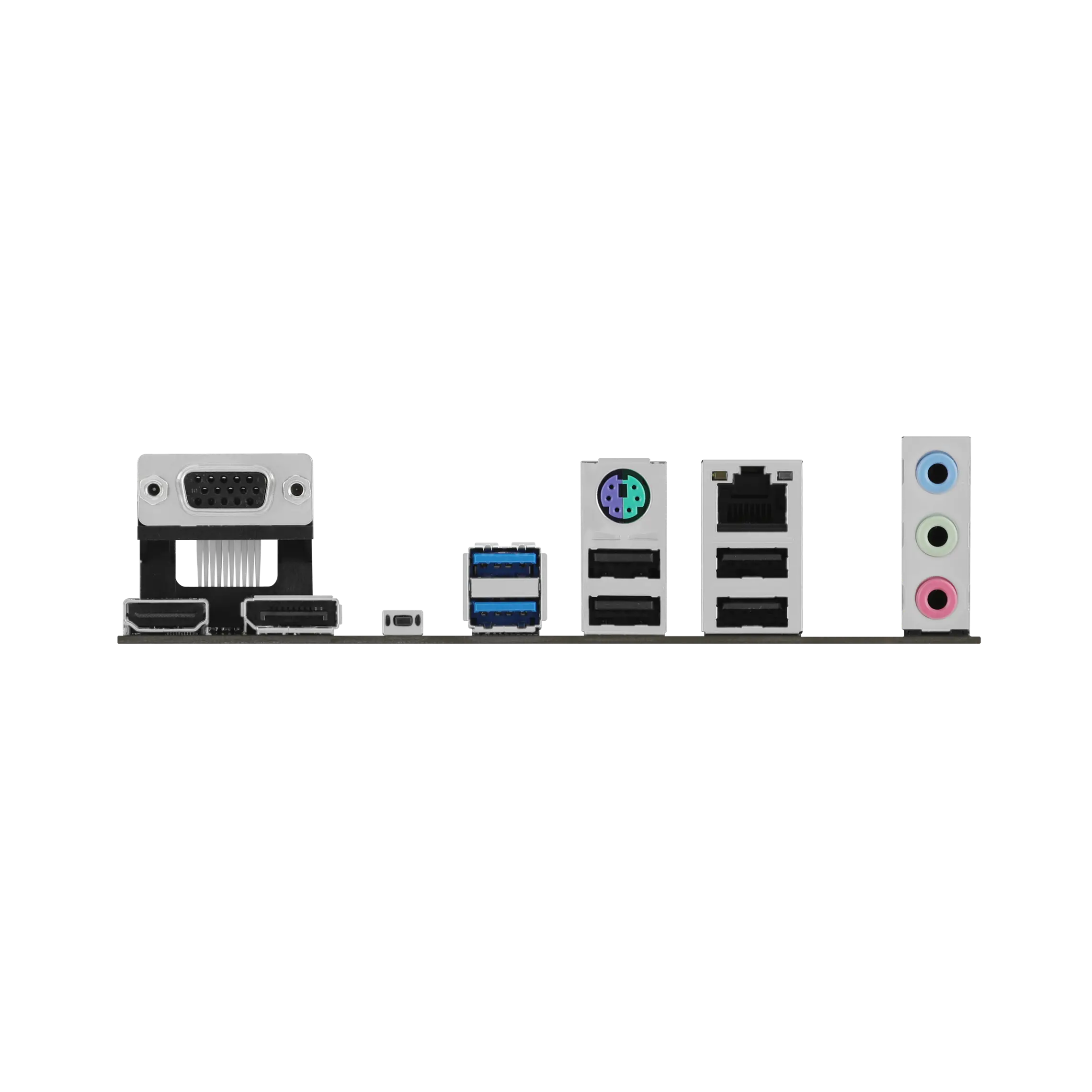

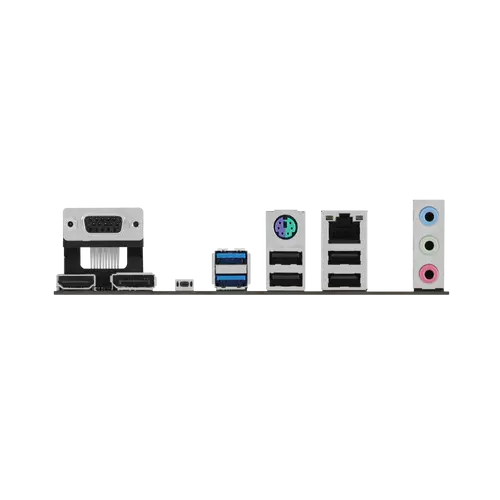

Rear panel I/O
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Lan
1 x Realtek 1Gb Ethernet
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro-ATX Form Factor
24.4 cm x 24.4 cm
OS
Windows® 11, Windows® 10 64-bit
Warranty
36 Months
Date transmise de importatorul oficial pentru Bulgaria.
| Atribut | Valoare |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/csm/prime-a620m-a-csm/ |
| Chipset | AMD A620 Chipset |
| OS | Windows® 11, Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Memory type | 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory |
| Memory type | OptiMem II |
| Form Factor | Micro-ATX Form Factor |
| Form Factor | 24.4 cm x 24.4 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x DisplayPort |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x Realtek 1Gb Ethernet port |
| Rear panel I/O | 1 x BIOS FlashBack™ button |
| Rear panel I/O | 1 x PS/2 Keyboard/Mouse combo port |
| Rear panel I/O | 1 x VGA port |
| Rear panel I/O | 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| LAN | 1 x Realtek 1Gb Ethernet |
| Expansion Slots | 2 x PCIe 3.0 x1 slots |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Expansion Slots | AMD Ryzen™ 8000 Series Desktop Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| Expansion Slots | AMD A620 Chipset |
| Graphics | 1 x HDMI™ port |
| Graphics | 1 x DisplayPort |
| Graphics | 1 x VGA port |
| Features | ASUS EZ DIY |
| Features | ASUS 5X PROTECTION III |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | - DIGI+ VRM |
| Features | - LANGuard |
| Features | - Overvoltage Protection |
| Features | - SafeSlot Core |
| Features | - Stainless-Steel Back I/O |
| Features | - Q-DIMM |
| Features | - Q-LED Core |
| Features | - Q-Slot |
| Features | Aura Sync |
| Features | - Addressable Gen 2 headers |
| Features | - Aura RGB header |
| Features | - VRM heatsink design |
| Features | - BIOS FlashBack™ button |
| Features | - BIOS FlashBack™ LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 1 x DisplayPort |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI™ port |
| I/O | 1 x Realtek 1Gb Ethernet port |
| I/O | 1 x BIOS FlashBack™ button |
| I/O | 1 x PS/2 Keyboard/Mouse combo port |
| I/O | 1 x VGA port |
| I/O | 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) |
| I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Storage | 4 x SATA 6Gb/s ports |
| Storage | AMD A620 Chipset |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x speaker header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | 2 x 4-pin Chassis Fan headers |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | 1 x 8-pin +12V Power connector |
| Connectors | Storage related |
| Connectors | 4 x SATA 6Gb/s ports |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x Front Panel Audio header (AAFP) |
| Connectors | 1 x 10-1 pin System Panel header |
| Connectors | 1 x SPI TPM header (14-1pin) |
| Connectors | 2 x M.2 slots (Key M) |
| Connectors | 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) |
| Connectors | 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports |
| Connectors | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x Aura RGB header |
| USB | Rear USB (Total 6 ports) |
| USB | Front USB (Total 7 ports) |
| USB | 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) |
| USB | 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports |
| USB | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB | 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) |
| USB | 4 x USB 2.0 ports (4 x Type-A) |
| Greutate | 0.00kg |
Date extrase automat de pe internet. Acuratețea nu este garantată. Pentru informații detaliate, vă rugăm să ne contactați sau să vizitați pagina producătorului.
| Atribut | Valoare |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
| Chipset | AMD A620 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 1 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 2 |
| Wi-Fi Built-in | No |
| LAN Speed | 1 Gbps |
| USB-C Ports (count) | 0 |
| RGB Lighting | No |
| Greutate | 0.00kg |
Atenție! Deoarece nu toți importatorii transmit corect datele despre produse, informațiile de mai jos au fost extrase cu ajutorul inteligenței artificiale din diverse surse de pe internet și nu sunt 100% corecte. Dacă aveți îndoieli, vă rugăm să ne contactați pentru a verifica exact caracteristicile dorite de dumneavoastră.
Дънна платка ASUS PRIME A620M-A-CSM – Надеждна AM5 платформа за ежедневна работа
Изградете стабилна и ефективна система с ASUS PRIME A620M-A-CSM. Проектирана за AMD Ryzen 7000 процесори, тази Micro-ATX дънна платка предлага основни функции за ежедневна работа и развлечения, с поддръжка на бърза DDR5 памет и разнообразни възможности за свързване.
Ключови Предимства
- AMD A620 чипсет – Оптимизиран за AM5 процесори, осигурява солидна основа за производителност и многозадачност.
- DDR5 памет – По-бърза скорост на трансфер и подобрена ефективност в сравнение с DDR4.
- Разнообразни връзки – Включва 1x PCIe 4.0 x16, 2x PCIe 3.0 x16, 4x SATA порта и 1x M.2 слот за разширение на съхранението.
- Надеждна мрежа – Realtek 1Gb Ethernet за стабилна кабелна връзка за работа и забавление.
- ASUS Corporate Stable Model (CSM) – Проектирана за бизнес среди с дългосрочна наличност и надеждност.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Чипсет | AMD A620 |
| Форм фактор | Micro-ATX |
| Тип памет | DDR5 |
| Слотове за памет | 2 (макс. 64GB) |
| M.2 слотове | 1 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 (1x PCIe 4.0 x16, 1x PCIe 3.0 x16) |
| LAN | Realtek 1Gb Ethernet |
| USB-C портове | 0 |
| Wi-Fi | Не |
| RGB подсветка | Не |
Какво има в кутията
- Дънна платка ASUS PRIME A620M-A-CSM
- Ръководство на потребителя
- I/O скоба
- 2x SATA кабела
