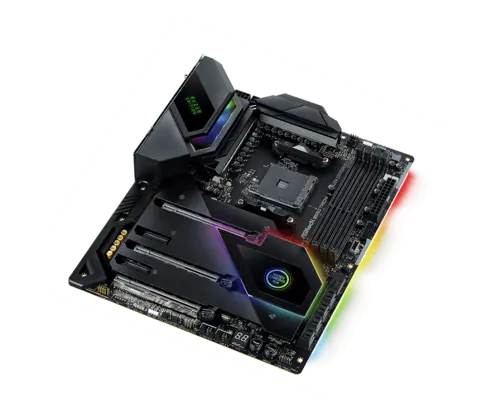

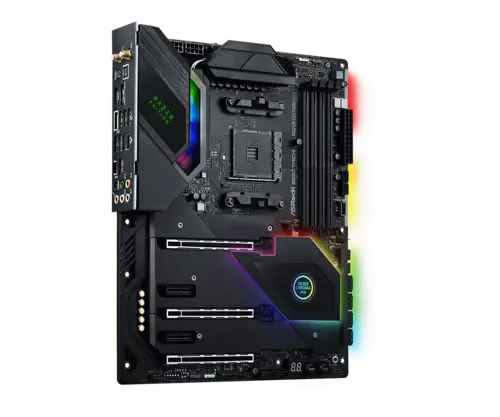

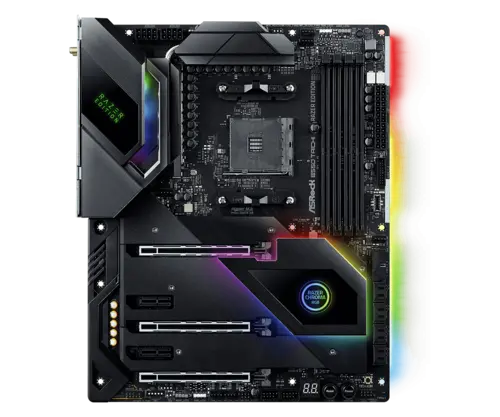

Дънна платка, ASROCK B550 TAICHI RYZER EDIT

- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*

- Digi Power design

- 16 Power Phase design

- Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- AMD Ryzen series CPUs (Vermeer) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- AMD Ryzen series CPUs (Matisse) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- Max. capacity of system memory: 128GB**

- Supports Extreme Memory Profile (XMP)

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

- DirectX 12, Pixel Shader 5.0

- Споделена памет с оригиналния продукт 2GB. Максималната обща памет поддържа до 16 GB.**

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

- Supports HDR (High Dynamic Range) with HDMI 2.1

- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports

- Supports Microsoft® PlayReady

AMD Ryzen series CPUs (Vermeer)

- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1)

dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3)

triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))*

AMD Ryzen series CPUs (Matisse)

- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1)

dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3)

triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))*

AMD Ryzen series APUs (Renoir)

- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1)

dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3)

triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5))*

- 2 x PCI Express 3.0 x1 Slots

- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™

- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

- 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*

- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

- 2 x Antenna Ports

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x Optical SPDIF Out Port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- 1 x Clear CMOS Button

- 1 x BIOS Flashback Button

- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

- 1 x Power LED and Speaker Header

- 2 x RGB LED Headers*

- 2 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

- 1 x Dr. Debug with LED

- 1 x Power Button with LED

- 1 x Reset Button with LED

- 1 x Clear CMOS Button

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)

- Pure Power-In

- Direct Drive Technology

- PCB Isolate Shielding

- Impedance Sensing on Rear Out port

- Individual PCB Layers for R/L Audio Channel

- Gold Audio Jacks

- 15μ Gold Audio Connector

- Nahimic Audio

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- 1 x Killer E3100X (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)

- Supports Killer LAN Software

- Supports Killer DoubleShot™ Pro

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

- 256Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 5.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3 support

- CPU, CPU VDDCR_SOC, DRAM, VPPM, VTT_DDR Offset, CPU VDD 1.8 Voltage Multi-adjustment

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 2oz Copper PCB

- Killer AX1650x 802.11ax WiFi Module

- Supports IEEE 802.11a/b/g/n/ax

- Supports Dual-Band (2.4/5 GHz)

- Supports Killer WiFi6 802.11ax (2.4Gbps)

- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth 5.1 + High speed class II

- Supports MU-MIMO

- Supports Killer LAN Software

- Supports Killer DoubleShot™ Pro
