Дънна платка, ASUS TUF GAMING B550M-E

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

4 x DIMM, Max. 128GB, DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*

AMD Ryzen™ 4000 G-Series Desktop Processors

4 x DIMM, Max. 128GB, DDR4 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4100(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

1 x DisplayPort 1.2

1 x D-Sub

1 x HDMI™ 2.1 (4K@60Hz)

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 4000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD B550 Chipset

2 x PCIe 3.0 x1 slots

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Support RAID 0, RAID 1, RAID 10

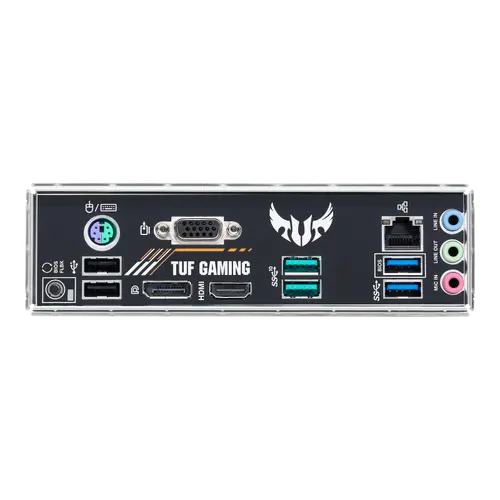

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x D-Sub port

1 x HDMI™ port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers
