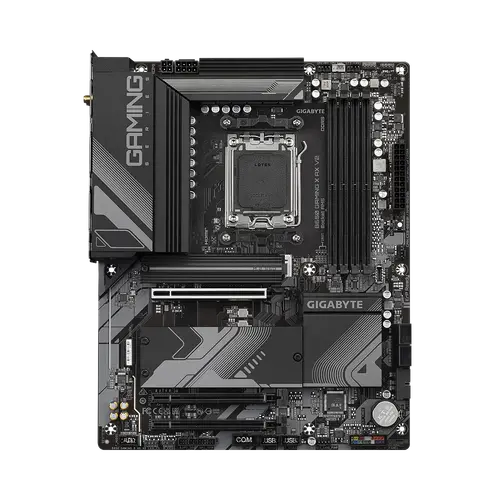

Name: Дънна платка, GIGABYTE GB B650 GAMING X AX V2
Brand: GIGABYTE
SKU: B650 GAMING X AX V2 1.2
Price: 162.30 BGN
Availability: InStock

GIGABYTE
Ново

Дънна платка, GIGABYTE GB B650 GAMING X AX V2

Цена

€162³⁰ / 317⁴³ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 22€

+2 години: + 31€

Код: B650 GAMING X AX V2 1.2
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Wireless

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)

-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

-BLUETOOTH 5.3

-Support for 11ax 160MHz wireless standard

AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)

-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

-BLUETOOTH 5.2

-Support for 11ax 160MHz wireless standard

Intel® Wi-Fi 6E AX210 (PCB rev. 1.2)

-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

-BLUETOOTH 5.3

-Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Memory type

Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/ 4800/ 4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

CPU's supported

AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Chipset

AMD B650

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support

-1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode

-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot

Chipset

-2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs

-AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs

-AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs

-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs

-4 x SATA 6Gb/s connectors

-RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

-RAID 0, RAID 1, and RAID 10 support for SATA storage devices

I/O

CPU

-1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

-1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

-1 x USB 3.2 Gen 1 port on the back panel

CPU + USB 2.0 Hub

-3 x USB 2.0/1.1 ports on the back panel

Chipset

-1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

-4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

-4 x USB 2.0/1.1 ports available through the internal USB headers

Connectors

iTE® I/O Controller Chip

1x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

2 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors:

2 x SMA antenna connectors (2T2R)

1 x Q-Flash Plus button

1 x DisplayPort

1 x HDMI port

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

3 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX Form Factor

30.5cm x 24.4cm

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Warranty

36 Months

Атрибут	Стойност
Chipset	AMD B650
OS	Support for Windows 10 64-bit
OS	Support for Windows 11 64-bit
Warranty	36 Months
CPU's supported	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Memory type	Dual channel memory architecture
Memory type	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
Form Factor	30.5cm x 24.4cm
Form Factor	ATX Form Factor
Audio	Realtek® Audio CODEC
Audio	High Definition Audio
Audio	2/4/5.1/7.1-channel
Audio	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	Chipset
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
Expansion Slots	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot
Expansion Slots	-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
Expansion Slots	-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion Slots	-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots	-2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Wireless	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
Wireless	-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless	-BLUETOOTH 5.3
Wireless	-Support for 11ax 160MHz wireless standard
Wireless	AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)
Wireless	-BLUETOOTH 5.2
Wireless	Intel® Wi-Fi 6E AX210 (PCB rev. 1.2)
Wireless	(Actual data rate may vary depending on environment and equipment.)
Graphics	(Graphics specifications may vary depending on CPU support.)
Graphics	* Support for HDMI 2.1 version and HDCP 2.3.
Graphics	* Support for DisplayPort 1.4 version and HDR.
Graphics	** Support native HDMI 2.1 TMDS compatible ports.
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support
Graphics	-1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
Graphics	-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Features	Support for Q-Flash Plus
Features	Support for Q-Flash
Features	Support for GIGABYTE Control Center (GCC)
Features	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
BIOS	1 x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/O	CPU
I/O	Chipset
I/O	-1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
I/O	-1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
I/O	-1 x USB 3.2 Gen 1 port on the back panel
I/O	CPU + USB 2.0 Hub
I/O	-3 x USB 2.0/1.1 ports on the back panel
I/O	-1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
I/O	-4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
I/O	-4 x USB 2.0/1.1 ports available through the internal USB headers
Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
Storage	1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
Storage	-AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
Storage	-AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage	1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
Storage	-AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
Storage	-AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage	-AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Storage	-4 x SATA 6Gb/s connectors
Storage	-RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage	-RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Connectors	1 x CPU fan header
Connectors	1 x system fan/water cooling pump header
Connectors	2 x addressable LED strip headers
Connectors	2 x RGB LED strip headers
Connectors	3 x M.2 Socket 3 connectors
Connectors	1 x front panel header
Connectors	1 x front panel audio header
Connectors	1 x USB 3.2 Gen 1 header
Connectors	2 x USB 2.0/1.1 headers
Connectors	1 x serial port header
Connectors	1 x reset button
Connectors	1 x Q-Flash Plus button
Connectors	1 x reset jumper
Connectors	1 x Clear CMOS jumper
Connectors	1 x 8-pin ATX 12V power connector
Connectors	4 x SATA 6Gb/s connectors
Connectors	2 x system fan headers
Connectors	1 x CPU cooler LED strip/RGB LED strip header
Connectors	1 x RJ-45 port
Connectors	3 x audio jacks
Connectors	1 x CPU fan/water cooling pump header
Connectors	1x 24-pin ATX main power connector
Connectors	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors	1 x DisplayPort
Connectors	1 x HDMI port
Connectors	2 x SMA antenna connectors (2T2R)
Connectors	1 x 4-pin ATX 12V power connector
Connectors	1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Connectors	1 x USB Type-C® port, with USB 3.2 Gen 2 support
Connectors	iTE® I/O Controller Chip
Connectors	Back Panel Connectors:
Connectors	1 x USB 3.2 Gen 2 Type-A port (red)
Connectors	3 x USB 3.2 Gen 1 ports
Connectors	3 x USB 2.0/1.1 ports
Тегло	0.00кг
