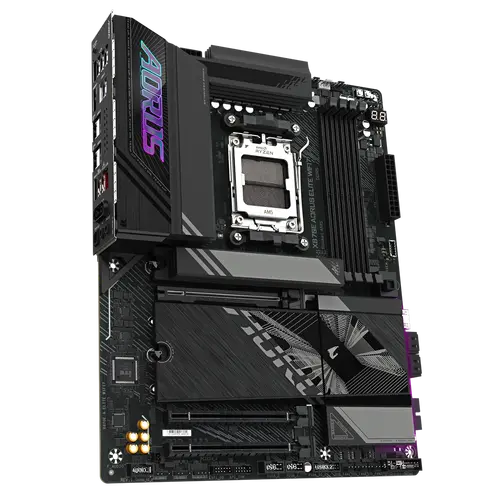

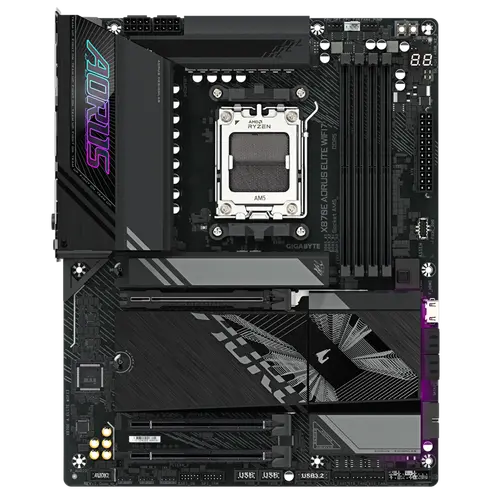

Name: Дънна платка, GIGABYTE GB X870E A ELITE WIFI7
Brand: GIGABYTE
SKU: X870E AORUS ELITE WIFI7 1.2
Price: 337.05 BGN
Availability: InStock

GIGABYTE
Ново

Дънна платка, GIGABYTE GB X870E A ELITE WIFI7

Цена

€337⁰⁵ / 659²¹ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 44€

+2 години: + 65€

Код: X870E AORUS ELITE WIFI7 1.2
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

USB

CPU+ASMedia USB4® controller:

- 2 x USB4® USB Type-C® ports on the back panel

CPU:

- 1 x USB 3.2 Gen 1 port on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Wireless

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Memory type

Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Features

Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support Smart Backup

CPU's supported

AMD Socket AM5, support for:

AMD Ryzen™ 9000 Series Processors/

AMD Ryzen™ 8000 Series Processors/

AMD Ryzen™ 7000 Series Processors

Chipset

AMD X870E

Bluetooth

5.4

Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:

- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support native HDMI 2.1 TMDS compatible ports.

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

* Support for HDMI 1.4 version

(Graphics specifications may vary depending on CPU support.)

Support for up to quad-display at the same time

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

I/O

iTE® I/O Controller Chip

Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note)

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

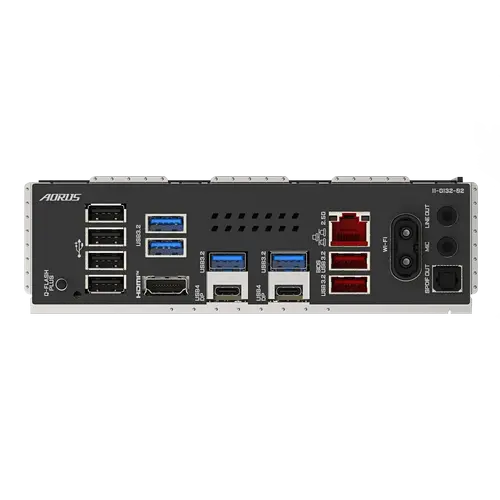

Back Panel Connectors:

1 x Q-Flash Plus button

4 x USB 2.0/1.1 ports

4 x USB 3.2 Gen 1 ports

1 x HDMI port (Note)

2 x USB4® USB Type-C® ports (DisplayPort (Note))

1 x RJ-45 port

2 x USB 3.2 Gen 2 Type-A ports (red)

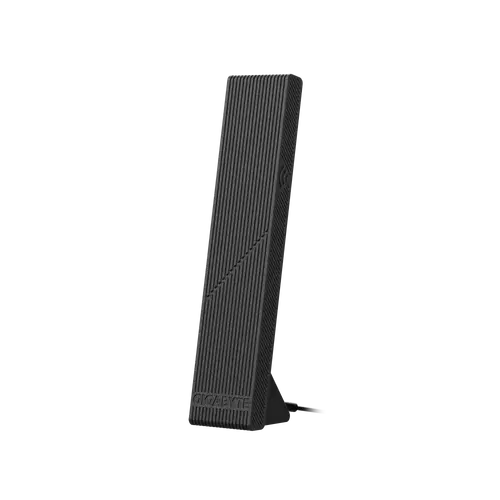

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

Audio

Realtek® ALC1220 CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor

ATX Form Factor

30.5cm x 24.4cm

Support for Windows 11 64-bit

Software: Norton® Internet Security (OEM version)

LAN bandwidth management software

Warranty

36 Months

Атрибут	Стойност
Chipset	AMD X870E
OS	Support for Windows 11 64-bit
OS	LAN bandwidth management software
OS	Software: Norton® Internet Security (OEM version)
Warranty	36 Months
CPU's supported	AMD Socket AM5, support for:
CPU's supported	AMD Ryzen™ 9000 Series Processors/
CPU's supported	AMD Ryzen™ 8000 Series Processors/
CPU's supported	AMD Ryzen™ 7000 Series Processors
Memory type	Dual channel memory architecture
Memory type	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory type	Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory type	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory type	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Form Factor	30.5cm x 24.4cm
Form Factor	ATX Form Factor
Audio	High Definition Audio
Audio	2/4/5.1/7.1-channel
Audio	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio	Support for S/PDIF Out
Audio	Realtek® ALC1220 CODEC
Audio	* The back panel line out jack supports DSD audio.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion Slots	Chipset:
Expansion Slots	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion Slots	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots	AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
Expansion Slots	* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
Expansion Slots	When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
Expansion Slots	(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
Expansion Slots	- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Wireless	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless	(Actual data rate may vary depending on environment and equipment.)
Wireless	- BLUETOOTH 5.4
Wireless	- Support for 11be 160MHz wireless standard
Wireless	* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
Wireless	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
Wireless	**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Wireless	Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1/1.2)
Graphics	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
Graphics	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Graphics	(Graphics specifications may vary depending on CPU support.)
Graphics	* Support for DisplayPort 1.4 version and HDR.
Graphics	** Support native HDMI 2.1 TMDS compatible ports.
Graphics	* Support for HDMI 1.4 version
Graphics	- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Graphics	- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
Graphics	Support for up to quad-display at the same time
Features	Support for Q-Flash Plus
Features	Support for Q-Flash
Features	Support for GIGABYTE Control Center (GCC)
Features	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Features	Support Smart Backup
BIOS	1 x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
I/O	iTE® I/O Controller Chip
Storage	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage	AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage	AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
Storage	* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
Storage	AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
Storage	* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
Storage	1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
Storage	4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Storage	2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
Bluetooth	5.4
Connectors	1 x 24-pin ATX main power connector
Connectors	2 x 8-pin ATX 12V power connectors
Connectors	1 x CPU fan header
Connectors	3 x system fan headers
Connectors	1 x system fan/water cooling pump header
Connectors	1 x front panel header
Connectors	1 x front panel audio header
Connectors	2 x USB 2.0/1.1 headers
Connectors	1 x reset button
Connectors	1 x Q-Flash Plus button
Connectors	1 x reset jumper
Connectors	1 x Clear CMOS jumper
Connectors	4 x SATA 6Gb/s connectors
Connectors	1 x RGB LED strip header
Connectors	1 x HDMI port (Note)
Connectors	4 x USB 3.2 Gen 1 ports
Connectors	1 x RJ-45 port
Connectors	1 x CPU fan/water cooling pump header
Connectors	4 x USB 2.0/1.1 ports
Connectors	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Connectors	3 x addressable RGB Gen2 LED strip headers
Connectors	2 x USB 3.2 Gen 2 Type-A ports (red)
Connectors	1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Connectors	2 x antenna connectors (2T2R)
Connectors	Back Panel Connectors:
Connectors	1 x optical S/PDIF Out connector
Connectors	2 x audio jacks
Connectors	4 x M.2 Socket 3 connectors
Connectors	2 x USB 3.2 Gen 1 headers
Connectors	1 x power button
Connectors	2 x USB4® USB Type-C® ports (DisplayPort (Note))
USB	CPU:
USB	Chipset:
USB	- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB	- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
USB	- 1 x USB 3.2 Gen 1 port on the back panel
USB	CPU+ASMedia USB4® controller:
USB	- 2 x USB4® USB Type-C® ports on the back panel
USB	- 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
USB	- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Тегло	0.00кг

Запишете се за нашият Бюлетин

Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.

Ако имате въпроси свържете се с нас!

info@xtreme.bg

+359 886 177 222

Информация

Потребител

Методи за Плащане

Наложен Платеж
Кредитна/Дебитна Карта
Банков Превод
На изплащане ПБ Лични Финанси
