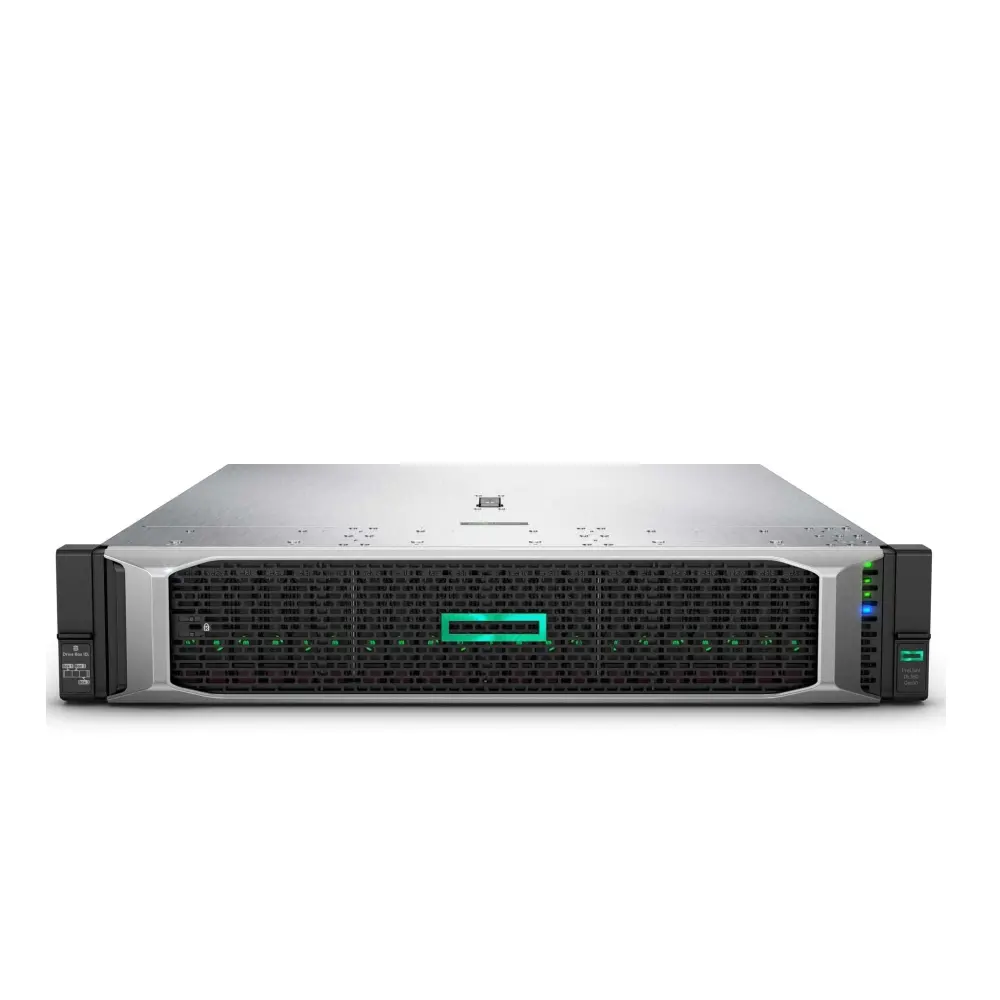

| Серия | DL380-G10+ |
| Процесор | Intel Xeon-Silver 4314 (16-Core, 2.4 GHz, 135W, 24 MB cache) |
| Памет, GB | 32 GB RDIMM 2R 3200 MT/s (1x 32 GB) |
| Памет, слотове | 32 slots - 16 DIMM slots per processor, 8channels per processor, 2 DIMMs per channel; DDR4 SmartMemory RDIMM |
| Твърд диск, GB | not included |
| Дисков контролер | Broadcom MegaRAID MR416i-p x16 Lanes 4GB Cache NVMe/SAS 12G Controller for HPE Gen10 Plus with HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable |
| Брой поддържани дискове | 8SFF; 8SFFx1 Tri-Mode 24G U.3 BC |
| Оптично устройство | - |
| Мрежа | Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE |
| Разширителен слот | 3 PCIe: x8/x16/x8 |
| Интерфейс | 1x VGA (rear), Up to 5 USB 3.0 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via UMB; Serial - Optional; 1optional display port; Network Ports None standard. Choice of OCP NC or stand-up NC; Front iLO Service Port |
| Порт за отдалечено управление | 1 Gb Dedicated, rear |
| Захранване | 1x 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply |
| Съвместими операционни системи | Windows Server 2019/2016: Essentials, Standard, Datacenter; Microsoft Hyper-V Server: 2016 & 2019; VMware vSphere 6.7 U3 w/P03, 7.0 U2; Red Hat Enterprise Linux (RHEL) 7.9 & 8.2; SUSE Linux Enterprise; Ubuntu 20.04 LTS |
| Софтуер за управление | HPE iLO 5 |
| Форм-фактор | 2U Rack |
| Тип на шасито | Hot-Plug |
| Други | 6 fans – Maximum Performance; Easy Install w/ CMA |
| Приложение | за бизнеса |
| Атрибут | Стойност |
|---|---|
| Серия | DL380-G10+ |
| Type | Server |
| Type | No HDD |
| Type | No optical drive |
| Type | 1 |
| Процесор | Intel Xeon Silver 4314 2.40 GHz, 16-core, 24 MB cache |
| Процесор | Intel Xeon Silver 4314 2.40 GHz, 16-core, 24 MB cache |
| Product Form Factor | Rack-mountable - 2U |
| Памет, GB | 32 |
| Server Scalability | 2-way |
| Дисков контролер | MR416i-p/4GB |
| Hot-Swap Bays Qty | 8 |
| Брой поддържани дискове | 8 |
| Localisation | Region: Worldwide |
| Оптично устройство | Не |
| CPU | Intel Xeon Silver 4314 |
| Порт за отдалечено управление | Да |
| Clock Speed | 2.4 GHz |
| Форм-фактор | 2U Rack |
| Max Turbo Speed | 3.4 GHz |
| Тип на шасито | Hot-Plug |
| Number of Cores | 16-core |
| Подкатегория | ProLiant DL380 |
| Приложение | за бизнеса |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C621A |
| Installed Size | 32 GB / 2 TB (max) |
| Installed Size | 24 MB |
| Cache Per Processor | 24 MB |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2933 MHz |
| Rated Memory Speed | 3200 MHz |
| Slots | 32 (Total) / 31 (empty) |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x8 mode) 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height (x8 mode) |
| Features | Registered, 8-channel memory architecture, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 1 x 32 GB |
| Monitor Type | None. |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM57412 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Controller | Integrated Lights-Out 5 |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Interfaces | 1 x HPE iLO - RJ-45 3 x USB 3.0 (1 front, 2 rear) 1 x HPE iLO (service port) 2 x LAN (10Gigabit Ethernet) - SFP+ 1 x VGA |
| Included Accessories | CPU standard heatsink, HPE Easy Install Rails with CMA, 6 maximum performance fans |
| Compliant Standards | AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2 |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 800 Watt |
| OS Provided | No operating system |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Width | 44.54 cm |
| Depth | 71 cm |
| Height | 8.75 cm |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Form Factor | DIMM 288-pin |
| RAM Supported | 8 TB Load-Reduced 2 TB registered 8 TB - HPE Persistent Memory - Optane DC Persistent |
| Video Memory | 16 MB |
| Buffer Size | 4 GB |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Тегло | 30.00кг |
