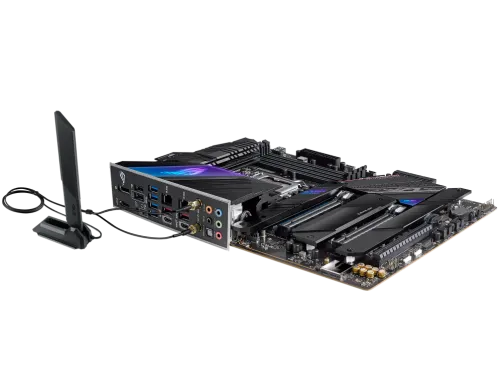

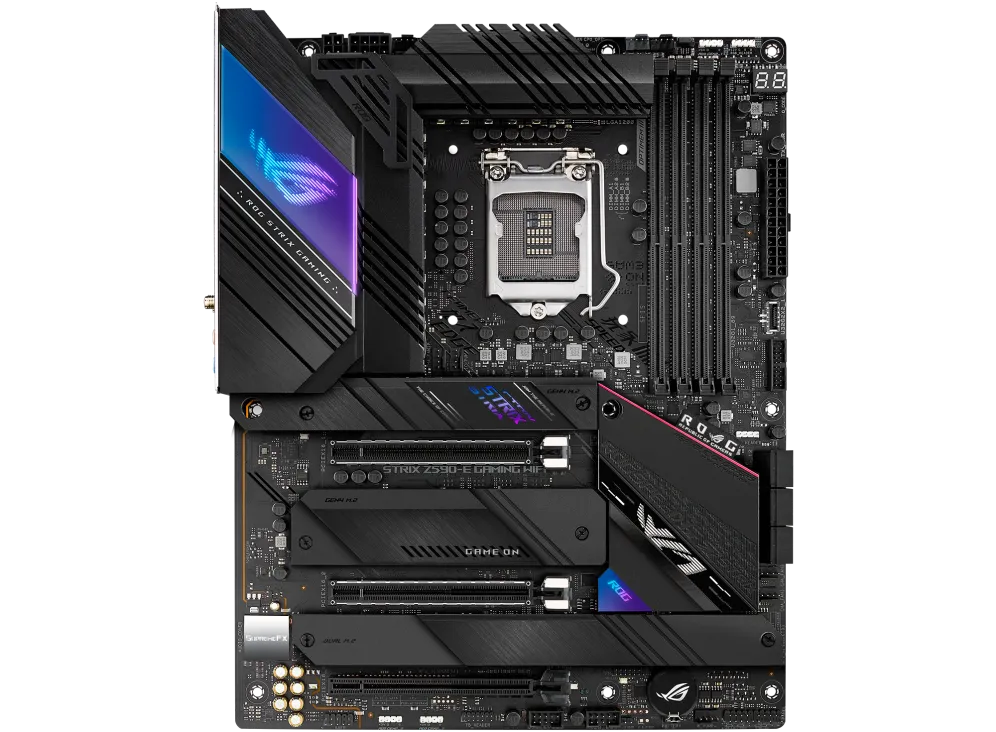

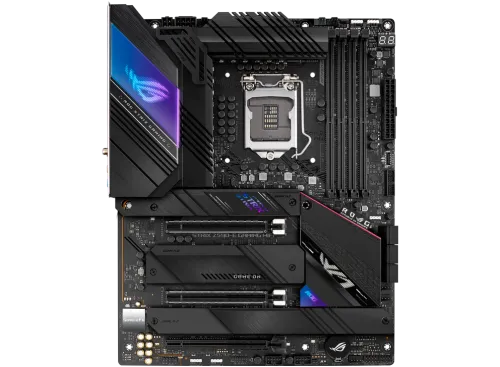

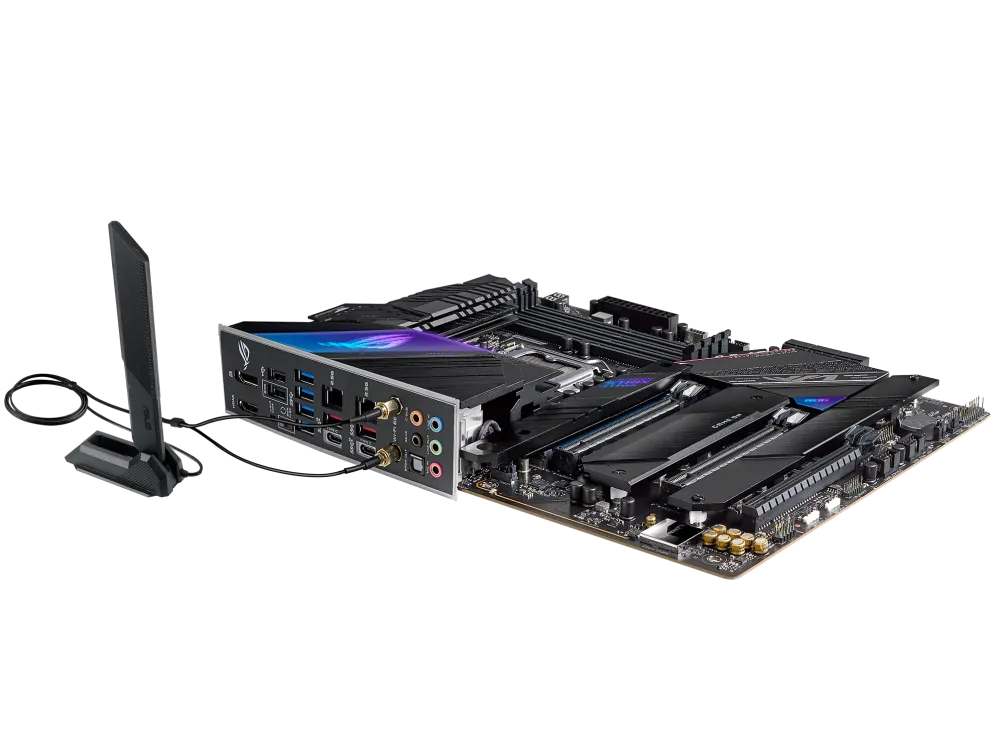

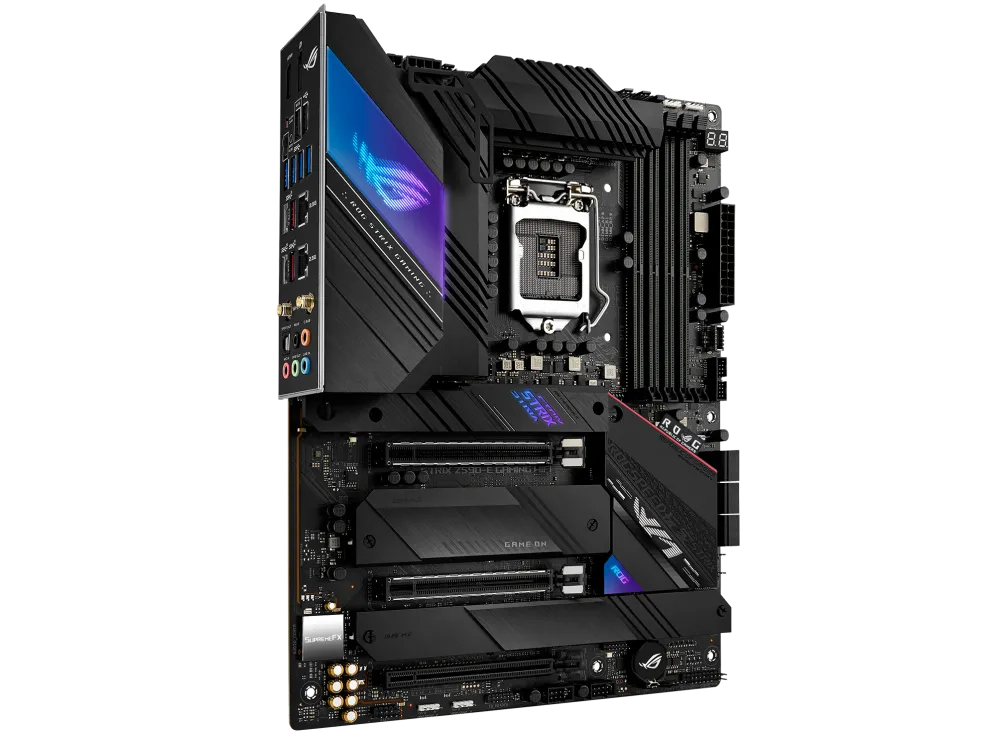

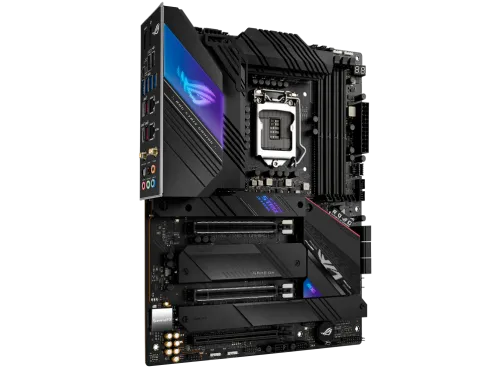

Дънна платка, ASUS ROG STRIX Z590-E GAM WIFI

1 x DisplayPort 1.4**

1 x HDMI™ 2.0**

* Graphics specifications may vary between CPU types.

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

2 x PCIe 4.0/3.0 x16 (x16, x8/x8, x8/x4) + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors

2 x PCIe 4.0/3.0 x16 slot(s)*

- Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 mode(s)

- Intel®10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 mode(s)

Intel® Z590 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)**

Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th &10th Gen Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

M.2_2 slot (Key M), type 2242/2260/2280/22110

- Intel® 11th processors support PCIe 4.0 x4 mode

- Intel® 10th processors support PCIe 3.0 x4 mode

Intel® Z590 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Memory Channels: 4DDR4 (Dual channel)

Max Memory Size: 128GB DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) /4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem III

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 port(s) (2 x Type-A, 1 x USB Type-C® )

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI™ port

1 x DisplayPort

1 x Intel® Wi-Fi 6E

2 x Intel® I225-V 2.5Gb Ethernet

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

1 x Thunderbolt 4 (onboard)

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

1 x VRM heatsink Fan header

1 x W_PUMP+ header

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Q Code

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt header

Audio Features: - SupremeFX Shielding Technology

- ALC4080 + Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Audio cover

2 x Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard
