- ASROCK
Цена
€103 92 / 203 25 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://pg.asrock.com/MB/AMD/B650M%20PG%20Lightning/index.asp#Specification
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Chipset
- AMD B650
Expansion slots
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire™
- 15? Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
Memory type
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 192GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Rear panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
Lan
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Form factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS
- Microsoft Windows® 10 64-bit / 11 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://pg.asrock.com/MB/AMD/B650M%20PG%20Lightning/index.asp#Specification |
| Chipset | - AMD B650 |
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | - Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors* |
| Memory type | - Dual Channel DDR5 Memory Technology |
| Memory type | - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Memory type | - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* |
| Memory type | - 4 x DDR5 DIMM Slots |
| Memory type | - Max. capacity of system memory: 192GB |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Audio | - Nahimic Audio |
| Rear panel I/O | - 1 x HDMI Port |
| Rear panel I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Rear panel I/O | - 1 x DisplayPort 1.4 |
| Rear panel I/O | - 2 x Antenna Mounting Points |
| Rear panel I/O | - 2 x USB 3.2 Gen1 Type-A Ports |
| Rear panel I/O | - 1 x RJ-45 LAN Port |
| Rear panel I/O | - 1 x BIOS Flashback Button |
| Rear panel I/O | - 4 x USB 2.0 Ports |
| Rear panel I/O | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| Rear panel I/O | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| LAN | - Dragon RTL8125BG |
| LAN | - Smart Auto Adjust Bandwidth Control |
| LAN | - Visual User Friendly UI |
| LAN | - Visual Network Usage Statistics |
| LAN | - Optimized Default Setting for Game, Browser, and Streaming Modes |
| LAN | - User Customized Priority Control |
| LAN | - Supports Phantom Gaming LAN Software |
| Expansion Slots | - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* |
| Expansion Slots | - Supports AMD CrossFire™ |
| Expansion Slots | - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* |
| Expansion Slots | Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Expansion Slots | - 15? Gold Contact in VGA PCIe Slot (PCIE1) |
| Graphics | - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| I/O | - 1 x HDMI Port |
| I/O | - HD Audio Jacks: Line in / Front Speaker / Microphone |
| I/O | - 1 x DisplayPort 1.4 |
| I/O | - 2 x Antenna Mounting Points |
| I/O | - 2 x USB 3.2 Gen1 Type-A Ports |
| I/O | - 1 x RJ-45 LAN Port |
| I/O | - 1 x BIOS Flashback Button |
| I/O | - 4 x USB 2.0 Ports |
| I/O | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) |
| I/O | - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors |
| Storage | Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* |
| Storage | - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* |
| Connectors | - 1 x Power LED and Speaker Header |
| Connectors | - 1 x RGB LED Header* |
| Connectors | - 1 x 24 pin ATX Power Connector |
| Connectors | - 1 x Front Panel Audio Connector |
| Connectors | - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** |
| Connectors | - 1 x SPI TPM Header |
| Connectors | - 1 x CPU Fan Connector (4-pin)*** |
| Connectors | - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** |
| Connectors | - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) |
| Connectors | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| Connectors | - 3 x Addressable LED Headers** |
| Connectors | - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) |
| Connectors | - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) |
| Connectors | - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Тегло | 0.00кг |

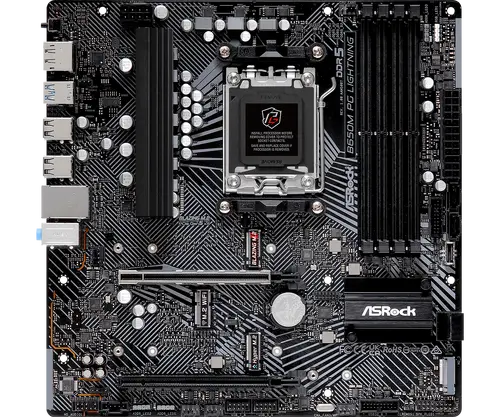

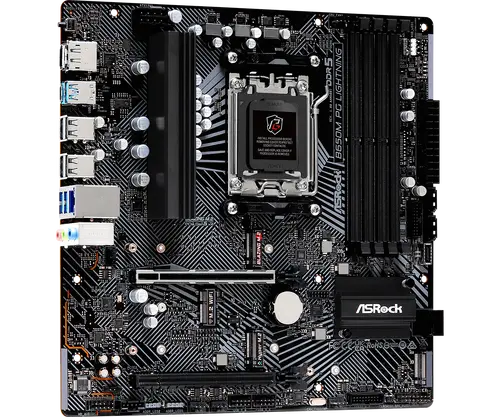

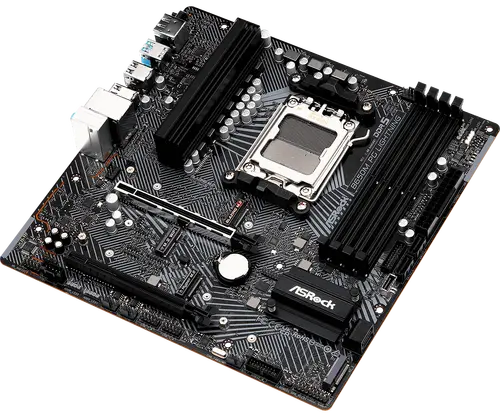

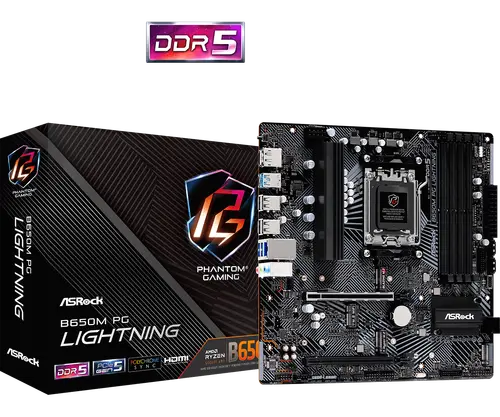

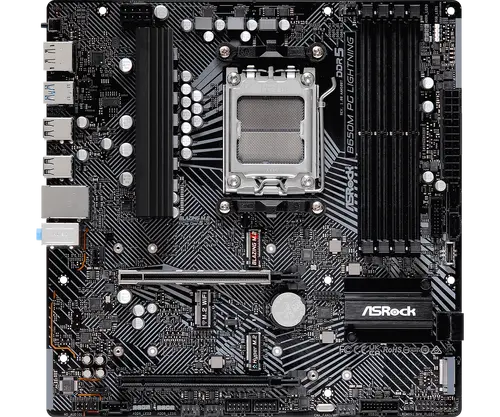

Дънна платка ASRock B650M PG LIGHTING – Мощност и Ефективност
Отключете производителността на следващото поколение с ASRock B650M PG LIGHTING, създадена за процесори AMD Ryzen™ 7000. Тази micro-ATX дънна платка е идеална за геймъри, креатори и мултитаскъри, предлагайки светкавична скорост, бъдещо-устойчиви връзки и стабилност на достъпна цена.
Защо да изберете ASRock B650M PG LIGHTING?
- Оптимизирана за Ryzen 7000 – Използвайте пълната мощ на новите AMD процесори с интелигентно управление на енергията.
- Поддръжка на DDR5 памет – До 40% по-бърза скорост спрямо DDR4 за безпроблемен мултитаскинг.
- PCIe 5.0 – Подгответе се за бъдещето с ултра-висока пропускливост за видеокарти и NVMe SSD.
- 2.5G LAN & Wi-Fi 6 – Наслаждавайте се на онлайн игри и 4K стрийминг без закъснения.
- Стилен дизайн с RGB – Модерен черен PCB и светещи ефекти за визуален акцент.
Технически спецификации
- Сокет: AM5 (AMD Ryzen™ 7000)
- Чипсет: AMD B650
- Памет: 4 слота DDR5 (до 6400+ MHz, макс. 128GB)
- Разширения: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
- Съхранение: 2x M.2 (PCIe 4.0), 4x SATA III
- Мрежа: 2.5G LAN, Wi-Fi 6 (опционално)
Надградете вашия компютър с ASRock B650M PG LIGHTING – идеалният баланс между мощ, надеждност и цена!
