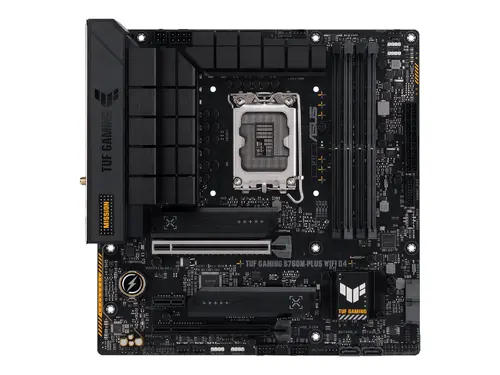

ASUS TUF GAMING B760M-PLUS WIFI D4 LGA1700 mATX 4xDIMM 90MB1DG0-M0EAY0

ASUS
Няма Наличност

ASUS TUF GAMING B760M-PLUS WIFI D4 LGA1700 mATX 4xDIMM DDR4 1xDP 1xHDMI 4xSATA 2xM.2 MB

Няма Наличност

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

Сравни

Удължи гаранцията си

+1 година: +44 лв.

+2 години: +65 лв.

Код: 90MB1DG0-M0EAY0
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

Добави

ТВОЯ РЕЙТИНГ

Оцени

Мнения

Напиши

The TUF GAMING B760M-PLUS WIFI D4 combines the essential features of Intel processors with dedicated gaming functionality and components that have proven their durability. Designed with heavy-duty components, optimized power solutions and a complete cooling system, this motherboard exceeds expectations, delivering solid gaming performance to your system. TUF GAMING motherboards also undergo rigorous endurance testing to ensure they can withstand conditions where others might fail. Aesthetically, this model features an embossed nameplate and geometric design elements to reflect the reliability and stability that define the TUF GAMING range.

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения

General
Product Type	Motherboard - micro ATX
Chipset Type	Intel B760
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	128 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Compliant Standards	Digital Theater Systems (DTS), High Definition Audio
LAN
Network Interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2
RAID Features	Intel Rapid Storage Technology
Interfaces	1 x HDMI 1 x DisplayPort 2 x aerial 4 x USB 3.2 Gen 2 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 1 1 x SPDIF out 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out - mini-jack
Internal Interfaces	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x audio - header 1 x Thunderbolt - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, TUF ESD Guards, 6 Layer PCB, ProCool Power Connector, Dr.MOS MOSFET, TUF LANGuard, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, 12+1 Phase Power Design, ASUS SafeSlot Core+, M.2 Q-Latch, Windows 11 compatible, CPU Socket lever protector, VRM heatsink design
Miscellaneous
Included Accessories	ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker
Cables Included	2 x Serial ATA cable
Software Included	ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, Norton 360 for Gamers, ASUS Fan Xpert 2+, DTS Audio Processing
Width	24.4 cm
Depth	24.4 cm

Атрибут	Стойност
Product Type	Motherboard - micro ATX
Chipset Type	Intel B760
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Size	128 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type	HD Audio (8-channel)
Compliant Standards	Digital Theater Systems (DTS), High Definition Audio
Network Interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2
RAID Features	Intel Rapid Storage Technology
Interfaces	1 x HDMI 1 x DisplayPort 2 x aerial 4 x USB 3.2 Gen 2 2 x USB 2.0 1 x
Internal Interfaces	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x audio - header 1 x Thunder
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Hardware Features	ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, TUF ESD Guards, 6 Layer PCB, ProCool Power Connector, Dr.MOS MOSFET,
Software Included	ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, Norton 360 for Gamers, ASUS Fan Xpert 2+, DTS Audio Processing
Width	24.4 cm
Depth	24.4 cm
BIOS Type	AMI
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Included Accessories	ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker
Cables Included	2 x Serial ATA cable
Тегло	0.00кг
