- GIGABYTE
Цена
€541 79 / 1059 65 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
Безплатна Доставка
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/Z890-AORUS-MASTER#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support
- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs
When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
* Support for HDMI 1.4 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Chipset
Intel® Z890 Express Chipset
Expansion slots
CPU
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector.
Chipset
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage
CPU
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)
Chipset
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

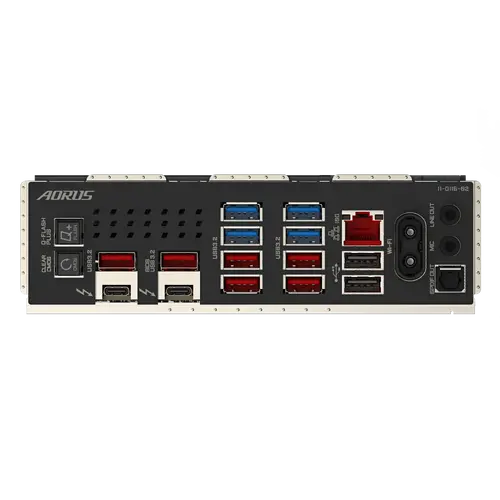

Rear panel I/O
CPU
- 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices
Chipset
- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset+USB 3.2 Gen 2x2 Hub
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
Chipset+2 USB 3.2 Gen 1 Hubs
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+2 USB 2.0 Hubs
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Connectors
iTE® I/O Controller Chip
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header4 x system fan headers
4 x system fan/water cooling pump headers
4 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers
Voltage Measurement Points
(Note) Actual support may vary by CPU
Back Panel Connectors: 1 x Q-Flash Plus button
1 x Clear CMOS button
2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
6 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 por
Audio
Realtek® ALC1220 CODEC
* The front panel line out jack supports DSD audio.
ESS ES9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 7 BE200NGW
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country`s regulations.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/Z890-AORUS-MASTER#kf |
| Chipset | Intel® Z890 Express Chipset |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| CPU's supported | L3 cache varies with CPU |
| CPU's supported | * Please refer to "CPU Support List" for more information. |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Memory type | Support CUDIMM memory module |
| Memory type | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | High Definition Audio |
| Audio | Support for S/PDIF Out |
| Audio | Realtek® ALC1220 CODEC |
| Audio | Support for DTS:X® Ultra |
| Audio | * The front panel line out jack supports DSD audio. |
| Audio | ESS ES9118 DAC chip |
| Audio | 2/4/5.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. |
| Rear panel I/O | CPU |
| Rear panel I/O | Chipset |
| Rear panel I/O | - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| Rear panel I/O | - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Rear panel I/O | - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Rear panel I/O | Chipset+2 USB 2.0 Hubs |
| Rear panel I/O | *Support up to 40Gbps with Thunderbolt devices |
| Rear panel I/O | *Support up to 20Gbps with USB4 devices |
| Rear panel I/O | *Support up to 10Gbps with USB 3.2 devices |
| Rear panel I/O | - 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel |
| Rear panel I/O | - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| Rear panel I/O | Chipset+USB 3.2 Gen 2x2 Hub |
| Rear panel I/O | Chipset+2 USB 3.2 Gen 1 Hubs |
| LAN | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | CPU |
| Expansion Slots | Chipset |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) |
| Expansion Slots | * The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector. |
| Wireless | (Actual data rate may vary depending on environment and equipment.) |
| Wireless | - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | - BLUETOOTH 5.4 |
| Wireless | ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
| Wireless | - Support for 11be 320MHz wireless standard |
| Wireless | Intel® Wi-Fi 7 BE200NGW |
| Wireless | * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10. |
| Wireless | ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country`s regulations. |
| Graphics | (Graphics specifications may vary depending on CPU support.) |
| Graphics | Support for up to triple-display at the same time |
| Graphics | - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
| Graphics | * Support for HDMI 1.4 version. |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Graphics | When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). |
| Graphics | When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). |
| Graphics | * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information. |
| Graphics | * Support for DisplayPort 2.1 version and HDCP 2.3 |
| Graphics | - 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| Features | Support for Smart Backup |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | CPU |
| I/O | Chipset |
| I/O | - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header |
| I/O | - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| I/O | - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| I/O | Chipset+2 USB 2.0 Hubs |
| I/O | *Support up to 40Gbps with Thunderbolt devices |
| I/O | *Support up to 20Gbps with USB4 devices |
| I/O | *Support up to 10Gbps with USB 3.2 devices |
| I/O | - 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel |
| I/O | - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| I/O | Chipset+USB 3.2 Gen 2x2 Hub |
| I/O | Chipset+2 USB 3.2 Gen 1 Hubs |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU |
| Storage | Chipset |
| Storage | - 4 x SATA 6Gb/s connectors |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU) |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 2 x 8-pin ATX 12V power connectors |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x reset button |
| Connectors | 1 x reset jumper |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 1 x HDMI port (Note) |
| Connectors | 4 x USB 3.2 Gen 1 ports |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
| Connectors | iTE® I/O Controller Chip |
| Connectors | Back Panel Connectors: 1 x Q-Flash Plus button |
| Connectors | 2 x USB 3.2 Gen 1 headers |
| Connectors | 1 x power button |
| Connectors | 1 x Clear CMOS button |
| Connectors | 4 x system fan/water cooling pump headers |
| Connectors | 1 x noise detection header |
| Connectors | 2 x temperature sensor headers |
| Connectors | Voltage Measurement Points |
| Connectors | 4 x addressable RGB Gen2 LED strip headers |
| Connectors | 5 x M.2 Socket 3 connectors |
| Connectors | 1 x CPU fan/water cooling pump header4 x system fan headers |
| Connectors | (Note) Actual support may vary by CPU |
| Connectors | 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) |
| Connectors | 6 x USB 3.2 Gen 2 Type-A ports (red) |
| Connectors | 2 x USB 2.0/1.1 por |
| Тегло | 0.00кг |

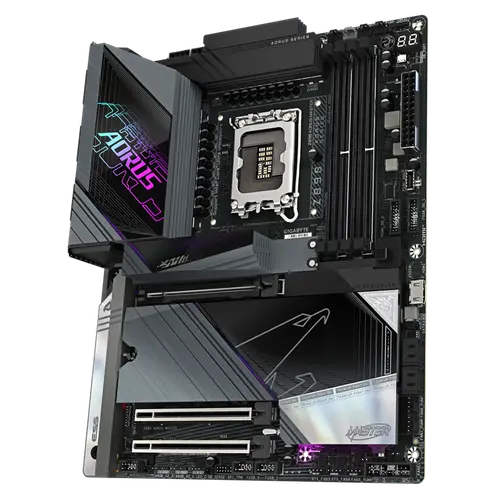

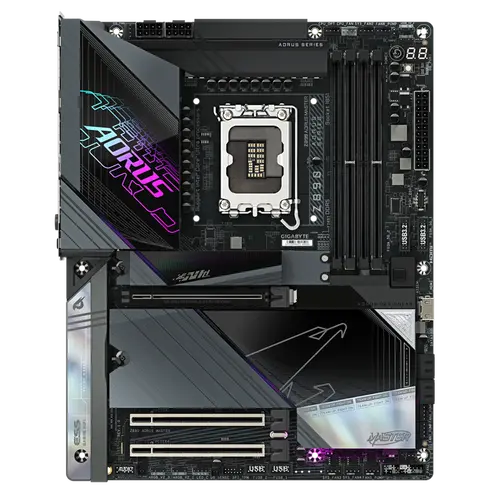

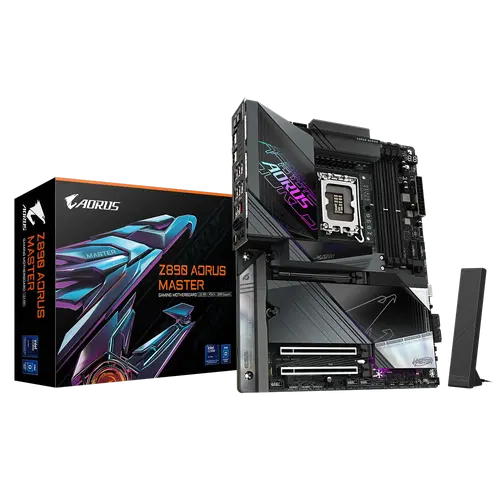

GIGABYTE GB Z890 AORUS MASTER – Върхова производителност за геймъри и творци
Освободете пълната мощ на вашия ново поколение Intel® процесор с GIGABYTE Z890 AORUS MASTER дънната платка. Проектирана за елитна производителност, тя предлага несравнима скорост, стабилност и възможности за персонализация за геймъри, овърклокъри и създатели на съдържание.
Защо да изберете Z890 AORUS MASTER?
- Ново поколение мощност: Поддръжка на Intel® 14-то/13-то поколение процесори с 20+1+2 фазов VRM за изключително стабилно захранване.
- Свръхбърза свързаност: PCIe 5.0 слотове, поддръжка на DDR5 памет (до 8000+ MHz) и 5x M.2 слота за светлинно бързо съхранение.
- Напреднало охлаждане: Direct-Touch Heatpipe II, Fins-Array III и NanoCarbon покритие за ниски температури дори при тежки натоварвания.
- Завладяващ звук: Висококачествен ESS SABRE DAC и WIMA аудио кондензатори за професионален звук.
- Готовност за бъдещето: Wi-Fi 7, 10GbE LAN и USB4® за иновативна свързаност.
Технически спецификации:
- Сокет: LGA 1700 (Intel® 14-то/13-то поколение)
- Памет: 4x DDR5 DIMM (до 192GB, XMP 3.0)
- Съхранение: 5x M.2 (PCIe 5.0/4.0), 6x SATA 6Gb/s
- Разширение: PCIe 5.0 x16, PCIe 4.0 x4
- Мрежа: Wi-Fi 7, 10GbE LAN, 2.5GbE LAN
Господствайте в игрите, стриймвайте без прекъсване и създавайте без граници – Z890 AORUS MASTER е вашата крайна основа.
Запишете се за нашият Бюлетин
Запиши се за нашия онлайн бюлетин и научи първи за промоционални и нови продукти.
Методи за Плащане
- Наложен Платеж
- Кредитна/Дебитна Карта
- Банков Превод
- На изплащане ПБ Лични Финанси
