- GIGABYTE
- Няма Наличност
Няма Наличност
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/B760-DS3H-AX-DDR4-rev-1x#kf
Graphics
Integrated Graphics Processor-Intel® HD Graphics support
-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
-1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU
-1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset
-4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5)
Storage
CPU
-1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset
-1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
-4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
Connectors
Internal I/O Connectors
-1 x 24-pin ATX main power connector
-1 x 8-pin ATX 12V power connector
-1 x CPU fan header
-1 x CPU fan/water cooling pump header
-3 x system fan headers
-1 x system fan/water cooling pump header
-2 x addressable LED strip headers
-2 x RGB LED strip headers
-2 x M.2 Socket 3 connectors
-4 x SATA 6Gb/s connectors
-1 x front panel header
-1 x front panel audio header
-1 x S/PDIF Out header
-1 x USB Type-C® header, with USB 3.2 Gen 1 support
-1 x USB 3.2 Gen 1 header
-2 x USB 2.0/1.1 headers
-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
-1 x serial port header
-1 x Q-Flash Plus button
-1 x reset button
-1 x reset jumper
-1 x Clear CMOS jumper
Back Panel Connectors
-1 x PS/2 keyboard/mouse port
-2 x SMA antenna connectors (2T2R)
-1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
-1 x USB 3.2 Gen 2 Type-A port (red)
-4 x USB 2.0/1.1 ports
-1 x HDMI port
-1 x DisplayPort
-1 x RJ-45 port
-3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Lan
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Wireless
AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-LUETOOTH 5.2
-Support for 11ax 80MHz wireless standard
Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.3
-Support for 11ax 160MHz wireless standard
Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.3
-Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)
-WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
-BLUETOOTH 5.3
-Support for 11ax 160MHz wireless standard
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX Form Factor
30.5cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Chipset | Intel® B760 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.) |
| Form Factor | 30.5cm x 24.4cm |
| Form Factor | ATX Form Factor |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Audio | Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Expansion Slots | CPU |
| Expansion Slots | Chipset |
| Expansion Slots | -1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
| Expansion Slots | -4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Wireless | Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) |
| Wireless | -WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | -BLUETOOTH 5.3 |
| Wireless | -Support for 11ax 160MHz wireless standard |
| Wireless | AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0) |
| Wireless | -LUETOOTH 5.2 |
| Wireless | -Support for 11ax 80MHz wireless standard |
| Wireless | Intel® Wi-Fi 6E AX211 (PCB rev. 1.2) |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3) |
| Graphics | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | ** Support native HDMI 2.1 TMDS compatible ports. |
| Graphics | -1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Graphics | -1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 128 Mbit flash |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU |
| Storage | Chipset |
| Storage | -4 x SATA 6Gb/s connectors |
| Storage | -1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Storage | -1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| Connectors | Back Panel Connectors |
| Connectors | Internal I/O Connectors |
| Connectors | -1 x 24-pin ATX main power connector |
| Connectors | -1 x 8-pin ATX 12V power connector |
| Connectors | -1 x CPU fan header |
| Connectors | -1 x CPU fan/water cooling pump header |
| Connectors | -4 x SATA 6Gb/s connectors |
| Connectors | -1 x front panel header |
| Connectors | -1 x front panel audio header |
| Connectors | -1 x USB 3.2 Gen 1 header |
| Connectors | -1 x reset jumper |
| Connectors | -1 x Clear CMOS jumper |
| Connectors | -1 x Q-Flash Plus button |
| Connectors | -2 x SMA antenna connectors (2T2R) |
| Connectors | -1 x USB 3.2 Gen 2 Type-A port (red) |
| Connectors | -4 x USB 2.0/1.1 ports |
| Connectors | -1 x RJ-45 port |
| Connectors | -3 x audio jacks |
| Connectors | -2 x USB 2.0/1.1 headers |
| Connectors | -1 x reset button |
| Connectors | -3 x system fan headers |
| Connectors | -1 x system fan/water cooling pump header |
| Connectors | -2 x addressable LED strip headers |
| Connectors | -2 x RGB LED strip headers |
| Connectors | -2 x M.2 Socket 3 connectors |
| Connectors | -1 x S/PDIF Out header |
| Connectors | -1 x USB Type-C® header, with USB 3.2 Gen 1 support |
| Connectors | -1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Connectors | -1 x serial port header |
| Connectors | -1 x PS/2 keyboard/mouse port |
| Connectors | -1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
| Connectors | -1 x HDMI port |
| Connectors | -1 x DisplayPort |
| Interface | Chipset |
| Interface | -4 x USB 2.0/1.1 ports on the back panel |
| Interface | -4 x USB 2.0/1.1 ports available through the internal USB headers |
| Interface | -1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support |
| Interface | -1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header |
| Interface | -1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| Interface | -2 x USB 3.2 Gen 1 ports available through the internal USB header |
| Interface | Chipset+2 USB 2.0 Hubs |
| Тегло | 0.00кг |

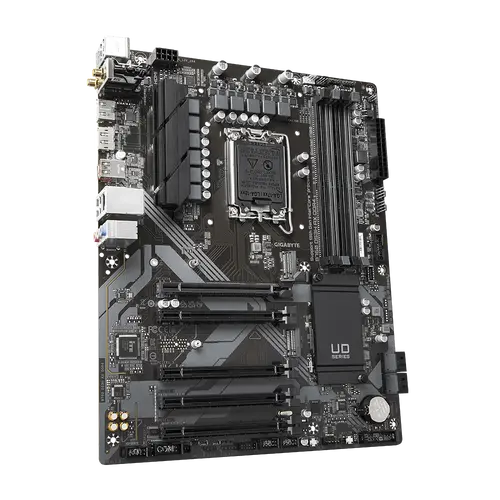

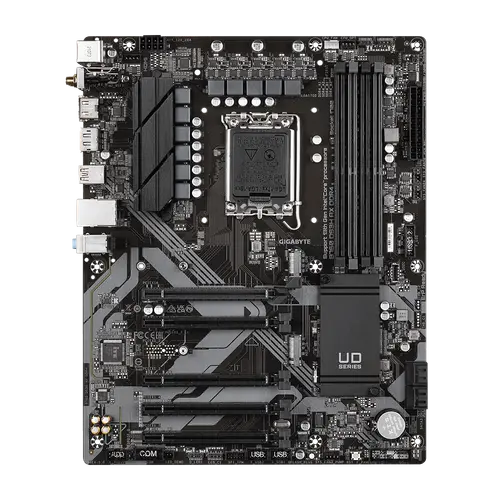

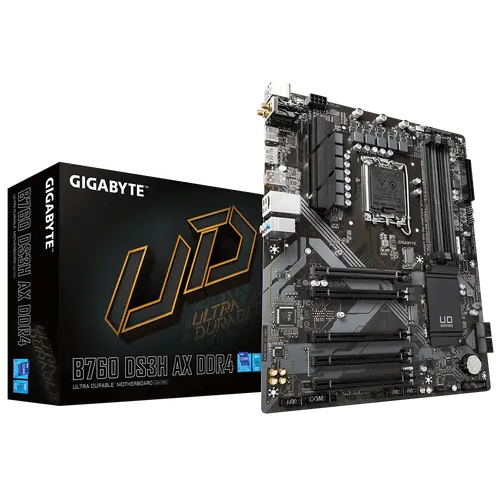

Дънна платка GIGABYTE B760 DS3H AX DDR4 – Мощност за следващото поколение
Отключете върхова производителност с GIGABYTE B760 DS3H AX DDR4, създадена за процесори Intel 13-то и 12-то поколение. Тази ATX дънна платка предлага безпроблемен мултитаскинг, ултра-бърз интернет и стабилно захранване за геймъри, креатори и професионалисти.
Основни предимства:
- Свръхбърз интернет: WiFi 6 и 2.5GbE LAN за игри и 4K стрийминг без закъснения.
- Следващо ниво производителност: Поддръжка на DDR4 памет (до 5333MHz OC) и PCIe 4.0 за бърз трансфер на данни.
- Интелигентно охлаждане: Многослойни радиатори и управление на вентилаторите за оптимална температура.
- Разширимо хранилище: 2 слота M.2 (PCIe 4.0) и 6 SATA порта за бърз достъп до данни.
- Дълготрайна издръжливост: Висококачествени компоненти и защита от пренапрежения.
Технически спецификации:
- Сокет: LGA 1700 (Intel 13-то/12-то поколение)
- Чипсет: Intel B760
- Памет: 4x DDR4 DIMM (до 128GB, 5333MHz OC)
- Разширителни слотове: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1
- Мрежови връзки: WiFi 6 (802.11ax), 2.5GbE LAN
- Хранилище: 2x M.2 (PCIe 4.0), 6x SATA 6Gbps
Надградете вашата система с GIGABYTE B760 DS3H AX DDR4 – идеалният баланс между мощ и надеждност!
