- GIGABYTE
- Няма Наличност
Няма Наличност
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.gigabyte.com/Motherboard/A620M-H-rev-10/sp#sp
Graphics
Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Chipset
AMD A620
Expansion slots
1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200/4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

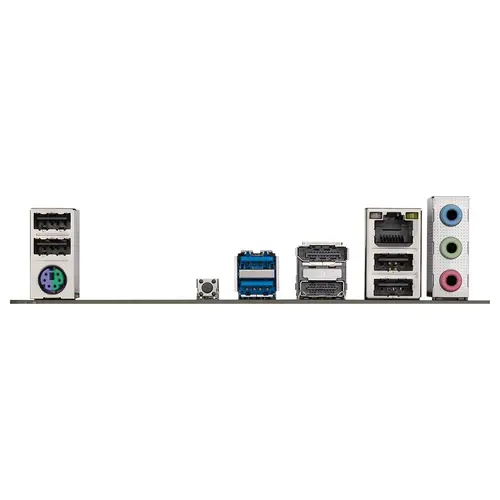

Rear panel I/O
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Lan
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
23.0cm x 22.5cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Chipset | AMD A620 |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules |
| Memory type | 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
| Memory type | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 23.0cm x 22.5cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode |
| Expansion Slots | AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| Expansion Slots | AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Graphics | * Support for DisplayPort 1.4 version. |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| BIOS | 1 x 256 Mbit flash |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| I/O | 4 x USB 2.0/1.1 ports |
| I/O | 1 x DisplayPort |
| I/O | 1 x RJ-45 port |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI Port |
| I/O | 1 x PS/2 keyboard/mouse port |
| I/O | 1 x Q-Flash Plus button |
| I/O | 2 x USB 3.2 Gen 1 ports |
| Storage | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| Storage | RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Storage | 4 x SATA 6Gb/s connectors |
| Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| Storage | AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 1 x M.2 Socket 3 connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 2 x system fan headers |
| Connectors | 1 x addressable LED strip header |
| Connectors | 1 x RGB LED strip header |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Тегло | 0.00кг |

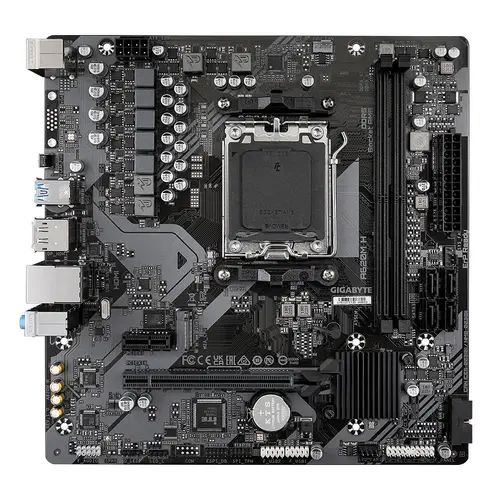

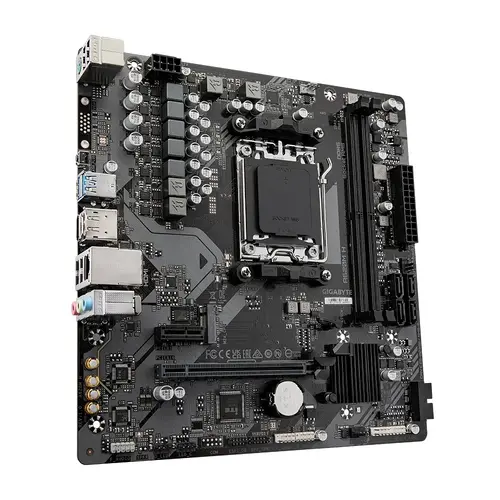

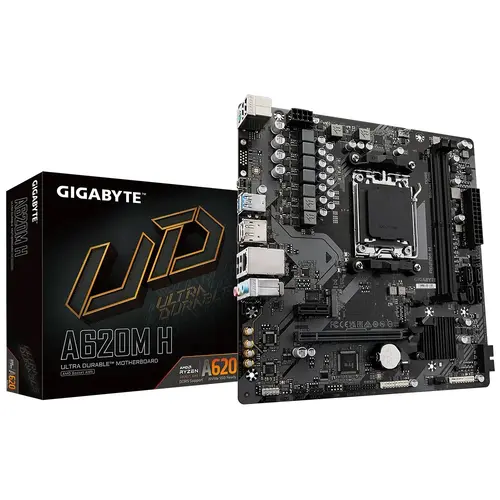

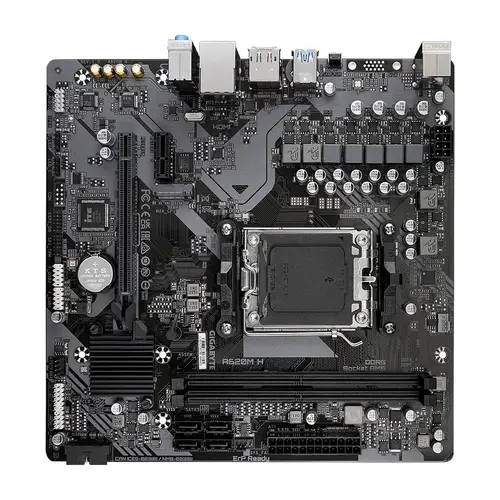

Дънна платка GIGABYTE GB A620M H / AM5 – Мощност и Ефективност
Разгърнете пълния потенциал на вашия AMD Ryzen™ 7000 процесор с GIGABYTE A620M H дънна платка. Създадена за надеждност и производителност, тази micro-ATX платка предлага безпроблемен мултитаскинг, ясна графика и бъдещо-готови връзки – на невероятна цена.
Защо Да Изберете Тази Платка?
- Следващо поколение: Поддръжка на AM5 сокет и Ryzen™ 7000 процесори за светкавична скорост.
- Стабилно захранване: Устойчив VRM дизайн за плавна работа дори при натоварване.
- Бързи връзки: PCIe 4.0 поддръжка за NVMe SSD и периферия.
- Завладяваща графика: HDMI и DisplayPort за 4K изходи.
- Лесни надграждания: 2 слота DDR5 и M.2 за бързо разширяване.
Технически Спецификации (Проверени)
- Сокет: AM5 (AMD Ryzen™ 7000)
- Чипсет: AMD A620
- Памет: 2x DDR5 слота (до 64GB)
- Разширение: 1x PCIe 4.0 x16, 1x M.2 (PCIe 4.0)
- Видео изходи: HDMI, DisplayPort
- Мрежа: Gigabit Ethernet
Идеална за геймъри, креатори и професионалисти, GIGABYTE A620M H съчетава мощност и достъпност. Постройте вашия перфектен компютър днес!
