- ASUS
Цена
€288 84 / 564 92 лв
с ДДС
* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p/
Graphics
1 x HDMI™ port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
CPU's supported
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD X870 Chipset
Expansion slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
Storage
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**
2 x SATA 6Gb/s ports**
* PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Memory type
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
Rear panel I/O
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
USB
Rear USB (Total 10 ports)
2 x USB4® (40Gbps) ports (2 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Lan
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX Form Factor, 30.5 cm x 24.4 cm
OS
Windows 11, Windows 10 64-bit
Warranty
36 Months
Данни, подадени от официалния вносител за България.
| Атрибут | Стойност |
|---|---|
| Vendor_url | https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p/ |
| Chipset | AMD X870 Chipset |
| OS | Windows 11, Windows 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Memory type | Dual channel memory architecture |
| Memory type | Supports AMD Extended Profiles for Overclocking (EXPO™) |
| Memory type | 4 x DIMM slots, max. 256GB, DDR5 |
| Memory type | ASUS Enhanced Memory Profile (AEMP) |
| Memory type | Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors |
| Memory type | ECC and Non-ECC, Un-buffered DIMM |
| Form Factor | ATX Form Factor, 30.5 cm x 24.4 cm |
| Audio | - Dedicated audio PCB layers |
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Audio | Audio Features |
| Audio | - Audio Shielding |
| Audio | - Supports up to 24-Bit/192 kHz playback |
| Audio | - Premium audio capacitors |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Rear panel I/O | 3 x audio jacks |
| Rear panel I/O | 1 x HDMI™ port |
| Rear panel I/O | 1 x BIOS FlashBack™ button |
| Rear panel I/O | 1 x Realtek 2.5Gb Ethernet port |
| Rear panel I/O | 4 x USB 2.0 ports (4 x Type-A) |
| Rear panel I/O | 1 x USB 10Gbps port (1 x Type-A) |
| Rear panel I/O | 3 x USB 5Gbps ports (3 x Type-A) |
| Rear panel I/O | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| LAN | ASUS LANGuard |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Expansion Slots | AMD Ryzen™ 8000 Series Desktop Processors |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** |
| Expansion Slots | 2 x PCIe 4.0 x16 slots (support x1 mode) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| Expansion Slots | AMD X870 Chipset |
| Graphics | 1 x HDMI™ port |
| Graphics | 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| Features | ASUS EZ DIY |
| Features | ASUS 5X PROTECTION III |
| Features | ASUS Q-Design |
| Features | ASUS Thermal Solution |
| Features | - LANGuard |
| Features | - Overvoltage Protection |
| Features | - Stainless-Steel Back I/O |
| Features | - Q-DIMM |
| Features | - Q-LED Core |
| Features | - Q-Slot |
| Features | Aura Sync |
| Features | - Addressable Gen 2 headers |
| Features | - VRM heatsink design |
| Features | - BIOS FlashBack™ button |
| Features | - BIOS FlashBack™ LED |
| Features | - M.2 Q-Latch |
| Features | - Flexible M.2 heatsink |
| Features | - ProCool |
| Features | - PCIe Slot Q-Release |
| Features | - Pre-mounted I/O shield |
| Features | - SafeSlot |
| Features | - DIGI+ VRM (- Digital power design with DrMOS) |
| Features | - Q-Dashboard |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 3 x audio jacks |
| I/O | 1 x HDMI™ port |
| I/O | 1 x BIOS FlashBack™ button |
| I/O | 1 x Realtek 2.5Gb Ethernet port |
| I/O | 4 x USB 2.0 ports (4 x Type-A) |
| I/O | 1 x USB 10Gbps port (1 x Type-A) |
| I/O | 3 x USB 5Gbps ports (3 x Type-A) |
| I/O | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| Storage | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| Storage | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Storage | AMD Ryzen™ 8000 Series Desktop Processors |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
| Storage | AMD RAIDXpert2 Technology |
| Storage | Ryzen™ 9000 Series Processors: RAID 0/1/5/10 |
| Storage | Ryzen™ 8000 Series Processors: RAID 0/1 |
| Storage | Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset |
| Storage | M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* |
| Storage | M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)** |
| Storage | 2 x SATA 6Gb/s ports** |
| Storage | * PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs. |
| Storage | ** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs. |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x COM port header |
| Connectors | Fan and Cooling related |
| Connectors | 1 x 4-pin CPU Fan header |
| Connectors | Power related |
| Connectors | 1 x 24-pin Main Power connector |
| Connectors | Storage related |
| Connectors | USB |
| Connectors | Miscellaneous |
| Connectors | 1 x Clear CMOS header |
| Connectors | 1 x 10-1 pin System Panel header |
| Connectors | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Connectors | 3 x Addressable Gen 2 headers |
| Connectors | 1 x SPI TPM header (14-1 pin) |
| Connectors | 1 x 4-pin CPU OPT Fan header |
| Connectors | 1 x 4-pin AIO Pump header |
| Connectors | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| Connectors | 4 x 4-pin Chassis Fan headers |
| Connectors | 2 x 8-pin +12V CPU Power connectors |
| Connectors | 1 x Front Panel Audio header (F_AUDIO) |
| Connectors | 4 x M.2 slots (Key M) |
| Connectors | 2 x SATA 6Gb/s ports |
| Connectors | 1 x USB 10Gbps connector (supports USB Type-C®) |
| USB | Front USB (Total 7 ports) |
| USB | 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| USB | 4 x USB 2.0 ports (4 x Type-A) |
| USB | 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| USB | Rear USB (Total 10 ports) |
| USB | 1 x USB 10Gbps connector (supports USB Type-C®) |
| USB | 3 x USB 5Gbps ports (3 x Type-A) |
| USB | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) |
| USB | 1 x USB 10Gbps port (1 x Type-A) |
| Тегло | 0.00кг |
Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.
| Атрибут | Стойност |
|---|---|
| Сокет | AM5 |
| Форм фактор | ATX |
| Чипсет | AMD X870 |
| Тип памет | DDR5 |
| Слотове за памет (count) | 4 |
| Максимална памет (GB) | 192 |
| M.2 слотове (count) | 4 |
| SATA портове (count) | 4 |
| PCIe x16 слотове (count) | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове (count) | 2 |
| RGB подсветка | Да |
| Тегло | 0.00кг |

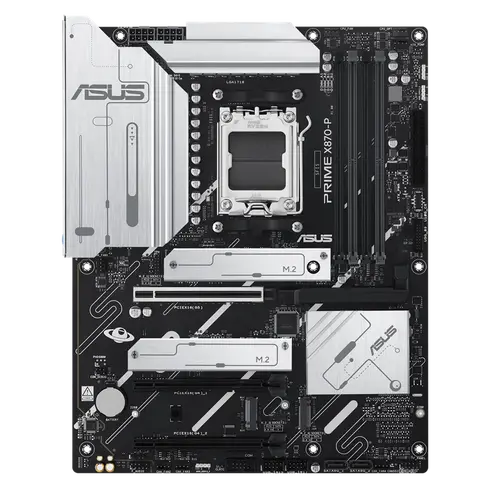

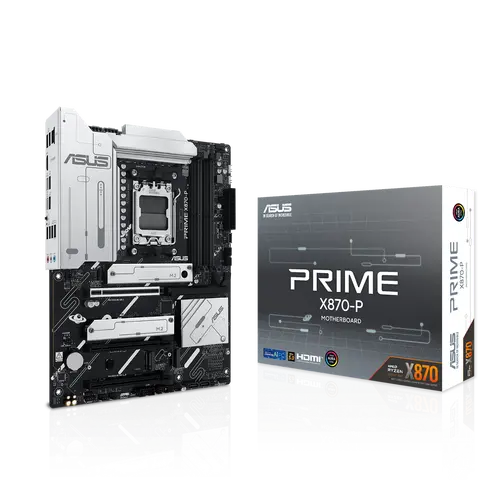

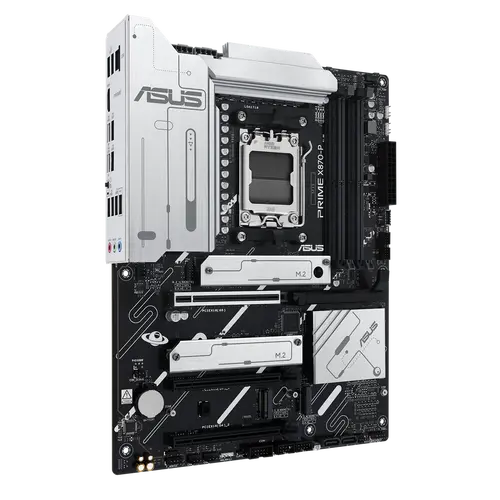

Дънна платка ASUS PRIME X870-P /AM5
Отключете пълния потенциал на процесорите AMD Ryzen™ 9000 Series с ASUS PRIME X870-P. Създадена за ентусиасти, които ценят стабилността, скоростта и модерната свързаност, тази ATX платка предлага PCIe 5.0, DDR5 памет и цялостно охлаждане за безупречна основа на вашата система.
Ключови Предимства
- Производителност от ново поколение — AM5 сокет и X870 чипсет, готови за Ryzen™ 9000, 8000 и 7000 серии, с PCIe 5.0 за графика и M.2 устройства.
- Свръхбърза свързаност — 2.5 Gb Ethernet, Wi-Fi 6E и множество USB 10Gbps портове, включително преден USB-C® конектор.
- Цялостно охлаждане — Големи радиатори за VRM и M.2, както и хибридни вентилаторни конектори гарантират стабилна работа под натоварване.
- Удобство при сглобяване — Q-LED Core, BIOS FlashBack™ и предварително монтиран I/O панел улесняват инсталацията и диагностиката.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | AM5 |
| Чипсет | AMD X870 |
| Форм фактор | ATX |
| Тип памет | DDR5 |
| Слотове за памет | 4 |
| Максимална памет | 192 GB |
| M.2 слотове | 4 |
| SATA портове | 4 |
| PCIe x16 слотове | 2 |
| Wi-Fi | Wi-Fi 6E |
| Скорост на LAN | 2.5 Gbps |
| USB-C портове | 2 (1 заден, 1 преден) |
| RGB подсветка | Да (Aura Sync хедъри) |
Какво има в кутията
- Дънна платка ASUS PRIME X870-P
- 2 x SATA 6Gb/s кабела
- ASUS Wi-Fi Q-антена
- 1 x M.2 гумен пакет
- 1 x Пакет винтове за M.2 SSD
- 1 x Ръководство за бърз старт
