- ASUS
- Няма Наличност
Няма Наличност
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Vendor_url
https://www.asus.com/Motherboards-Components/Motherboards/Expedition/PRIME-A520M-E/techspec/
Graphics
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)
Chipset
AMD A520
Expansion slots
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1
Storage
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset : 4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Memory type
2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

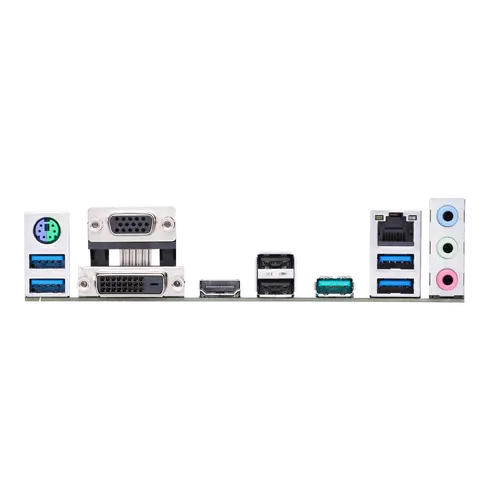

Rear panel I/O
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
Connectors
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature : - LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Lan
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
OS
Windows® 10 64-bit
Warranty
36 Months
| Атрибут | Стойност |
|---|---|
| Chipset | AMD A520 |
| OS | Windows® 10 64-bit |
| Warranty | 36 Months |
| CPU's supported | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors |
| Memory type | 2 x DIMM, Max. 64GB, DDR4 |
| Memory type | 4866(O.C)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory |
| Form Factor | mATX Form Factor, 22.6 cm x 22.1 cm |
| Audio | Premium audio capacitors, Realtek ALC887/8977 |
| Audio | -Surround Sound High Definition Audio CODEC * |
| Audio | Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Audio | LED-illuminated design |
| Audio | Audio Shielding |
| Audio | Dedicated audio PCB layers, Audio Feature |
| Audio | * Choose the chassis with HD audio module in front panel to support 8-channel audio output |
| LAN | Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard |
| Expansion Slots | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors,AMD A520 Chipset,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode) |
| Graphics | 1 x HDMI 2.1(4K@60HZ) |
| Features | ASUS Exclusive Software |
| Features | Armoury Crate |
| Features | AI Suite 3 |
| Features | - Performance and Power Saving Utility |
| Features | TurboV EVO |
| Features | EPU |
| Features | Digi+ VRM |
| Features | Fan Xpert |
| Features | - EZ update |
| Features | ASUS CPU-Z |
| Features | AI Charger |
| Features | DAEMON Tools |
| Features | Norton Anti-virus software (Free Trial for 60 days) |
| Features | WinRAR |
| Features | UEFI BIOS |
| Features | ASUS EZ DIY |
| Features | - ASUS CrashFree BIOS 3 |
| Features | - ASUS EZ Flash 3 |
| Features | - ASUS UEFI BIOS EZ Mode |
| Features | ASUS Special Features |
| Features | ASUS 5X PROTECTION III |
| Features | - ASUS DIGI+ VRM |
| Features | - ASUS LANGuard |
| Features | - ASUS Overvoltage Protection |
| Features | - ASUS SafeSlot Core |
| Features | - ASUS Stainless-Steel Back I/O |
| Features | ASUS Q-Design |
| Features | - ASUS Q-DIMM |
| Features | - ASUS Q-Slot |
| Features | ASUS Thermal Solution |
| Features | - Aluminum heatsink design |
| Features | ASUS Lighting Control |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| I/O | 2 x USB 2.0 |
| I/O | 1 x PS/2 keyboard/mouse combo port(s) |
| I/O | 1 x D-Sub |
| I/O | 1 x HDMI |
| I/O | 1 x LAN (RJ45) port(s) |
| I/O | 4 x USB 3.2 Gen 1 (blue) Type-A |
| I/O | 3 x Audio jack(s) |
| I/O | Back |
| I/O | 1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A) |
| I/O | 1 x DVI-D |
| Storage | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : ,Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports,AMD A520 Chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280 (PCIE 3.0 x4 and SATA mo |
| Connectors | 1 x SPI TPM Header |
| Connectors | 1 x CPU Fan connector(s) |
| Connectors | 1 x Chassis Fan connector(s) |
| Connectors | 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) |
| Connectors | 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
| Connectors | 4 x SATA 6Gb/s connector(s) |
| Connectors | 1 x S/PDIF out header(s) |
| Connectors | 1 x 24-pin EATX Power connector(s) |
| Connectors | 1 x 8-pin EATX 12V Power connectors |
| Connectors | 1 x Front panel audio connector(s) (AAFP) |
| Connectors | 1 x Clear CMOS jumper(s) |
| Connectors | 1 x System panel connector |
| Connectors | 1 x COM port header |
| Connectors | 1 x Speaker connector |
| Connectors | 1 x M.2 Socket 3 with M key, type 2242/ 2260/ 2280 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| USB | 1 x USB 3.2 Gen 2 port(s) |
| USB | 4 x USB 2.0 port(s)(4 x Type-A) |
| USB | Rear USB Port ( Total 7 ) |
| USB | Front USB Port ( Total 6 ) |
| USB | 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) |
| USB | 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) |
| USB | 2 x USB 2.0 port(s)(2 x Type-A) |
| Тегло | 0.00кг |

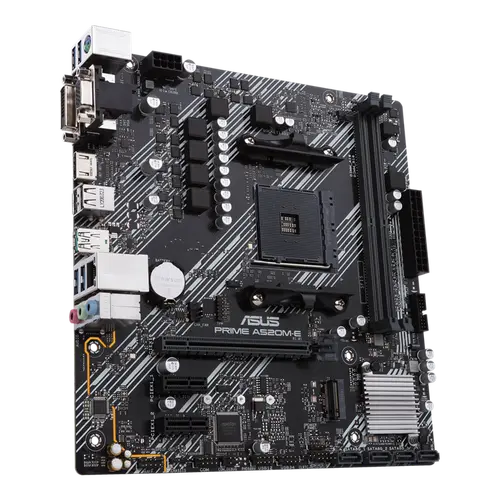

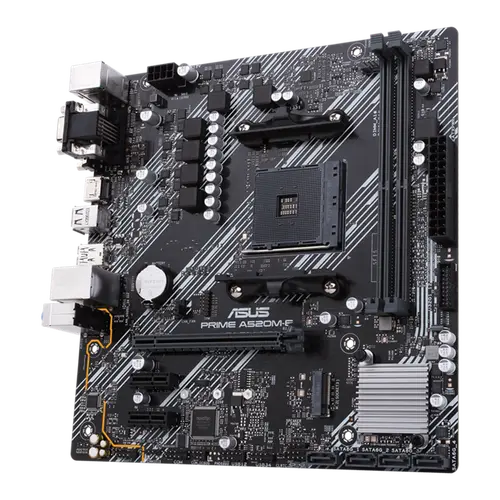

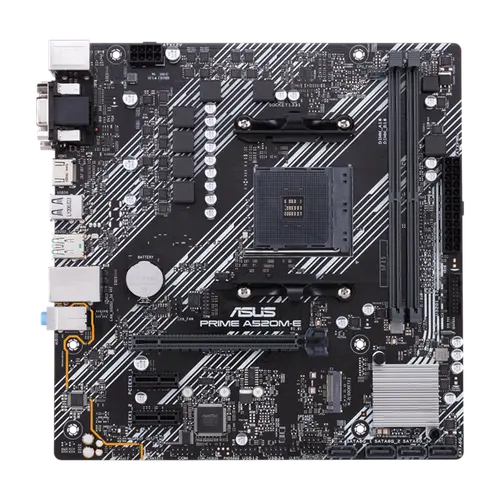

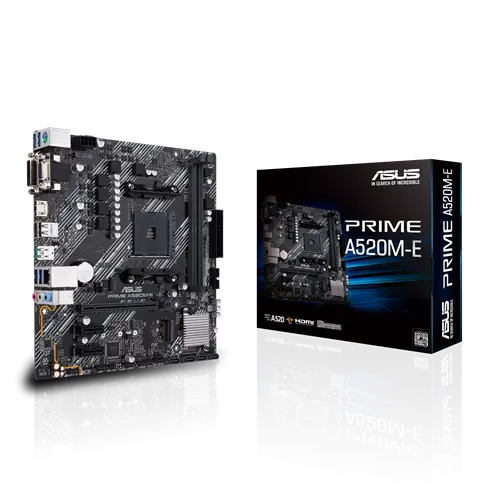

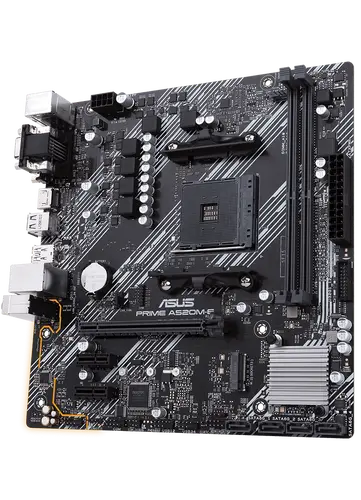

Дънна платка ASUS PRIME A520M-E / AM4 – Надеждност и Производителност
Надградете вашия компютър с ASUS PRIME A520M-E, micro-ATX дънна платка за процесори AMD Ryzen™ AM4. Проектирана за стабилност и ефективност, тя предлага плавен гейминг, мултитаскинг и продуктивност на достъпна цена.
Основни Предимства:
- Оптимизирана за AMD Ryzen™: Поддържа 3-то поколение Ryzen™ за мощна производителност.
- Бърза свързаност: PCIe 3.0, USB 3.2 Gen 1 и M.2 за супер бързо съхранение и трансфер.
- Подобрено охлаждане: Fan Xpert 2+ осигурява оптимална температурна регулация.
- Стабилно захранване: Висококачествени компоненти и DIGI+ VRM за ефективност.
- Лесна настройка: Удобен UEFI BIOS за лесно управление.
Технически Спецификации:
- Сокет: AM4 (поддръжка на Ryzen™ 5000, 4000, 3000 серии)
- Чипсет: AMD A520
- Памет: 2x DDR4 (до 64GB, 4600MHz OC)
- Разширение: 1x PCIe 3.0 x16, 1x M.2 (NVMe/SATA), 4x SATA 6Gb/s
- Връзки: Realtek® Gigabit LAN, HDMI/D-Sub/DVI-D, USB 3.2 Gen 1
Подходяща за: Бюджетни геймъри, домашни офси и ежедневни задачи с AMD Ryzen™.
