- MSI
- Няма Наличност
Няма Наличност
* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас
CPU's supported
Supports 12th Gen Intel® Core™ Processors 1
Processor socket LGA1700
Memory type
4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1 / 2
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1 / 2
Expansion Slots
2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 4.0 x16
PCI_E3 slot (From B660 Chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From B660 chipset)
Storage
4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset)1
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors

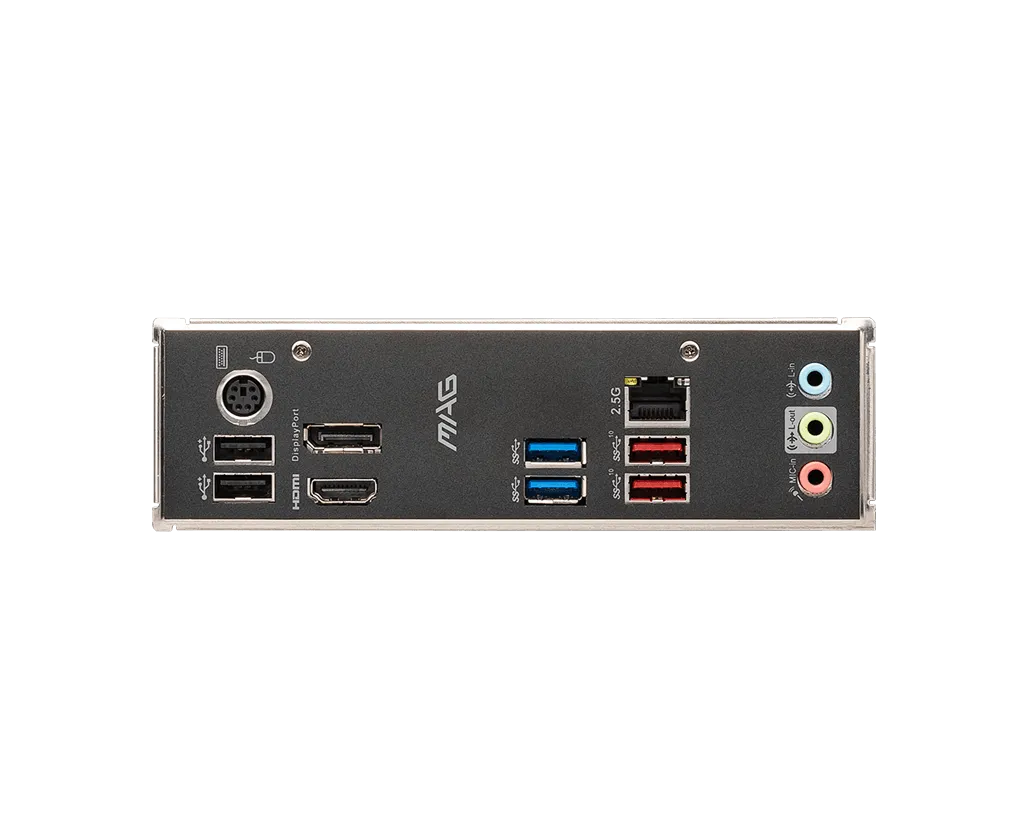

I/O
Keyboard / Mouse
DisplayPort
2.5G LAN
Audio Connectors
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Serial port
1x Tuning Controller connector
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Form Factor
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1 / 2
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1 / 2
CPU's supported
Supports 12th Gen Intel® Core™ Processors 1
Processor socket LGA1700
Expansion Slots
2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 4.0 x16
PCI_E3 slot (From B660 Chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From B660 chipset)
Storage
4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 Chipset)1
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
Memory type
4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
I/O
Keyboard / Mouse
DisplayPort
2.5G LAN
Audio Connectors
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Serial port
1x Tuning Controller connector
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Form Factor
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
| Атрибут | Стойност |
|---|---|
| Chipset | Intel® B660 Chipset |
| Warranty | 24 months hardware, 12 months battery |
| LAN | 1x Realtek® 8125BG 2.5Gbps LAN controller |
| LAN | 1x Realtek® 8125BG 2.5Gbps LAN controller |
| Тегло | 0.00кг |
