CPU's supported
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors1
Supports Socket AM4
Expansion Slots
Supports PCIe 4.0 / PCIe 3.0 specification
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
1x PCIe x16 slot (From processor)
PCI_E1 supports PCIe 4.0/ 3.0 x16
1x PCIe x16 slot (From X570 chipset)
PCI_E3 supports PCIe 4.0/ 3.0 x4
2x PCIe 3.0 x1 slots (From X570 chipset)
Storage
6x SATA 6Gb/s ports (from AMD X570 Chipset)
2x M.2 slots (Key M)
Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
Supports up to SATA 6Gb/s
M2_1 slot (from Processor)
Support 2280/22110 storage devices
M2_2 slot (from AMD X570 Chipset)
Supports 2242/ 2260/ 2280 storage devices
Memory type
4x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
Max overclocking frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 4000 MHz
2DPC 1R Max speed up to 4266 MHz
2DPC 2R Max speed up to 3600 MHz
For Ryzen™ 5000 Series & 3000 Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 3866 MHz
2DPC 1R Max speed up to 4000 MHz
2DPC 2R Max speed up to 3600 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

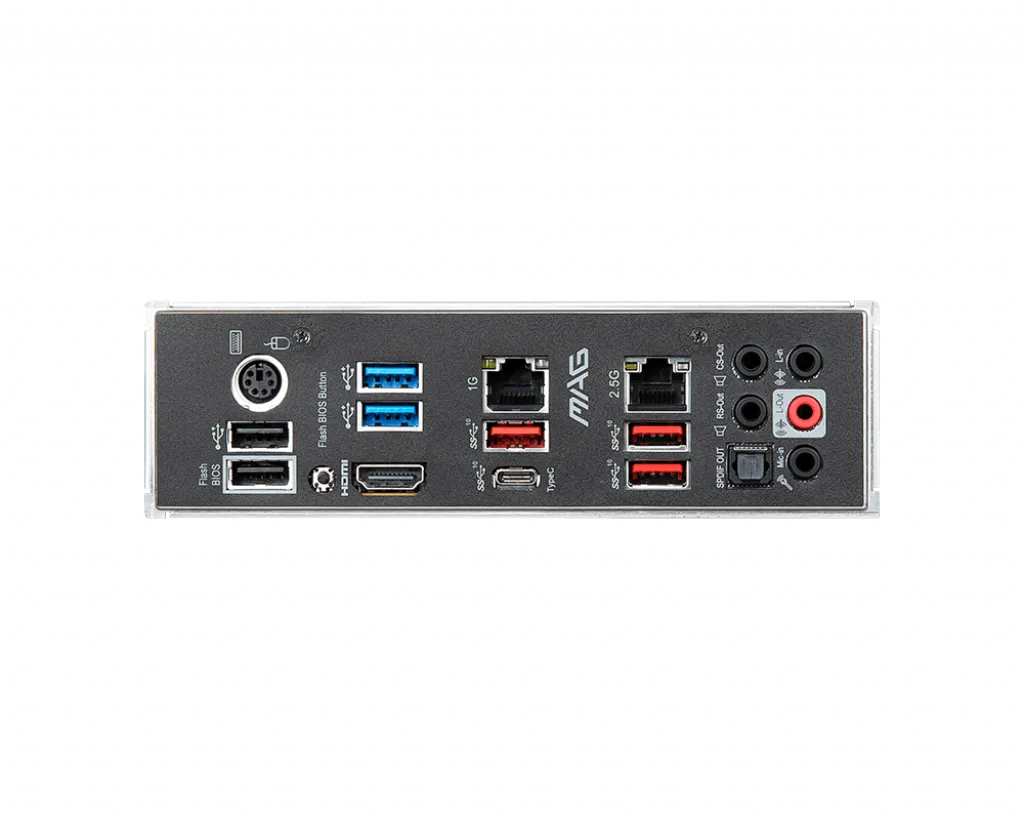

I/O
PS/2 Mouse / Keyboard
USB 3.2 Gen 1 5Gbps (Type-A)
Gigabit LAN Port
2.5G LAN Port
HD Audio Connectors
USB 2.0 Port
Flash BIOS Button
HDMI 2.1 Port
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
Optical S/PDIF OUT
Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector
1x Chassis Intrusion connector
Audio
Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Realtek® 8125B 2.5Gbps LAN Controller
1x Realtek® RTL8111H 1Gbps LAN Controller
Form Factor
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
CPU's supported
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors1
Supports Socket AM4
Expansion Slots
Supports PCIe 4.0 / PCIe 3.0 specification
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
1x PCIe x16 slot (From processor)
PCI_E1 supports PCIe 4.0/ 3.0 x16
1x PCIe x16 slot (From X570 chipset)
PCI_E3 supports PCIe 4.0/ 3.0 x4
2x PCIe 3.0 x1 slots (From X570 chipset)
Storage
6x SATA 6Gb/s ports (from AMD X570 Chipset)
2x M.2 slots (Key M)
Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors
Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor
Supports up to SATA 6Gb/s
M2_1 slot (from Processor)
Support 2280/22110 storage devices
M2_2 slot (from AMD X570 Chipset)
Supports 2242/ 2260/ 2280 storage devices
Memory type
4x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1
Max overclocking frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 4000 MHz
2DPC 1R Max speed up to 4266 MHz
2DPC 2R Max speed up to 3600 MHz
For Ryzen™ 5000 Series & 3000 Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 3866 MHz
2DPC 1R Max speed up to 4000 MHz
2DPC 2R Max speed up to 3600 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
I/O
PS/2 Mouse / Keyboard
USB 3.2 Gen 1 5Gbps (Type-A)
Gigabit LAN Port
2.5G LAN Port
HD Audio Connectors
USB 2.0 Port
Flash BIOS Button
HDMI 2.1 Port
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
Optical S/PDIF OUT
Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector
1x Chassis Intrusion connector
Audio
Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Realtek® 8125B 2.5Gbps LAN Controller
1x Realtek® RTL8111H 1Gbps LAN Controller
Form Factor
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
| Атрибут | Стойност |
|---|---|
| Chipset | AMD X570 Chipset |
| OS | Support for Windows® 10 64-bit |
| Warranty | 36 Months |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz 1 2 |
| Тегло | 0.00кг |
