CPU's supported
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1200
Memory type
4x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Graphics
1x HDMI 1.4 with HDR port, supports a maximum 4096x2160 30Hz 12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1
Expansion Slots
2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 slot (From Z590 chipset)
Supports up to PCIe 3.0 x4 speed
3x PCIe 3.0 x1 slots (From Z590 Chipset)
1x M.2 slot with E key for WiFi module only (M2_3)
Storage
4x SATA 6Gb/s ports (From Z590 Chipset)
2x M.2 slots (Key M)
M2_1 slot (From Processor)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from Z590 chipset)
Support up to PCIe 3.0x4
Support up to SATA 6Gb/s
Support 2242/ 2260/ 2280 storage devices

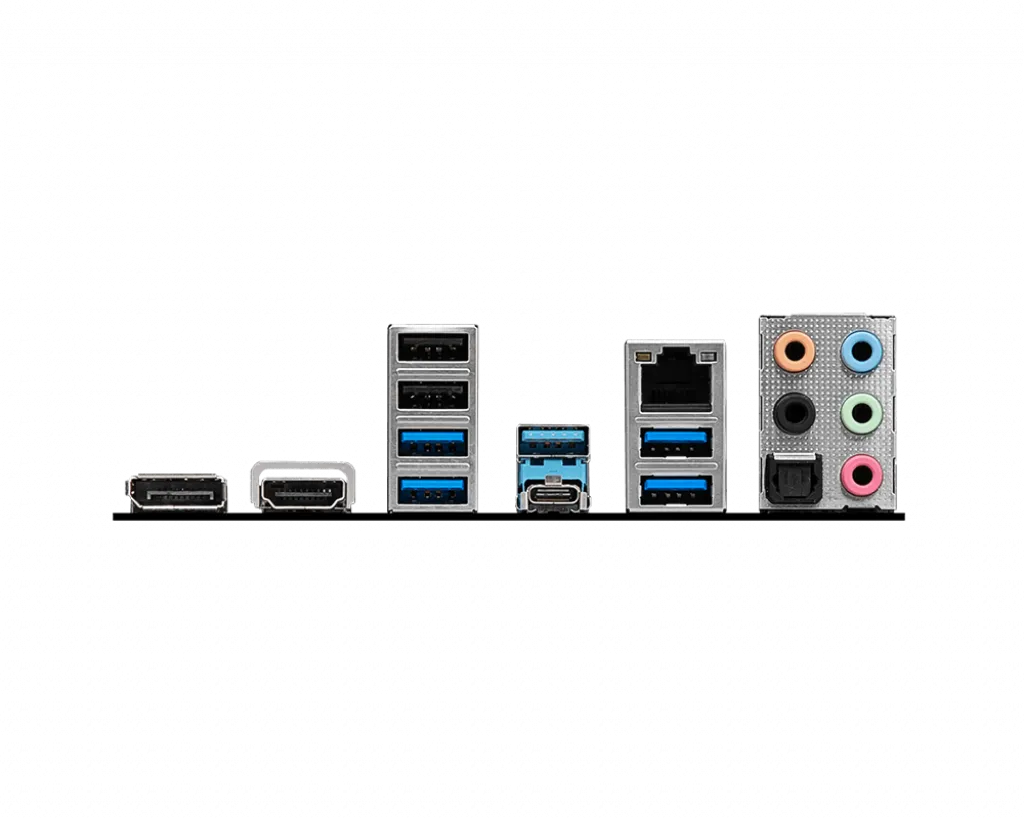

I/O
DisplayPort
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 1 5Gbps Type-A
Optical S/PDIF Out
Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x M.2 slot (E-Key)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector
Audio
Realtek®ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Form Factor
ATX Form Factor
12 x 9.6 in. (30.5 cm x 24.4 cm)
Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.
Graphics
1x HDMI 1.4 with HDR port, supports a maximum 4096x2160 30Hz 12
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1
CPU's supported
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1200
Expansion Slots
2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 slot (From Z590 chipset)
Supports up to PCIe 3.0 x4 speed
3x PCIe 3.0 x1 slots (From Z590 Chipset)
1x M.2 slot with E key for WiFi module only (M2_3)
Storage
4x SATA 6Gb/s ports (From Z590 Chipset)
2x M.2 slots (Key M)
M2_1 slot (From Processor)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from Z590 chipset)
Support up to PCIe 3.0x4
Support up to SATA 6Gb/s
Support 2242/ 2260/ 2280 storage devices
Memory type
4x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
I/O
DisplayPort
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 1 5Gbps Type-A
Optical S/PDIF Out
Connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x M.2 slot (E-Key)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector
Audio
Realtek®ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Form Factor
ATX Form Factor
12 x 9.6 in. (30.5 cm x 24.4 cm)
| Атрибут | Стойност |
|---|---|
| Chipset | Intel® Z590 Chipset |
| OS | Support for Windows® 10 64-bit |
| Warranty | 36 Months |
| LAN | 1x Intel® KTI225V 2.5Gbps LAN controller |
| LAN | 1x Intel® KTI225V 2.5Gbps LAN controller |
| Тегло | 0.00кг |
